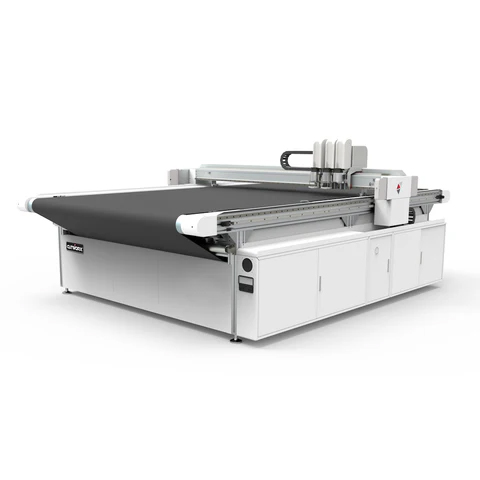

Apex 2516 Plus 3-Head Cutting System

GM-CWT-2516P

Ea. (1)


The Apex Plus series of digital flatbed cutters are designed for a variety of finishing requirements for Graphics, Packaging, Textile, & Upholstery Markets and more. Increase your productivity and profitability by having an in house multi-functional precision high speed digital cutting solution that can cut, crease, decal cut and oscillate cut materials. The Apex series is designed with over 27 years of experience engineering cutting tables.

• Multiple Table Size Solutions to match application
• True 3 tool positions available with all tool combinations
• Tool Head Modules controlled independently
POA

Description

Description

Performance and Reliability

  • Multiple Table Size Solutions to match application
  • True 3 tool positions available with all tool combinations
  • Tool Head Modules controlled independently
  • Optical Auto Tool calibration
  • Automatic tool changer
  • Variable Vacuum Zone control providing focused material hold down strength & energy savings
  • Aircraft aluminum table for precision and accuracy
  • Offering both static and conveyor table solutions
  • Modular build on-site for unique installs
  • Auto sheet feeding system for increased production available
  • Service, Support, Parts & Supplies provided by and in stock at CWT Worktools USA, Irving Texas



Productivity You Can Depend On

  • INCREASE capacity of output & take on more jobs
  • IMPROVE speed and accuracy of cutting
  • CONFIDENCE in repeatable output day after day
  • DECREASE labor costs
  • REMOVE the bottlenecks in finishing
  • DESIGNED with over 27 years in engineering cutting tables



Materials APEX flatbed cutters can cut and finish

  • Acoustic Panel products
  • Acrylics, Plexi, Lexan
  • Aluminum & Aluminum Composites
  • Banner stock
  • Corrugated boards (paper and plastic)
  • Foam boards, foam, Gator foam, Poster board
  • Honeycomb – Recycled board
  • KT Board
  • MDF
  • Papers, card stocks
  • PSA Vinyl
  • PVC/Sintra, PET, Styrene
  • Reflective Vinyl
  • Textiles, Fabric



Router and Tool Options

  • 350w Air Cooled Spindle/Router (60k rpm)
  • 1.8kw Water Cooled Spindle/Router (60k rpm)
  • Creasing Tool (CT)
  • Driven Rotary Tool (DRT)
  • Electronic Oscillating Tool (EOT)
  • Electronic Oscillating Tool 4 (EOT-4)
  • Kiss Cut Tool (KCT)
  • Perforating Tool (PT)
  • Pneumatic Oscillating Tool (POT)
  • Pneumatic Rotary Tool (PRT)
  • Universal Cutting Tool (UCT)
  • Variable V-Cut Tool (V-VCT)
  • V-Cut Tool (VCT)



Specifications

Specifications

Max Cutting Speed: 1500mm/s
Cutting Accuracy: 59 in/s 0.1mm
Max. Cutting Thickness: 50 mm 1.96 ins
Data Format: DXF, HPGL, PDF
Interface: Serial Port
Media: Vacuum System
Pump Power: 220v 3 Phase 60 -200 Amps balanced 220V
Power: Single Phase 20 Amps
