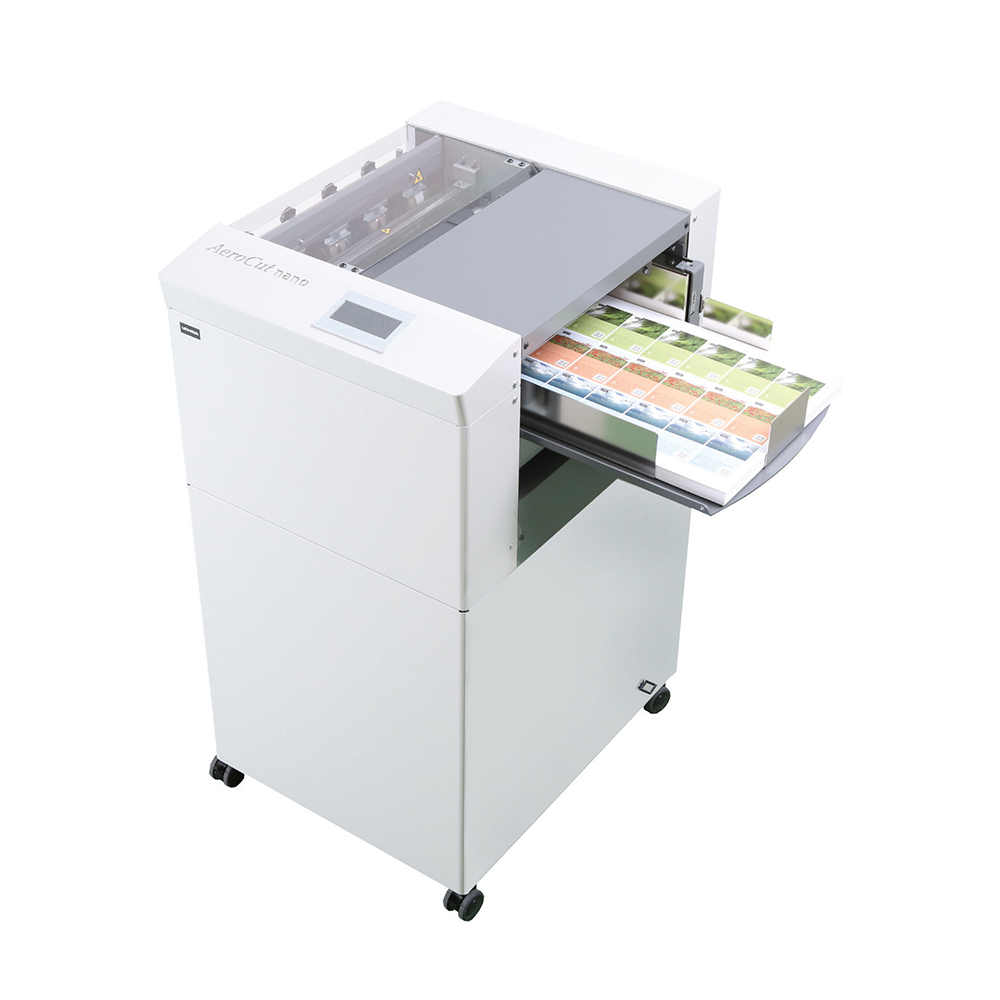

Aerocut Nano Air feed Slitter and Cutter

GM-MBM-AEROCUTNANO

Ea. (1)

AEROCUT NANO is the card cutter that can take up to 350gsm stock. It feeds, slits and cross cuts to finish prints into business cards, post cards, flyers and more.

• Intuitive touch screen display
• Stable air suction feed system
• 16 pre-programmed jobs and 40 customized jobs
• Paper weight - 120-350 gsm, depending on paper quality
POA

Description

Description



The AeroCut Nano features an intuitive touch-screen, air suction feeding, and unique InstaSet bar for fixed slitter position accuracy and ease of setup.  Two single slitter blades and two double slitter blades. These slitter blocks can be easily adjusted manually and fixed with InstaSet bar – a patented mechanism that intuitively snaps onto the machine to change the job with keeping extreme accuracy.

•  Feeding system - upper belt air suction feed
•  Cutmark registration
•  Basic functions - slit, cross cut





Specifications

Specifications

Sheet Size: 8.25" to 13" x 19"
Stock Weights: 120-350 gsm
Slitter: 4 units (6 blades: 2 margin blades & 4 gutter blades)
Creaser: N/A
Perforation: N/A Scoring - N/A
Feeder: Air-Feed / top feed
Production Speed: 22 sheets or 126 business cards / min.
Template Imposition Software: Lytrod VisionFocus
Preset Jobs: 16 preset + 40 customerized jobs in memory
Electrical: Single phase 100- 240VAC, 50/60Hz (Standard 110V)
Machine Dimensions: 25" x 22" x 37.5"
Shipping Weight: 155 lbs.
