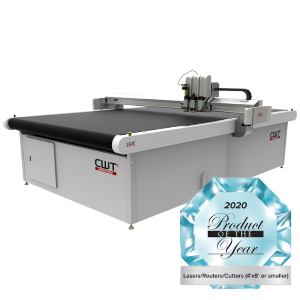

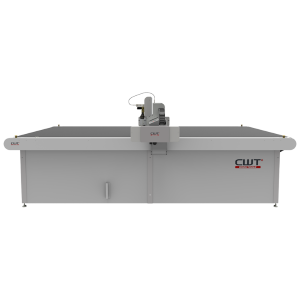

Apex 2513 Digital Cutting System

GM-CWT-2513

Ea. (1)

The Apex series of digital die cutters are designed for a variety of finishing requirements. Increase productivity and profitability by having an in-house, multi-functional precision high speed digital cutting solution that can cut, crease, decal cut, oscilate cut materials.

• Available in 3 standard sizes and custom sizes
• 2513 Series: 51" x 98" cutting area
• True 3 tool positions available
• Optical Auto Tool calibration
POA

Description

Description

The Apex series of digital flatbed cutters are designed for a variety of finishing requirements for Graphics, Packaging, Textile, & Upholstery Markets and more.  Increase your productivity and profitability by having an in house multi-functional precision high speed digital cutting solution that can cut, crease, decal cut, oscillate cut materials.  The Apex series is designed with over 27 years of experience engineering cutting tables.

Performance and Reliability
  • Multiple Table Size Solutions to match application
  • True 3 tool positions available with all tool combinations
  • Tool Head Modules controlled independently
  • Optical Auto Tool calibration
  • Automatic tool changing available for Apex Plus
  • Variable Vacuum Zone control providing focused material hold down strength & energy savings
  • Aircraft aluminum table for precision and accuracy
  • Offering both static and conveyor table solutions
  • Conveyor systems include Roll feed holder
  • Auto sheet feeding system for increased production available
  • Solid/whole body construction table bases that ship fully constructed
  • Service, Support, Parts & Supplies provided by and in stock at CWT Worktools USA, Irving Texas
Productivity You Can Depend On
  • INCREASE capacity of output & take on more jobs
  • IMPROVE speed and accuracy of cutting
  • CONFIDENCE in repeatable output day after day
  • DECREASE labor costs
  • REMOVE the bottlenecks in finishing
  • DESIGNED with over 27 years in engineering cutting tables
Materials APEX flatbed cutters can cut and finish
  • Acoustic Panel products
  • Acrylics, Plexi, Lexan
  • Aluminum & Aluminum Composites
  • Banner stock
  • Corrugated boards (paper and plastic)
  • Foam boards, foam, Gator foam, Poster board
  • Honeycomb – Recycled board
  • KT Board
  • MDF
  • Papers, card stocks
  • PSA Vinyl
  • PVC/Sintra, PET, Styrene
  • Reflective Vinyl
  • Textiles, Fabric

Specifications

Specifications

Router and Tool Options
  • 350w Air Cooled Spindle/Router (60k rpm)
  • Creasing Tool (CT)
  • Driven Rotary Tool (DRT)
  • Electronic Oscillating Tool (EOT)
  • Electronic Oscillating Tool 4 (EOT-4)
  • Kiss Cut Tool (KCT)
  • Perforating Tool (PT)
  • Pneumatic Oscillating Tool (POT)
  • Pneumatic Rotary Tool (PRT)
  • Universal Cutting Tool (UCT)
  • Variable V-Cut Tool (V-VCT)
  • V-Cut Tool (VCT)
Apex Sizes
  • 1713 (51”x 66” cutting area)
  • 2513 (51” x 98” cutting area)
  • 2517 (66” x 98” cutting area)
  • Apex Custom Sizes Available
