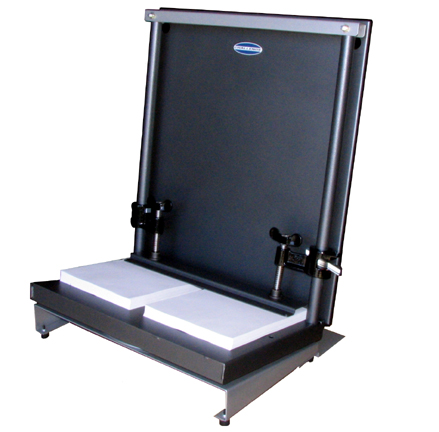

Challenge Handy Padder

GM-CMC-HANDYPADDER

Ea. (1)

The Challenge HANDY PADDER design provides a portable and compact table top padding device for the right price.

• Easy 1-2-3 Operation
• Large capacity
• Self-aligning gravity load
• Table-top design

POA

Description

Description

  • Easy Operation
  • Large Capacity
  • Self-Aligning Gravity Load
  • Fast Lock & Release Clamping
  • Table-Top Design
  • Superior Quality - All Steel Construction
  • Stable - Rear Support To Prevent Tipping
  • Self Locking Swivel Table
  • Portable



Portable/Compact & Economical

Put away your bricks, blocks, and boards. The Challenge Handy-Padder design provides a portable and compact table-top padding device for the right price. The convenient turn style base of the Handy-Padder allows the operator to load, clamp and pad from a single position.



Stabilized Base

The Handy-Padder has an extended sheet metal stabilizer designed to eliminate tipping problems when loaded with stock.



Simple 1-2-3 Operation

Ease of operations turns padding service into a value-added profit center.



1- Lock & Load

Lock the removable plate in place. The 8° table slant allows gravity to do all the work of aligning stock and keeping it square. Load up to 8,000 8-1/2" x 11" sheets of 20# bond - even more with smaller sheets.



2- Clamp

After loading is complete, aligned stacks are clamped in just seconds. Place the clamping bar on top of your paper, slide the self-locking, quick-release clamps down to the bar and tighten the screws.



3 - Turn & Pad

Turn the table around and remove the plate for complete access to your padding.



Products Working for You

The Handy-Padder is just one in the line of Challenge products engineered to make your job easier.



Specifications

Specifications

Maximum Lift Width 17-3/4" / 45 cm
Maximum Lift Height 16" / 40.6 cm
Lift Depth 4" to 13+" / 10 cm to 33+ cm
Sample Capacity 8,000 8-1/2 x 11" 20# bond



DIMENSIONS

Overall Base Area 20-15/16" / 53.2 cm
Overall Height 26-3/16" / 66.5 cm
Overall Length 17-1/32" / 43.3 cm
Net Weight (approximate) 50 lbs / 22.7 kg
Shipping Weight (approximate) 55 lbs / 25 kg
