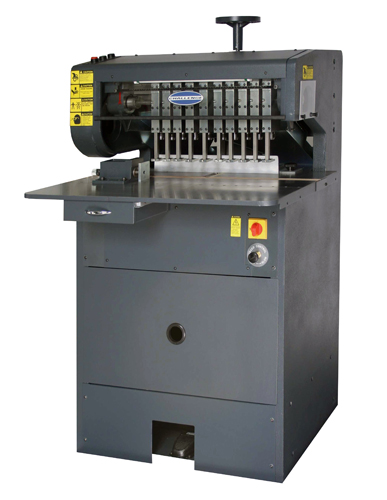

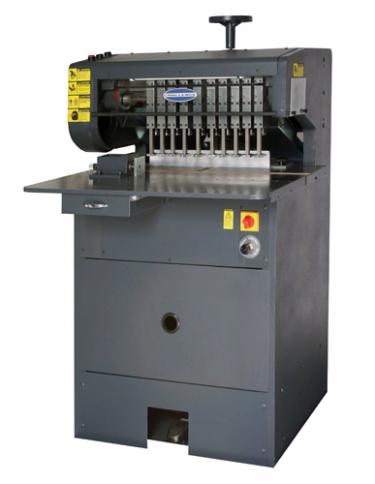

Challenge Multi Spindle Drill

GM-CMC-MS_10A

Item Availability (unit) Ea. (1)

High production and heavy-duty drilling of up to 10 holes in a single stroke makes the MS-10 the ultimate drilling machine.

• Drills Up To 10 Holes in One Stroke
• Maximum Drill Bit Diameter 1/2"
• 2-1/2" Drilling Capacity
• Powerful Hydraulic Operation

POA

Qty:

Description

• High Production Multi-Hole Drilling
• Drills Up To 10 Holes in One Stroke
• Maximum Drill Bit Diameter 1/2"
• 2-1/2" Drilling Capacity
• Powerful Hydraulic Operation
• Easy Head Adjustment
• Variable Speed Stroke Control
• Automatic Paper Chip Removal
• Rugged Cast Iron Construction
• Flexible Side Guide Adjustments
• Multi-Splined Drive Shaft
• Backgauge Adjustments
• Lighted Work Surface

Specifications

Maximum Number of Drill Heads	10 Heads
Drill Sizes Available** (2" capacity)	1/8" to 1/2" / 3 to 13 mm
Drill Sizes Available (2-1/2" capacity)	1/4" to 1/2" / 6 to 13 mm
Center to Center Distance Maximum	21" / 53 cm
Center to Center Distance Minimum***	1-1/4" / 3.2 cm
Minimum Distance Between Holes w/ Adj. Stops	3/8" / 9.5 cm
Minimum Distance Between Holes w/ Fixed Gauges	1/4" / 6 mm
Maximum Drilling Capacity	2-1/2" / 6.35 cm
Strokes per Minute (adjustable)	18 to 26
Backgauge Adjustment	0 to 9" / 0 to 23 cm
Vertical Adjustment of Individual Heads	1/4" / 6 mm

DIMENSIONS

Table Size	24" x 36" / 61 x 91 cm
Table Height	38" / 96.5 cm
Overall Height	60" / 152 cm
Floor Space Needed	35" x 40" / 89 x 102 cm
Net Weight (approximate)	1350 lbs / 675 kg
Shipping Weight (approximate)	1660 lbs / 830 kg

ELECTRICAL

Standard -

3 Phase, 60 Hz, AC. Pump: 3/4 HP. Spindle Motor: 3 HP.
208 Volts, 14 Amps (service size 20 Amps) or
230 Volts, 12.8 Amps (service size 20 Amps) or
460 Volts, 6.6 Amps (service size 15 Amps)

Optional -

1 Phase, 60 Hz, AC. Pump: 3/4 HP. Spindle Motor: 3 HP
208 Volts, 26.5 Amps (service size 40 Amps) or
230 Volts, 24.2 Amps (service size 40 Amps)

** Special large hole drilling (up to 1-3/4" in diameter) is possible with conversion kit.
*** Three hole drilling heads are available for drilling 3 holes in 1" centers.
