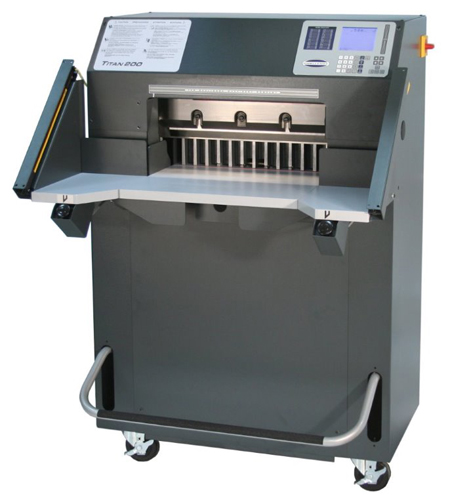

Challenge Titan 200TC Cutter

GM-CMC-TITAN200TC

Ea. (1)

The Challenge Titan 200 meets the toughest safety standards in the industry. Equipped with light safety curtains, enclosed rear table, two-hand cut buttons and knife safety latch. UL and CE Certified. Made in the USA.

• Fully hydraulic cutting and clamping
• Solid cast iron and steel construction
• Bright red LED line light easy to see and needs no replacement
• Solid 1" thick tool grade aluminum table
POA

Description

Description

With today’s digital print market placing great demands on your business, some decisions can be difficult. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s diverse needs, but there are so many choices! When it comes to choosing your next paper cutter, this one is easy…step up to a Titan 200!

The Titan 200 continues the Challenge excellence of innovation and strength we’ve become famous for since 1870. The Titan 200 is based on a solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.

The intuitive menu-driven controller allows variable mode data entry with up to 99 jobs / 9,801 total cut position storage. The optional electronic clamp pressure control minimizes waste. Machine self-diagnostics and error indication walks the operator through any potential difficulties.

The Titan 200 meets the toughest safety standards in the industry today. Light-safety curtains, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications.

Proudly manufactured in the USA, The Titan 200 continues our legacy of providing…assurance you made the right decision.

  • Fully hydraulic cutting and clamping
  • Solid cast iron and steel construction ensure years of trouble-free operation
  • Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
  • Bright red LED line light is easy to see and needs no future replacement
  • Optional electronic clamp pressure adjustment
  • Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage

Specifications

Specifications

Maximum Cutting Width: 20" / 50.8cm
Minimum Cut: without false clamp plate 1/2" / 13mm
                          with false clamp plate 1-7/8" / 48mm
Maximum Cut Depth: 20" / 50.8cm
Clamp Opening: without false clamp plate 3-1/4" / 8cm
                             with false clamp plate 3" / 7.6cm
Clamping Method Hydraulic and Manual
Backgauge Control Power



DIMENSIONS

Table Space:  in front of knife 15-1/4" / 39cm
                         behind knife 20" / 51cm
Overall Height 53" / 135cm
Overall Width 36" / 91cm
Overall Length 49-5/8" / 126cm
Net Weight (approximate) 795 lbs / 361 kg
Shipping Weight (approximate) 920 lbs / 418 kg
Electrical 230V, 12 Amps, 1-1/2HP 1 Phase, 60Hz, AC
