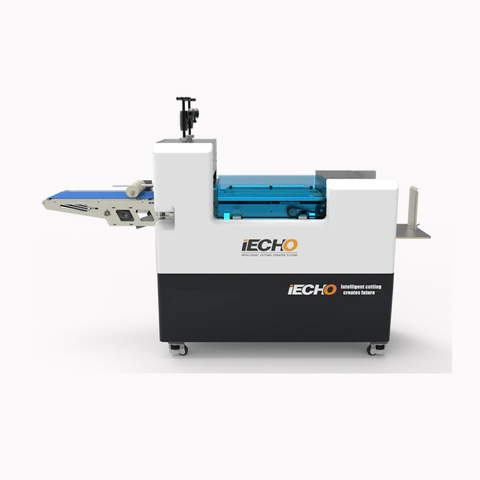

Cutworx MCT Rotary Die Cutter

GM-CWT-MCT

Ea. (1)
The MCT Rotary Die Cutter, an innovative solution for small batch and multiple repeat production, excels in creating self-adhesive stickers, wine labels, garment hangtags, playing cards, and more.

• Small footprint saves space
• Accurate and fast feeding
• Safer blade changing
POA

Description

Description

With a small floor space and easy operation, the MCT series Rotary Die Cutter is an intelligent die-cutting machine for small batch and multiple repeat production, widely used for self-adhesive stickers, wine labels, garment hangtags, playing cards and other products in printing & packaging, clothing and electronics industries. With a fish-scale feeding platform, automatic deflection and precise alignment, the sheet passes quickly through the high-strength rolls equipped with magnetic blades and completes a variety of die-cutting processes such as full-cutting, half-cutting, perforating, creasing and easy-tear lines (toothed lines).

Specifications

Specifications

Size: 2420mm x 840mm x 1650mm
Weight: 1000kg
Max paper size: 508mm x 355mm
Min paper size: 280mm x 210mm
Max die plate size: 350mm x 500mm
Min die plate size: 280mm x 210mm
Die plate thickness: 0.96mm
Die cutting accuracy: <0.2mm
Max die cutting speed: 5000 sheets/hour
Max indentation thickness: 0.2mm
Paper weight: 70-400g
Loading table capacity: 1200 sheets
Loading table capacity thickness: 250mm
Min width of waste discharge: 4mm
Rated voltage: 220v
Power rating: 6.5kw
Mold type: Rotary die
Atmospheric pressure: 0.6Mpa
