Eagle FiberMark F1 Laser Marking Machine

GM-EAG-FMF1

Ea. (1)

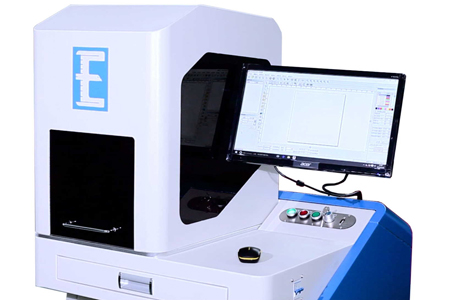

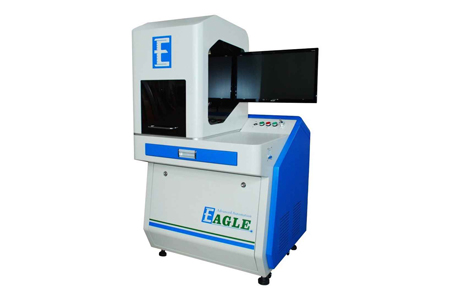

The FiberMark F1 laser marking machine, which is an all-in-one, plug and play, and extremely fast galvo marking system, offers an economical solution for fast and high quality laser marking of metal, plastics and more. Eagle laser machines are the most robust, accurate, and reliable on the market.

• All-In-One Design

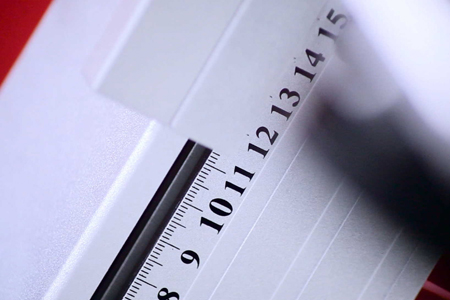

• Adjustable Marking Area

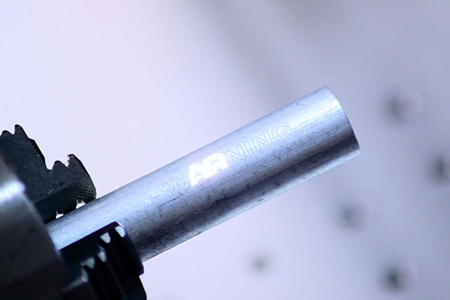

• Rotary Unit
POA

Specifications

Specifications

Working Area*: Standard 4.3″ x 4.3″ (110 x 110mm), optional 3″ x 3″ (75 x 75mm), 7″ x 7″ (175 x 175mm) or 8″ x 8″ (200 x 200mm). Top cover can be removed to fit big or long work pieces.

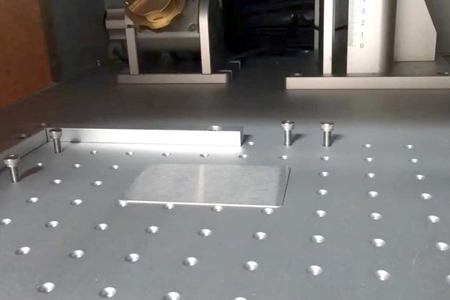

Working Table: Aluminum plate table with an array of threaded holes for aligning or fixing work pieces.
Laser Source: Fiber Laser
Laser Power*: 30W / 50W
Software: EzCAD CAD/CAM, compatible with Windows 7/8/10.
Machine/PC Connection: Integrated industrial PC.
Control Interface: Direct control in software.
Motion System: Extremely fast galvo motion system.
Accessories: Rotary included.
Electrical Requirement: 220V/50Hz, single phase, up to 0.6kW.
Size: 35.4″ x 35.4″ x 59″ (900 x 900 x 1500mm)
Net Weight: 350lb (160Kg)
