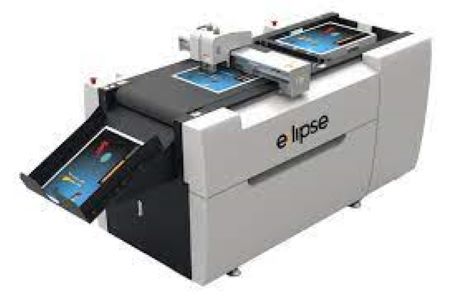

Eclipse 1523 Digital Die Cutter

GM-CWT-EC1523

Ea. (1)

The Eclipse die free flatbed cutting solution is designed for the Printing, Sign and Packaging industries. It is a cost-effective solution for sample making and short-run production of adhesive sheets, business cards, invitations, labels, small packaging, tags and more.

• Decal cut, oscillate, cut, kiss cut, and crease
• Handles sheets up to 15.5" x 26.5"
• Cuts foam core, PVC, cardboard and more
• 2 knife positions, 1 creasing tool, 1 electronic oscillating tool
• CCD Camera registration
POA

Description

Description

Overview

The Eclipse die free flatbed cutting solution is designed for the Printing, Sign and Packaging industries.  It is a cost-effective solution for sample making and short-run production of adhesive sheets, business cards, invitations, labels, small packaging, tags and more.  The Eclipse Plus can oscillate, cut, kiss cut, decal cut and crease a crariety of paper and card stock up to 6mm thick andup to B2+ sheet size.

The Eclipse is integrated with an oscillating tool, cutting tool, creasing wheel tool and plotting pen.  Import DXF, PLT, or HP/GL files into the Eclipse controller for processing and cutting. No physical cutting dies are required.  Furthermore, the automatic sheet feeding system is designed ot load and cut without hte need of an operator.

Features and Tools

The Eclipse features cutting and creasing, precise automatic positioning system, high-definition CCD camera, automatic feeder and an optional bar code management system. Tools include 2 knife positions, 1 creasing tool, 1 electirc oscillating tool (EOT) and CCD camera registration.

Applications

The Eclipse can be used with paper, foam board, PSA vinyl, reflective films, cardboard, corrugated board, ABS, Magnetic, card stock board, grey board

Specifications

Specifications

Cutting Area: 15.5

Floor Work Area: 93" x 36" x 46"

Cutting Tools: Oscillating tool, universal cutting tool, creasing wheel, kiss cut

Cutting Materials: Paper, foam board, PSA vinyl, reflective films, cardboard, corrugated, ABS, Magnetic, card stock, grey board

Cutting Thickness: up to 6mm

Media Hold: Vacuum motor / conveyor

Max Cutting Speed: 39" /s

Cutting Accuracy: +/- .004"

Data Format: PLT, DXF, HP/GL

Voltage: Single Phase 208/220V

Power: 30 Amp

Environment: 50-80F, 20-80% humidity



Video

Video

Literature

Literature
