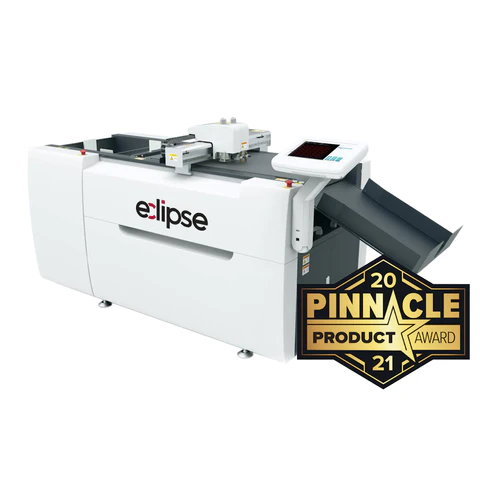

Eclipse 2029 Digital Die Cutting Machine

GM-CWT-ECLIPSE_M

Ea. (1)


The Eclipse 2029 Digital Die Cutter is a die free flatbed cutting solution designed for the printing, packaging, and sign
industries. It is a cost-effective solution for sample making, short-run production of adhesive sheets, business cards,
specially shaped cards, invitations, labels, small packaging, tags, and more.

• Up to 4 tools on a single sheet
• 4kw vacuum power absorption
• Oscillating tool for up to 6mm thick materials
POA

Description

Description

No Cutting Dies
The Eclipse is integrated with a oscillating tool, cutting tool, creasing wheel tool and plotting pen for die free cutting. Process materials up to 6mm thick.

Combination Cutting and Creasing Functions
Standard cutting & creasing features include Decal Cut, Kiss Cut, Creasing, and oscillating knife cutting of dense stock.
Automatic Positioning System

The high-definition CCD camera automatically and positions materials for precise cutting.

Automatic Feeding System
Fully automatic feeding and conveyor system for continuous cutting of materials for a more efficient workflow and production. Roll Feed Option available for Roll to Sheet processing needs.

Stacker
Designed for continuous feeding of material stack up to 4.5” tall (400 pieces of 250gsm/92lb cover)

Software
Eclipse Software standard file recognition of PLT, DXF, HP/GL is compatible with Kasemake, Artios CAD, Corel, Adobe Illustrator, Box magician, etc.
QR/Barcode Management System (option)

Features

  • Up to 4 tools on a single sheet
  • 4kw vacuum power absorption
  • Oscillating tool for up to 6mm thick materials
  • Automatic feeding system for continuous operation
  • Precise automated positioning system. QR/Barcode Management System



Tools

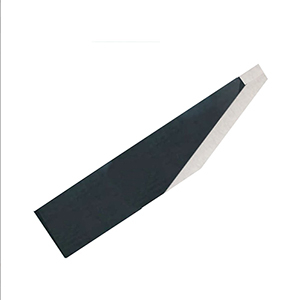

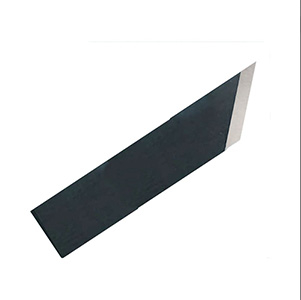

  • Oscillating tool

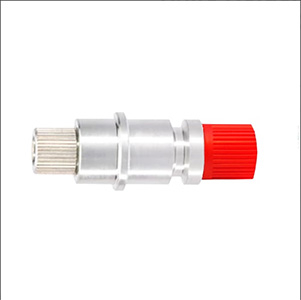

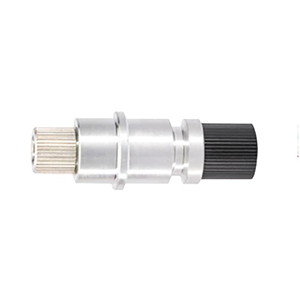

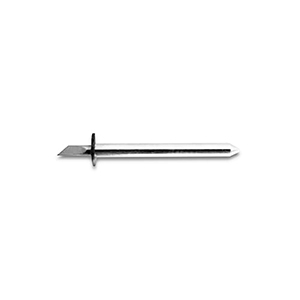

  • Drag knife

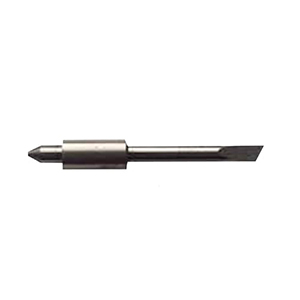

  • Kiss-cut tool
  • Creasing wheel for die free cutting



Productivity You Can Depend On

  • INCREASE - Capacity and productivity to take on more jobs
  • IMPROVE - Speed and accuracy of production
  • CONFIDENCE - In precision and reliability of output day after day
  • DECREASE - Waste, downtime and labor costs
  • REMOVE - Production obstacles and process in finishing

Specifications

Specifications

Material: Paper, foam board, corrugated, card stock, etc.
Effective work area: 20 x 29 inch (530 x 750 mm)
Maximum cutting speed: 1000mm/s (39 inch/s)
Effective cutting thickness: 6mm
Material capacity: Up to 4.5 inch (400 pieces of 250gsm/92lb cover)
Cutting accuracy: 0.1mm (.004 inch)
Data format: PLT, DXF, HP/GL
Tools mountable: Up to 3 (including creasing wheel) on 3 head units
Display: Integrated Touch Interface
Media hold: Vacuum / Conveyor
Voltage: 220 V single phase
Vacuum pump power: 4kw

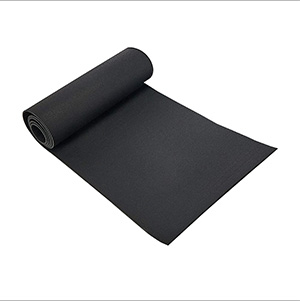

Work surface: Felt mat
