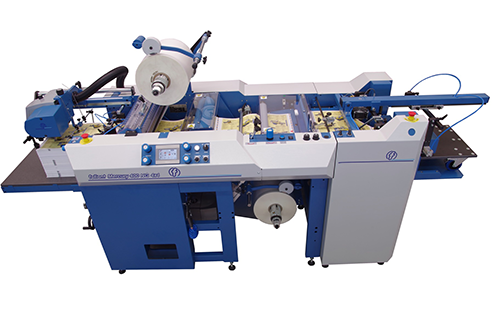

Foliant Mercury 400 NG 4x4 Laminator

GM-MSC-FOL400NG4X4

Ea. (1)


The Foliant Mercury 400NG 4×4 is a Double-sided Industrial Laminating Machine constructed for nonstop heavy-duty digital and offset output lamination. Due to its high-pressure system, format and performance, the machine is suitable for all jobs – all kinds of digitally printed sheets and high volumes of offset printed sheets, size 13.9″ x 19.7″ for lamination.

• Easy operation
• Equipped with a rising back pile separation stream feeder with a Heidelberg suction feed head
• Single-sided and double-sided thermal industrial laminator
POA

Description

Description

The FOLIANT Mercury 400 NG 4x4 Double is a double-sided laminating machine offering very high performance. It is a very compact and fast industrial laminating machine, constructed for nonstop work. It is equipped with a Foliant suction feeder, high-speed bump separator and many options like non-sticky rollers, pallet stacker or Foliant Foiler. Due to its format and performance, the machine is suitable for all jobs - all kinds of digitally printed sheets and high volumes of offset printed sheet sizes 14" x 20" for lamination. The machine maximum speed is up to 88 ft/min in single-side lamination or 82 ft/min double-sided lamination, while performance is up to 3,240/3,000 sheets per hour of 12" x 14" portrait (white paper 200 gsm)

LAMINATOR
The FOLIANT Mercury 400 NG 4x4 laminator’s maximum sheet size is 15.7” x 27.5”, extendable to 39.3” with the optional XL module. The minimum sheet size is 12.6” x 9.8” (A4). The FOLIANT Mercury 400 NG 4x4 machine is a double-sided thermal industrial laminator, laminating the 115 – 600 gsm paper, with an unique “U” cross bar for the perfect lamination of thin sensitive sheets.

The laminating unit is equipped with an adjustable twin de-curl unit:
-With a de-curl blade for offset printed sheets
-With a de-curl roller for digital printed sheets (to prevent scratches on digitally printed sheets printed on both sides with sensitive inks)

The rolls of film are mounted on shafts that allow precise film positioning by screws. Each shaft capacity is up to 9,842’ of the 24 - 42 microns film. Both film holders are equipped with a trim slitter and a perforating wheel.

The laminating process is made between a pair of laminating rollers for each side - a highly polished chrome roller and a hard rubber pressure roller. Both chrome rollers are heated with a dry electric system. The warm up time is less than 10 minutes. The pressure is pneumatically adjustable with an extra independent control knob for each pressure roller edge.

The machine is fitted with OMRON PLC, which controls all of the machine’s functions. The PLC system includes many automation items for easy control of the machine and reliable lamination. The whole machine is controlled by an interactive easy-to-understand icon touchscreen panel – no language version is needed.

Specifications

Specifications

Maximum Speed (single/double): 88/82 feet/minute
Feeding: Automatic
Feeding System: Foliant Suction Feed Head
Feeder Load Capacity: 21.2”
Overlaps: Automatic, PLC Control
Overlap Accuracy: ± 0.08″
Separation: Automatic, Bump Rollers
Paper Weight: 115 – 600 gsm
Main Rollers Pressure: Pneumatic
External Compressor: 150 l / minute, 6 – 8 bar
Minimum Sheet Size: 12.6” W x 9.8” L
Maximum Sheet Size: 15.7” W x 27.5” L
Maximum Performance: 3,240/3,000 14″ x 20″ SPH
Warm Up Time: 8 minutes
Modular for PET Films Processing: Standard
Floor Space w/Jogger: 41.3"W x 122"L
Jogger 400: Optional
XL Module (sheets up to 39.3"): Optional
Pallet Stacker (Motorized): Optional
Pallet Stacker Capacity: 27.5"
Film Loader (Electric): Optional
Film Micro Adjustment Air Shaft: Optional, up to 2x
Non-Sticky Pressure Roller: Optional
Foliant Foiler: Optional
