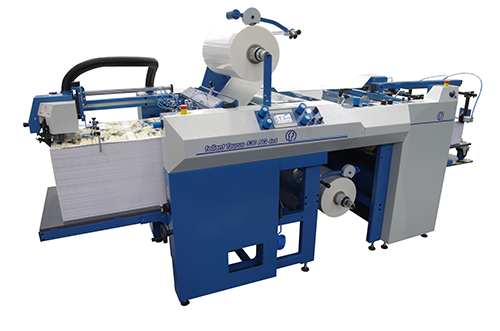

The FOLIANT Taurus 530 NG 4x4 Double is a double-sided laminating machine offering very high performance. It is a very compact and fast industrial laminating machine constructed for nonstop work. It is equipped with a suction feeder, high-speed bump separator and many options like non-sticky rollers, pallet stacker or Foliant Foiler. Due to its format and performance, the machine is suitable for all jobs – all kinds of digitally printed sheets and high volumes of offset printed sheets size 19.7” x 27.8” for lamination. The machine’s maximum speed is up to 131 ft/min in single-sided lamination and 114 ft/min in double-sided lamination, while performance is up to 3,420/2,900 sheets per hour of 19.7” x 27.8” portrait (white paper 200 gsm).
LAMINATOR
The FOLIANT Taurus 530 NG 4x4 laminator’s maximum sheet size is 20.8” x 29.5”, extendable to 39.3” with the optional XL module. The minimum sheet size is 12.6” x 9.8”. The FOLIANT Taurus 530 NG 4x4 machine is a double-sided thermal industrial laminator, laminating 115 – 600 gsm paper, with an unique “U” cross bar for the perfect lamination of thin sensitive sheets.
The laminating unit is equipped with an adjustable twin de-curl unit:
- With a de-curl blade for a strong effect
- With a de-curl roller for a weaker effect to protect the printed back side of the sheet.
The roll of film is mounted on an air shaft that allows very convenient, easy and precise film positioning. The shaft capacity is up to 9,842’ of the 24 - 31 microns film. The film holder is equipped with a trim slitter and a perforating wheel.
The laminating process is made between a pair of laminating rollers for each side - a highly polished chrome roller and a hard rubber pressure roller. Both chrome rollers are heated with a dry electric system inside which consists of several rings mounted directly to the inside wall of the roller. This ensures that heat transfer is perfect even at maximum speed. Sensitive temperature sensors are also inside the rollers as close to the surface as possible. The warm up time is less than 10 minutes. The pressure is pneumatically adjustable with an extra independent control knob for each pressure roller edge.
The machine is fitted with OMRON PLC which controls all of the machine’s functions. The PLC system includes many automation items for easy control of the machine and reliable lamination. The whole machine is controlled by an interactive easy-to-understand icon touchscreen panel – no language version is needed.
