Foliant Taurus 760 NG DS Laminator

GM-MSC-FOL760NG

Ea. (1)

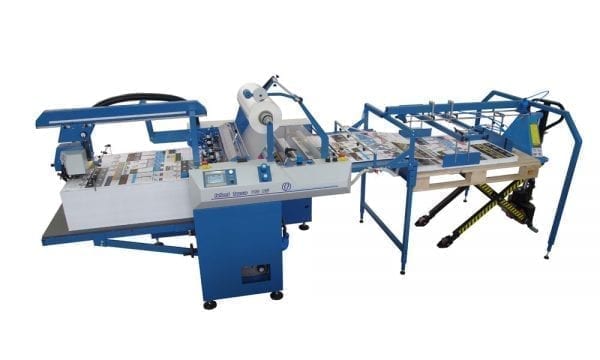

The Foliant Taurus 760 NG is a fast and Compact Industrial Laminating Machine, constructed for nonstop work with an integrated suction feeder and high-speed bump separator, and with options like a pallet stacker and Foliant Foiler.

• Easy operation
• Equipped with a rising back pile separation stream feeder with a suction feed head
• Single-sided thermal industrial laminator
• Film is mounted on an air shaft that allows convenient, easy and precise film positioning
POA

Description

Description

The Foliant Taurus 760 NG is a fast and Compact Industrial Laminating Machine, constructed for nonstop work with  an integrated suction feeder and high-speed bump separator, and with options like a pallet stacker and Foliant Foiler. The machine’s maximum speed is up to 98 feet/minute, while maximum performance is 1,700 sheets per hour of 27.8″ x 39.4″ portrait or 3,400 sheets/hour of 9.7″ x 27.8″ landscape (white paper 200 gsm).

ADVANTAGES

  • Easy operation
  • Equipped with a rising back pile separation stream feeder with a suction feed head
  • Single-sided thermal industrial laminator
  • Film is mounted on an air shaft that allows convenient, easy and precise film positioning
  • Film holder unit is equipped with a trim slitter and perforation wheel
  • Pressure is pneumatically adjustable
  • OMRON programmable logic controller for easy automation
  • Optional jogger, pallet stacker, PET module, Foliant Foiler, film loader/manipulato

Specifications

Specifications

Maximum Speed: 98 feet/minute
Feeding: Automatic
Feeding System: Suction Feed Head
Feeder’s Load Capacity: 15.7” (40 cm)
Overlaps: Automatic, PLC Control
Overlap Accuracy: ± 0.08″
Separation: Automatic, Bump Rollers
Paper Weight: 115 – 600 gsm
Main Rollers Pressure: Pneumatic
External Compressor: 150 l / minute, 6 – 8 bar
Minimum Sheet Size: 12.6” W x 9.8” L (32 cm x 25 cm)
Maximum Sheet Size: 29.9” W x 43.3” L (76 cm x 110 cm)
Maximum Performance: 1,700 27.8″ x 39.4″ SPH
Warm Up Time: 8 minutes
PET Film Processing Module: Optional

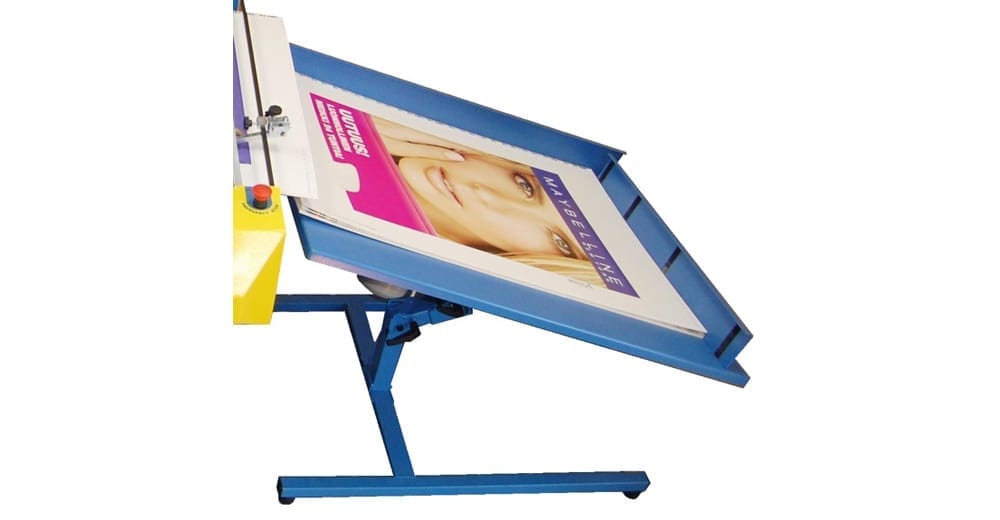

Jogger 760*: Optional

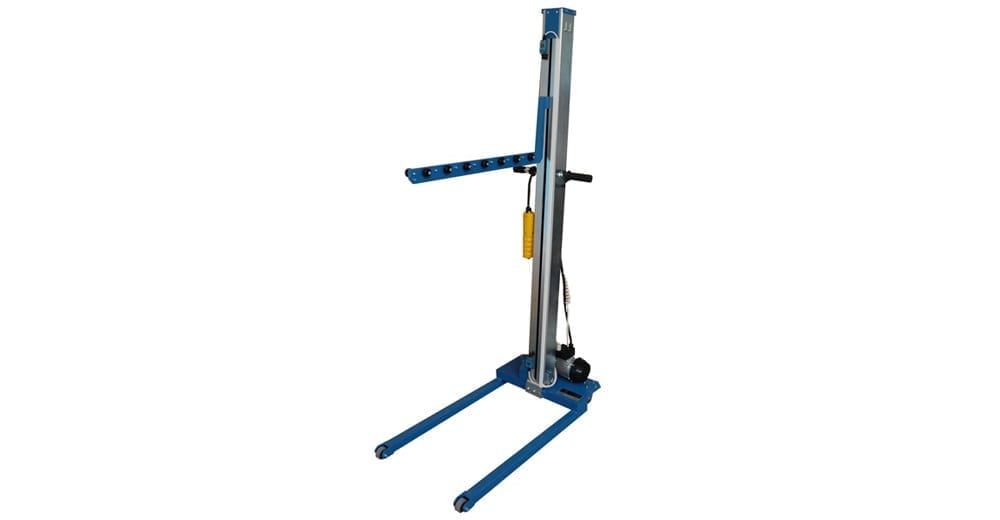

Film Loader (Electric): Optional

Foliant Foiler: Optional

*Important: The machine must be operated with a jogger.
