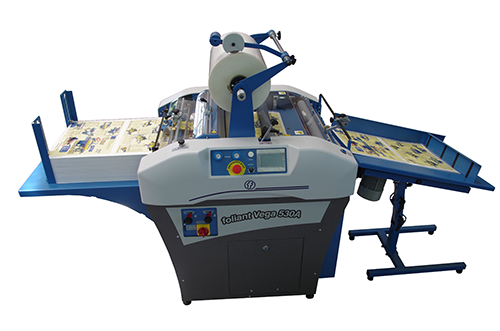

The FOLIANT Vega 530 A is a very compact industrial laminating machine designed for heavy-duty lamination of digital and offset ouotputs (max. format 20.8" x 29.5"). It is equipped with an integrated deep pile vacuum feeder, high-speed bump separator, and adjustable twin de-curl bar and overlap system. Due to its pneumatic high-pressure system (with an integrated compressor inside the machine frame), format and performance, the machine is suitable for all jobs - all kinds of digitally printed sheets and high volumes of 19.7" x 27.8" offset printed sheets for lamination. The machine's maximum speed is up to 59 ft/min, while performance is 1,550 sheets per hour of 19.7" x 27.8" portrait or 3,000 sheets 14" x 20" landscape (white paper 200 gsm).
LAMINATOR
The FOLIANT Vega 530 A laminator’s maximum sheet size is 20.8” x 29.5”. The minimum sheet size is 7.8” x 11.8”. The FOLIANT
Vega 530 A machine is a single-sided thermal industrial laminator, laminating 115 – 500 gsm paper. The machine does not need any external source of pressured air for the pneumatic pressure system because the compressor is integrated inside the machine frame as a standard feature.
The laminating unit is equipped with an adjustable twin de-curl unit that can change angle during the operation:
- With a de-curl blade for offset printed sheets
- With a de-curl roller for digitally printed sheets (to prevent scratches on digitally printed sheets printed on both sides with sensitive inks).
The roll of film is mounted on a quick-changed shaft with a film tension control breaker. The shaft capacity is up to 9,842’ of the 24 - 42 microns film. The film holder unit is equipped with a trim slitter and perforating wheel.
The laminating process is made between two laminating rollers - a highly polished chrome roller and a lower hard rubber pressure roller. The pressure is pneumatically adjustable. The laminating roller is heated with a dry electric system inside the roller with a sensitive temperature sensor. The warm up time is less than 10 minutes. The non-sticky lower lamination roller eliminates machine cleaning because the glue from film doesn’t stick to it at all, even under full pressure.
The whole machine is controlled from an interactive, easy-to-understand icon based touchscreen and it’s control system includes many automation items for easy control of the machine and reliable lamination.
