Formax 7500 Series

GM-FOR-7500_2FA

Ea. (1)

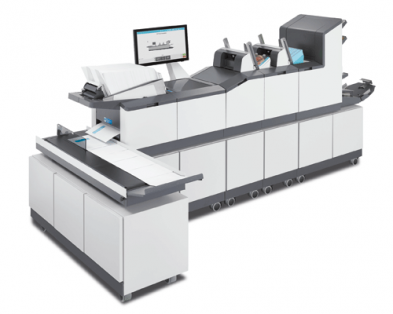

Formax 7500 Series Inserters offer the flexibility and power to process a wide variety of inserting jobs.

• Inserts into flat envelopes
• Speed: Up to 6,000/hr
• Widescreen touchscreen interface
• Modular up to 11 feeders
• Unlimited programmable jobs
• Tower Feeder with twin code readers
POA

Description

Description

Formax 7500 Series Inserters offer the flexibility and power to process a wide variety of inserting jobs. The modular design includes up to 11 feed stations, high-capacity feeders, and a widescreen touchscreen interface. A robust folding system folds up to 8 sheets at a time, with the power to process up to 6,000 envelopes per hour, and up to 300,000 finished pieces per month.

The top-loading envelope hopper holds up to 800 #10 envelopes or 500 flats, in landscape orientation. Inserting into landscape flats offers higher processing speeds, fewer jams, and lower envelope costs.

The 7500 Series inserts sets of up to 72 sheets, up to 10mm thick. Standard features include a high-capacity 4-foot outfeed conveyor, which can be used in-line or at a 90° angle, an accumulator/divert deck which holds up to 300 sheets, and custom cabinets for sturdy, movable storage. The 7500 Series color touchscreen interface is the new standard for all PC-driven inserters. With graphics based on a photo-image of the inserter, it also provides the ability to edit documents while creating jobs. This new interface, combined with unlimited programmable jobs, makes creating and running inserting jobs easier than ever before.

All configurations include a Tower Feeder, which uses twin scanners to read codes either face-up or face-down. The 7500 Series has the ability to read 1 and 2-track OMR, 1D barcodes, and 2D Data Matrix, with codes located anywhere on the page. In addition, infrared and electromechanical double document detectors ensure the correct documents get into each envelope. Optional high-capacity feeders are available with or without intelligence, and can insert various media, including glossy booklets, DVDs and small inserts up to 6mm thick.

With a variety of standard features, high capacity and intelligent design, the 7500 Series Inserters are ready to take on any challenge.



Specifications

Specifications

Speed:

Up to 6,000 envelopes/hour (#10 envelopes)

Up to 12,000 sheets/hour

Tower Feeder Sheet Capacity:

Special 2FA: Two 1,000-sheet Flex-Feeder Special

3FA: Two 500-sheet Flex-Feeders, one 1,000-sheet Flex Feeder on bottom

Special 4A: Four 500-sheet Flex Feeders (“A” models read face up from Top Scanner and face down from Bottom Scanner)

Special 2FB: Two 1,000-sheet Flex-Feeder

Special 3FB: Two 500-sheet Flex-Feeders, one 1,000-sheet Flex Feeder on bottom

Special 4B: Four 500-sheet Flex Feeders (“B” models read face down from Top Scanner and face up from Bottom Scanner)

Tower Feeder Sheet Size:

Up to 16” L portrait feed (folding), 8.5” L landscape feed (no folding)

Up to 8.5” W portrait feeding (folding), 12” W landscape feed (no folding)

High-Capacity Feeder:

Up to 1,000 sheets (20#)

Envelope Feeder: Top-loading, up to 800 standard envelopes or 500 flat envelopes (landscape orientation)

Envelope Size: 3.9” - 10” H x 8.9” - 13” W*

Maximum Set Thickness: Up to 72 sheets, up to .39” (10 mm)

Maximum Insert Thickness: Up to 1/4” (6mm)

Duty Cycle: Up to 300,000 pieces per month

Voltage: 110 V, 60 Hz, 10Amp

Safety Certifications: UL, CE, FCC certified
