Fujipla HLA-2301 Automatic Laminator

GM-DRY-HLA2301

Ea. (1)

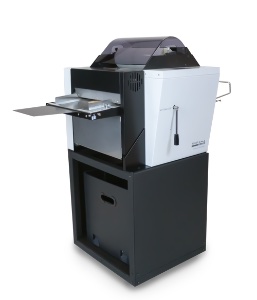

The newest, commercial-grade Fujipla laminator by
Dry-Lam has everything you know and love about the
previous ALM line for automatic feeding, laminating,
trimming, and stacking sheets, but is now faster
and better with improved features and functionality!
Laminating up to 68” per minute, it is 25% faster than
the ALM3230.

• Ultra-quick warm-up time
• Automatic single or double-sided lamination
• Hands-free automatic feed tray
POA

Description

Description

  • Ultra-quick warm-up time of less than 5 minutes
  • Automatic single or double-sided lamination
  • 2 Automatic trim options
    • Flush-cut:  precise, micro-adjustable with ± 3mm margin adjust
    • Border-cut: custom-sealed options with 4-sided trim uniformity
  • Hands-free, automatic feed tray
  • Simple operation with specially encoded film for auto settings



Applications

  • Book Covers
  • ID Cards/Badges
  • Menus
  • Training and Instruction Manuals
  • Business Cards

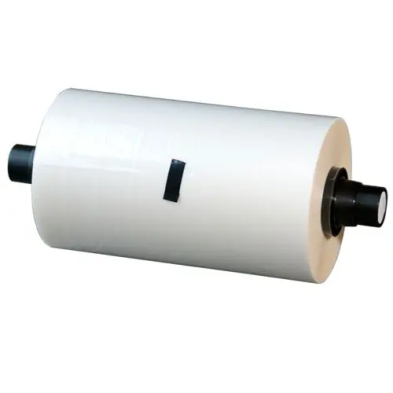

Suggested Film

  • HLA38: 1.5 mil Gloss
  • HLA75: 3.0 mil Gloss
  • HLA125: 3.0 mil Matte
  • HLA125: 5.0 mil Gloss

Specifications

Specifications

Laminating Width: 12.6"

Speed: 68" per min

Film Thickness: 1.5 - 10 mil (10 mil single-side only)

Laminating Thickness: 16 mil

Heat type: Heated Rollers: Dual heat only

Temperature Range: 170 - 270°F

Warm-Up Time: Less than 5 minutes

Paper Sizes: 8.5" x 5.5", 8.5" x 11", 11" x 17", 12" x 18", 13" x 19"

Paper Feed Capacity: 200 Sheets

Trimming Methods: Flush cut or Border cut

Operation Panel: Color LCD display for start, stop, temperature, speed and trim settings, leading and trailing edge side cuts are adjustable

Voltage: 1200W

Power Supply: 100-240 VAC, 50-60Hz

Laminator Weight: 170 lbs

Dimensions (LWH): 48" x 23.5" x 44"

Boxed Weight: 158 lbs

Boxed Dimensions (LWH): 31" x 43.3" x 71"
