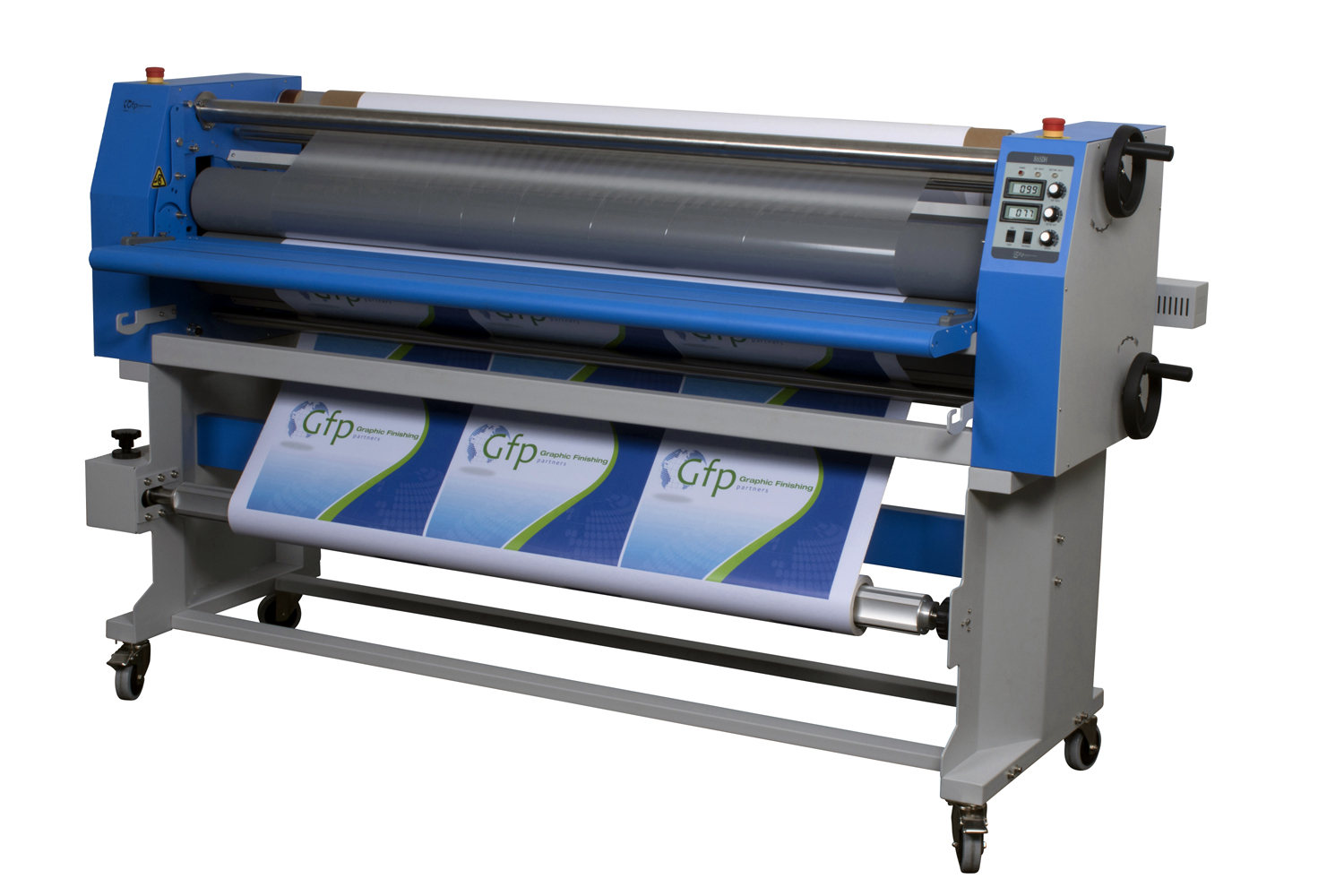

GFP 865DH-4RS Dual Heat Laminator

GM-GFP-865DH_4RS

Ea. (1)


For finishing professionals who need versatility, quality, and economy in one machine, the Gfp 865DH-4RS delivers.

• Labor saving swing-out supply shafts
• Drop-in quick-grip rewind shafts
• Photoelectric eye for operator safety
POA

Description

Description

For finishing professionals who need versatility, quality, and economy in one machine, the Gfp 865DH-4RS delivers. Turn out thermal encapsulation with low melt films (1.5-10mil), PSA lamination, and mounting jobs quickly and easily. Spend less time on set-ups and changeovers with swing-out quick-grip supply shafts. Two front rewind shafts allow thermal encapsulation of prints from a roll.

• Labor saving swing-out supply shafts
• Drop-in Quick-Grip rewind shafts
• Photoelectric eye for operator safety
• Independent top and bottom heaters
• Web clutch adjustment for output quality
• Includes rear rewind with rotary slitters
• Swing-up feed table and 38" output height

Specifications

Specifications

Laminating Width: 65"
Roller Diameter: 5"
Roller Gap: 1"
Main Rollers: Silicone
Supply roll diameter (Max): 16" bottom, 8" top
Film shafts: 3" aluminum quick-grip
Rear Rewind with rotary slitters: Included
Max. temperature: 266° F
Heat method: Quartz heater
Film thickness: 1.5 - 10mil
Laminating speed: 0-13 ft/min
Pressure adjustment: Dual hand wheels
Roller heating: Top & bottom
Power Supply: 240v 60HZ Single phase 24A
Power Consumption: Max. 5760W
Dimensions: 87" x 34" x 49"
Net Weight w/ stand: 846 lbs.
