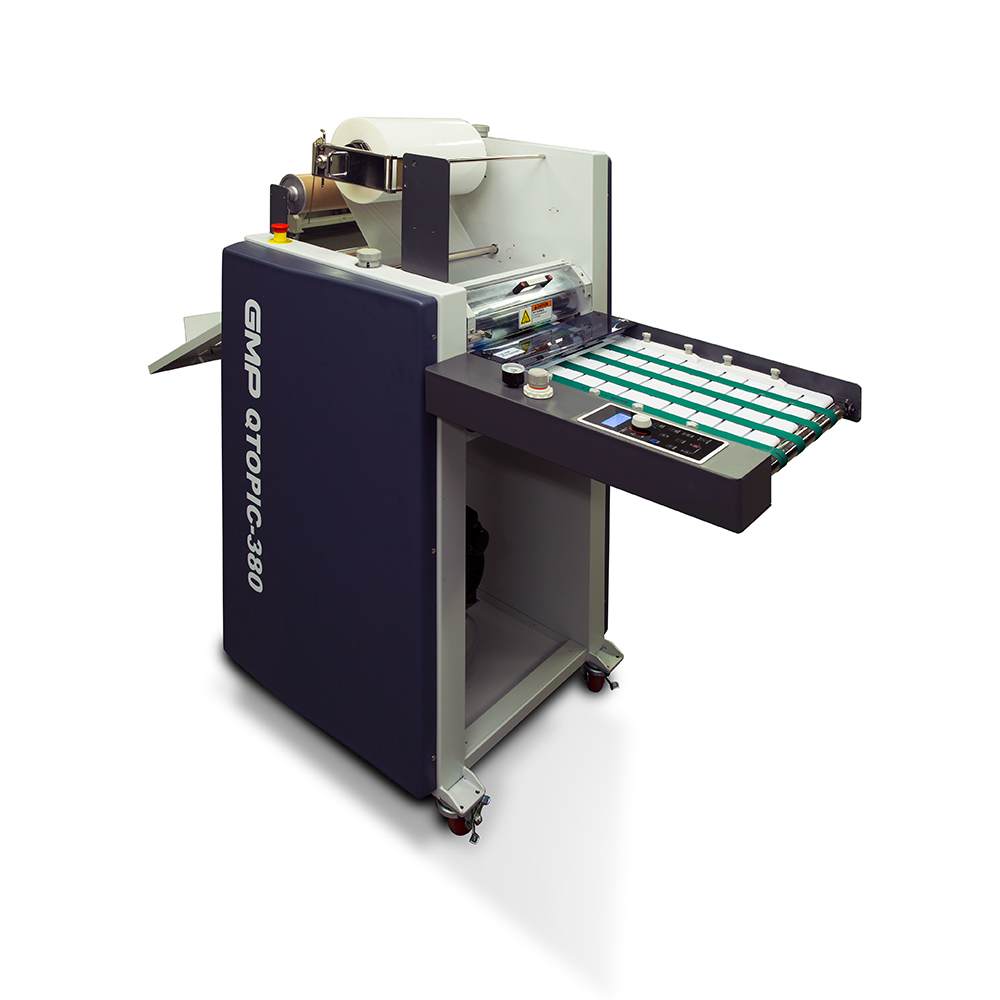

GMP Q-Topic 380 Laminator

GM-AME-QTOPIC380

Ea. (1)



Introducing the all new QTopic-380 print on-demand single-sided lamination system. Sleeking option is pre-loaded and included. Spot coat gloss, matte, holographics and sleeking foils with this low cost laminator.

• Maximum sheet size capabilities up to 15”W x 48”L
• Pneumatic chrome lamination roller sets
• Adjustable de-curling system
• Rear burst roller ensures excellent results.

POA

Description

Description

The GMP QTopic™-380 is a laminating system that performs single-sided lamination for operations that focus on short-run and on-demand print jobs. Its manual feeder and compact design make it ideal for operations that have a small footprint but still need the ability to laminate on a consistent basis. Its ergonomic touchscreen controls enable operators to make adjustments between jobs as needed.

Because the GMP QTopic-380 uses bursting separation, it is most compatible with biaxially oriented polypropylene (BOPP) laminates. It can perform whole-page or spot variable-data foiling as needed with its integrated Sleeking® module. A built-in de-curling device ensures prints remain flat after lamination. This laminator accepts sheets as large as 15 inches wide by 48 inches long.

SPECIAL FEATURES:

  • Using household power supply (220~240V).
  • Environmentally-friendly Thermalami® system.
  • Perfect for a wide range of lamination:
    • POLYNEX (BOPP base) film
    • NYLONEX (NYLON base) film
    • PERFEX (PET base) film
  • Space-effective compact design for office, copy shop and photo shop.
  • Automatic paper feeding gap control system and automatic burst cutting system.
  • Film tension control device and decurling device are equipped.
  • Capacitive touch screen.
  • Sleeking™ solution and Micronex lamination with re-winder unit
  • Air compressor included.

Specifications

Specifications

Dimensions (W x L x H): 720 x 1700 x 1350mm
Laminating speed: 1.5m/min ~ 10m/min
Paper size (W x L, mm):

Max: 380 x 500mm

Min: 180 x 210mm

Laminating films:

Single side:

POLYNEX (20~43mic),

PERFEX (25mic)

NYLONEX (27~44mic)

MICRONEX (6~10mic): Gloss, Matte, Hologram

Sleeking: Gloss, Matte, Hologram, Metallic
Substrate thickness: 120 ~ 350g/m
Front roller diameter:

Top: high glossy chrome ∅100

Bottom: silicon ∅80

Rear roller diameter: Silicon ∅55
Power requirement: AC 220~240V, 50/60Hz, 12A
Power consumption: 2.8kw
Warm-up time: 5 minutes
Heating system: Infrared heater
Laminating temp: Max. 150℃
Temp. control: Capacitive touch screen
Speed control: Capacitive touch screen
Display system: LCD panel
Roller pressure: Pneumatic cylinder
Film core size: 77mm (3") / Dual - 58mm, 50mm
Air compressor: 1 HP, 89L/min
Temp. sensing method: Thermo-couple inserted in the roller shell
Net weight: 187kg
