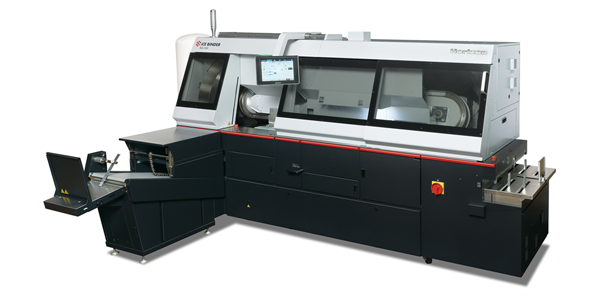

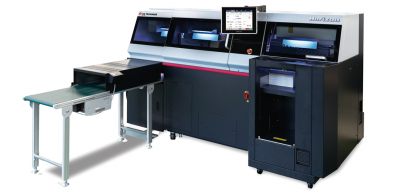

Horizon BQ-500 Perfect Binder

GM-HOR-BQ500

Ea. (1)

The BQ500 is designed to increase book-of-one productivity, increase automation, and quality control over a wider range of substrates.

• Supports both EVA and PUR
• Produce high speed and high quality books without a skilled operator
• Up to 1,350 cycles per hour
• 12.1" user friendly touch screen
POA

Description

Description

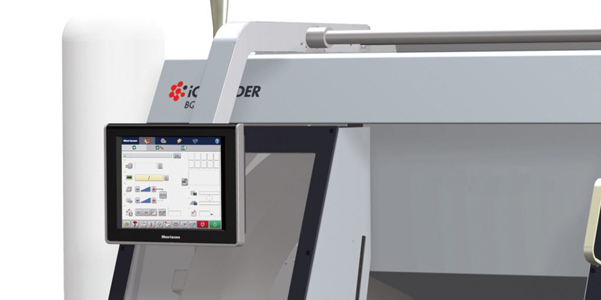

The BQ-500 perfect binder is designed for increased book-of-one productivity, increased automation, and increased quality control over a wider range of substrates regardless of run length. The BQ-500 is the first perfect binder to come equipped with iCE LINK, Horizon’s new cloud-based JDF workflow and job-management tool. The system features an improved and easy-to-use 12.1” touchscreen for quick setup, an ergonomic design for efficient, operator-friendly operation, and an enhanced delivery system for thin books.

  • Advanced automationThe BQ-500 features 21 automated sections in total, reducing setup and changeover time even when making fine variable thickness adjustments – all while ensuring higher quality books.
  • Improved visual monitoringA new, larger production monitoring screen and new, customizable LED lighting serve as a quick-look indicator of system readiness and status. Indicator lights can even be seen from across the production floor with the BQ-500’s light tower.
  • Variable productionThe BQ-500 is the most productive binder for book-of-one production in its class. In a variable range of +/-5mm, the BQ-500 can reach production speeds of up to 800 books per hour, almost double the productivity of other binders in this range.
  • Expanded customizationThe BQ-500 is designed to support a wide range of connectivity and enhancement options so that you can expand and tailor capabilities to match your unique needs.
  • Clean spine preparation Improved milling waste removal, a newly designed air flow, and an improved glue application system help ensure high-quality production.

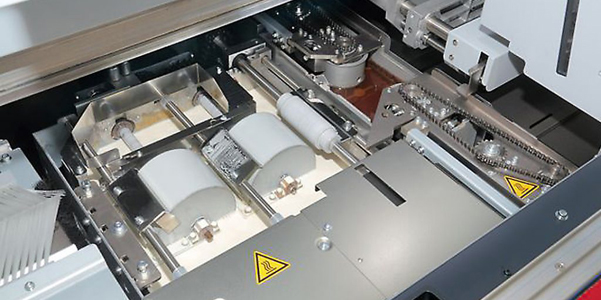

  • EVA and PURThe BQ-500 features interchangeable EVA and PUR glue tanks with a new and improved tank removal process for cleaner and easier tank changeover.

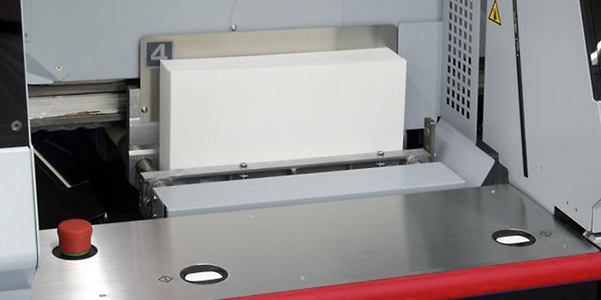

  • Gentle deliveryTo prevent damage to more delicate books, the BQ-500 has reduced the book drop from 150mm to only 5mm. Books are then gently lowered to the delivery belt.
  • iCE LINKThe BQ-500 is the first perfect binder to come equipped with iCE LINK, a cloud-based platform that can provide device monitoring, KPI analysis, PM schedule/alerts, JDF/JMF Workflow, scheduling, job creation, editing and more.



Specifications

Specifications

Book block Max: 12.59″ x 12.59″
Min: 5.70″ x 4.13″
Cover size Max: 12.59″ x 26.37″
Min: 5.315″ x 8.859″
Cover pile height 5.90″
Thickness Max: 2.55″
Min: 0.039″
Cover thickness Coated: 104 to 348 gsm
Uncoated: 81.4 to 302 gsm
Production Speed(s) Up to 800 books/hr
