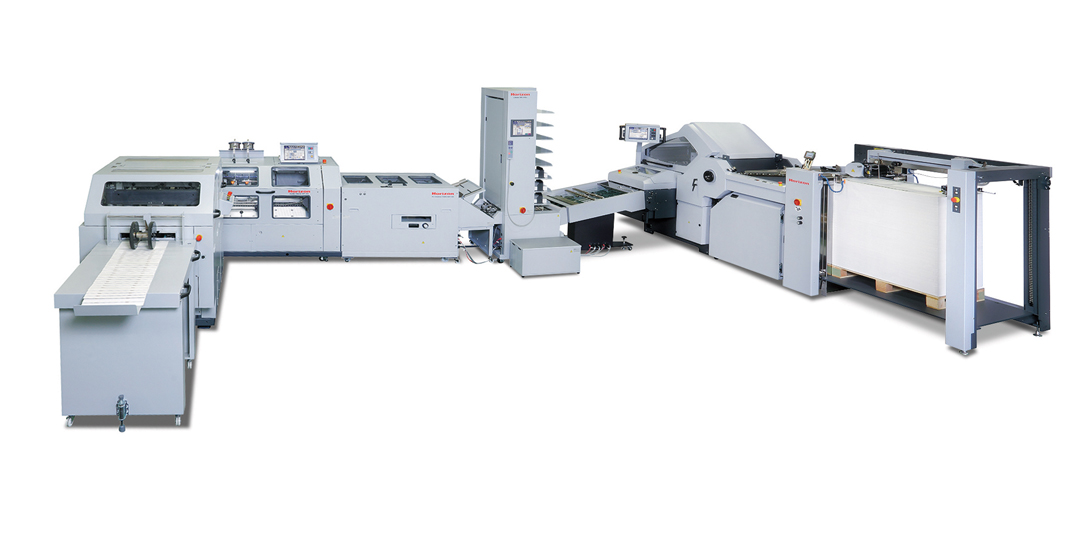

Horizon FoldLiner

GM-HOR-FOLDLINER

Ea. (1)

The new Horizon FoldLiner takes an innovative, hybrid approach, combining saddlestitching and folding to go from digital or offset press sheet to saddlestitched booklet in one efficient system.

• High productivity
• Accommodates press sheets up to 40″
• Up to 6,000 booklets/hr
• Wide range of booklet sizes
• Covers can also be merged from the tower.
• Mark sensor

POA

Description

Description

NEW HYBRID APPROACH TO SADDLE STITCHED BOOKLETS FROM PRESS SHEET

Eliminate the folding process and go from digital to off set press sheet to saddle stichted booklet using a single operator.

  • No touch points: The Foldliner combines the AFC-74 Series Folder and the Stictchliner 6000 Saddle-Stitching System. No additional offline processing is required after printing for finishe booklet production.
  • High Productivity: Flat sheet to saddle stitched booklet can be produced u to 6,000 booklets per hour.
  • Variable Production: Variable sheet count production can be achieved by use of optimal mark sensor. Suitable for digitally printed B2 size sheet and full size press sheets.

Specifications

Specifications

Sheet Size Max 356(W) x 508(L) mm (14″ x 20″)
Sheet Size Min 140(W) x 199(L) mm (4.7″ x 7.1″)
Sheet Weight Range Normal: 53 to 157 gsm / Coated: 74 to 210 gsm
Booklet Size Max (before trim) 350 x 250 mm (13.7″ x 9.8″)
Booklet Size Min (before trim) 210 x 139.7 mm (8.3″ x 5.5″)
Production Speed 6,000 booklets/hr max
