Horizon HT-1000V Three-Knife Trimmer

GM-HOR-HT1000

Ea. (1)

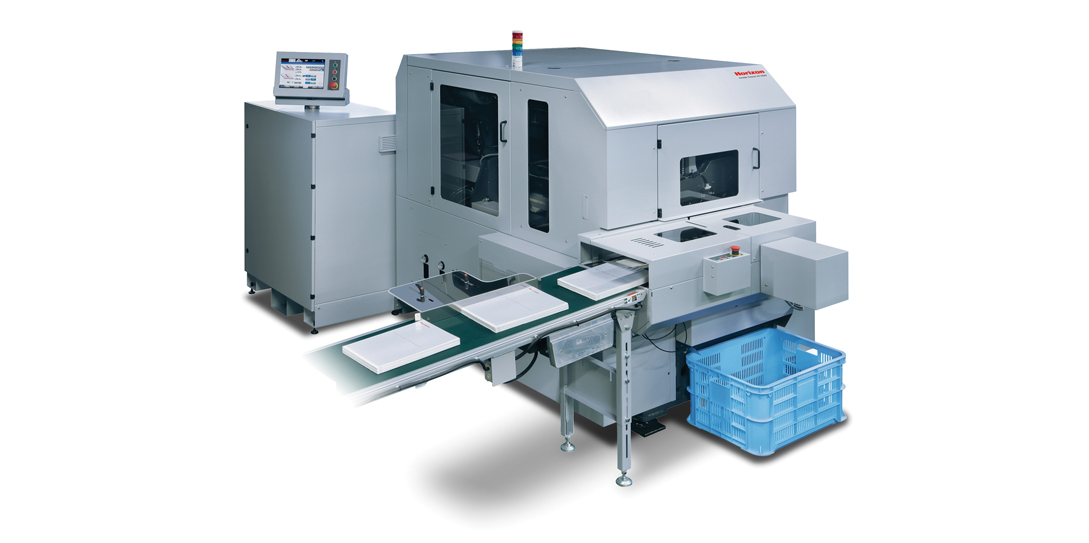

The new Horizon HT-1000V Variable Three-Knife Trimmer operates in-line with Horizon perfect binders or off-line to deliver a wide range of input and output sizes for completely variable production.

• Heavy duty construction
• Consistent high quality finishing
• Hands free set up
• Variable production
POA

Description

Description

BENEFITS

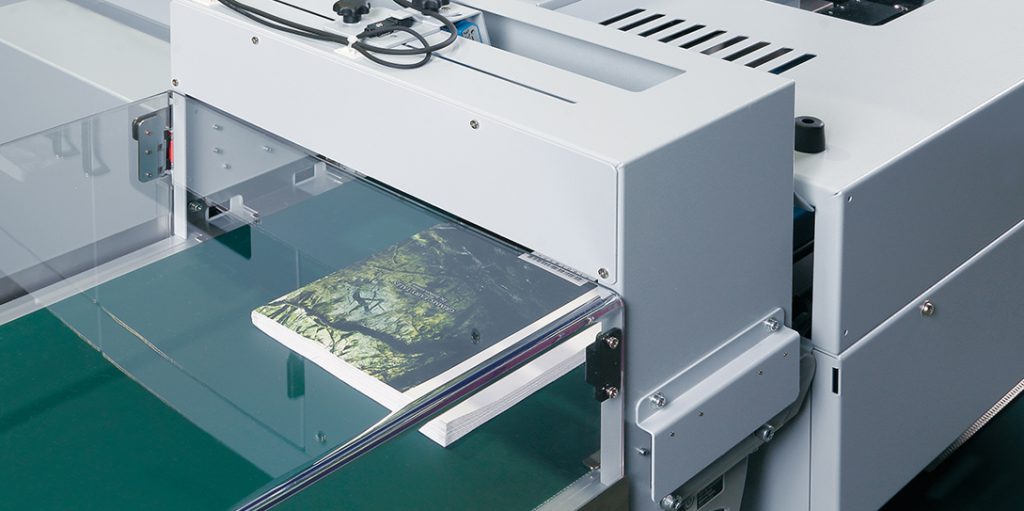

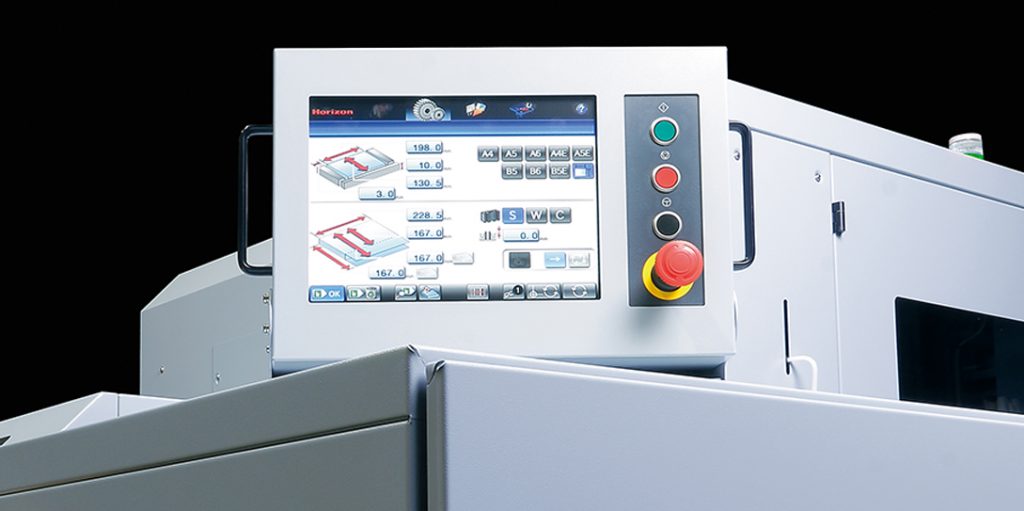

Automated Set Up: The HT 1000V is set-up automaticaly on the fly by reading a barcode at the entrance of the trimmer. The system also is capable of automatic set-up from the operator panel for same size production runs.​​

Variable Size Trimming: One-to-one book production with variable sizes can be produced. Both untrimmed and trimmed sizes can be variable for true variable format production.

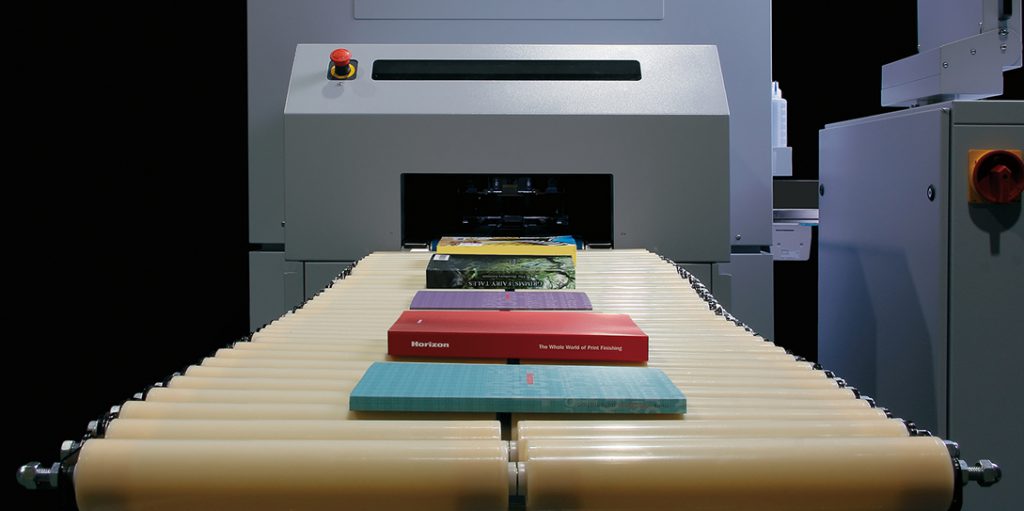

In-Line Production: The HT-1000V can be placed in-line with Horizon minimize human operation error.

High Speed Operation: Maximum cycle speed of the HT-1000V is 1,000 books per hour. For example, A4 to A5 alternating sequence (book of one production) can be *950 books per hour. *Production speed depends on book condition and preparation of untrimmed books.

JDF Workflow: The HT-1000V can be connected with the Horizon and management.

Specifications

Specifications

Untrimmed Book Size (Spine x Fore-edge) 5.825″ x 4.13″ to 13.78″ x 12.6″
Finished Book Size (Spine x Fore-edge) 5.705″ x 4″ to 13.39″ x 11.815″
Trim Width  Fore-edge .04″ to 4.33″, Top and Bottom .04″ to 3.15″
Trim Height .04″ to 2.56″
Production Speed 400 to 1,000 cycles/hour (higher production with piled books)
Voltage/Frequency 3-Phase 200 to 220 V, 50/60 Hz (compressed air required)
Machine Dimensions 79.8″ (W) x 126″ (D) x 63.9″ (H)
