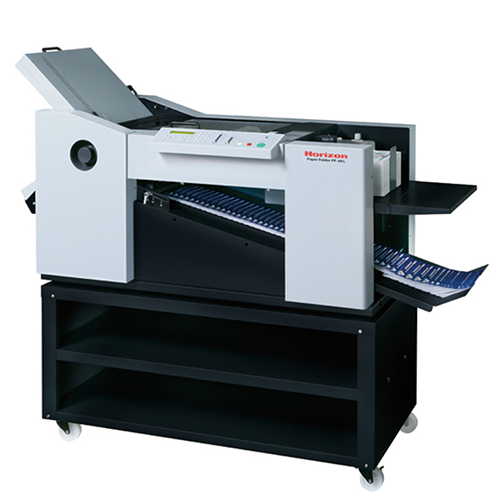

Horizon Paper Folder PF-40L

GM-HOR-PF40L

Ea. (1)
The Standard Horizon PF-40L combines high-volume suction feed capabilities with the intelligent automation that Horizon products are known for.

• Reliable suction feed system
• Easy setup
• Wide paper range
POA

Description

Description

The Standard Horizon PF-40L combines high-volume suction feed capabilities with the intelligent automation that Horizon products are known for.

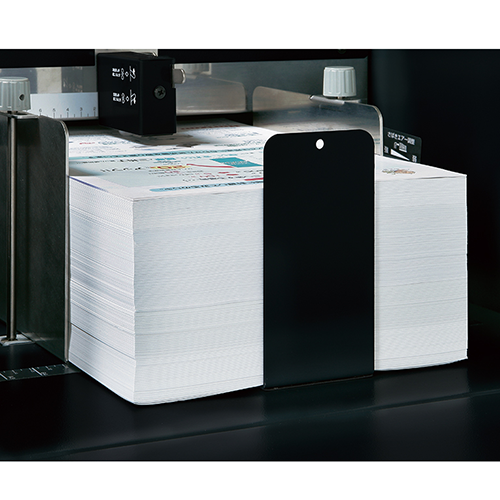

  • Reliable suction feed system: The 1,000 sheet capacity, top-fed system is the same suction feed system as the highly popular VAC Collators and PF-P330 Folder, providing for reliable mark-free feeding from static laden digitally printed sheets as well as conventional prints.
  • Easy setup: The PF-40L’s push-button control panel enables any user to set-up for the six most popular fold patterns of standard cut-sheet sizes.
  • Wide paper range: The paper size range for the PF-40L is from 5” x 5” to 12.6” x 24.8” and thicknesses from 13 lb. bond to 60 lb. cover without requiring pre-scoring or creasing.
  • Store patterns for easy access: Memory capacity allows for easy programming of 10 unique fold patterns and/or non-standard sheet sizes to be recalled at any time.

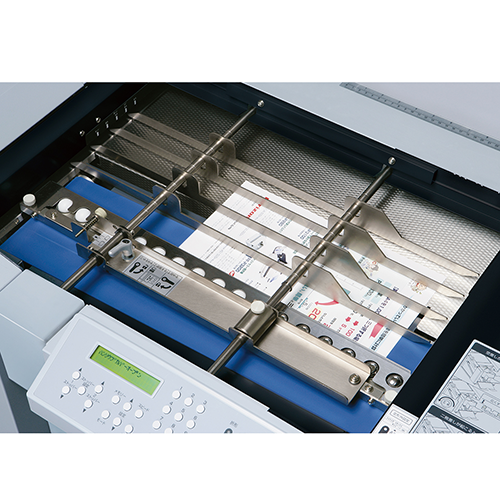

  • Built-in registration guide: The registration guide table keeps sheets correctly registered at the highest operating speed of 390 sheets per minute.

Specifications

Specifications

Maximum Sheet Size: 12.59″W x 24.8″L
Minimum Sheet Size: 4.93″W x 5.04″L
Stock Weight: 52.3 to 157 gsm
Folding Speed: Up to 390 sheets per minute
Maximum Pile Height: 4.13 inches
Weight: 298 pounds
