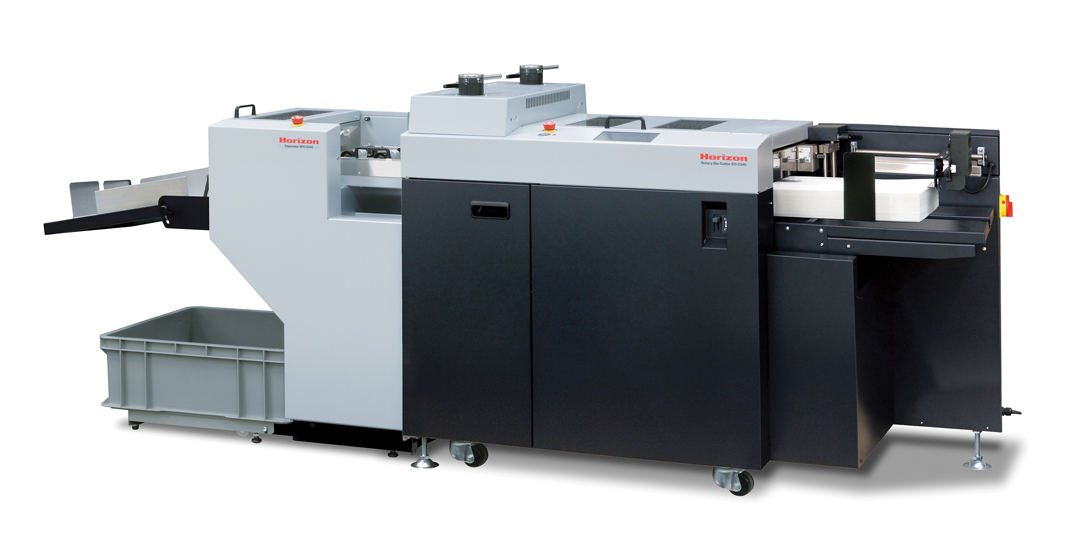

Horizon RD 3346

The RD-3346 is perfect for short-run digital and offset applications such as tags and business cards.  Die-cut and kiss-cut various flexible substrates up to 0.013” thickness and at production speeds up to 5,000 cycles per hour.  Feeding, die-cutting and separating is achieved in a single pass.

• Digital and offset support: The RD-3346 die-cuts and kiss-cuts various flexible substrates up to 0.013″ thickness for digital and offset printed sheets.

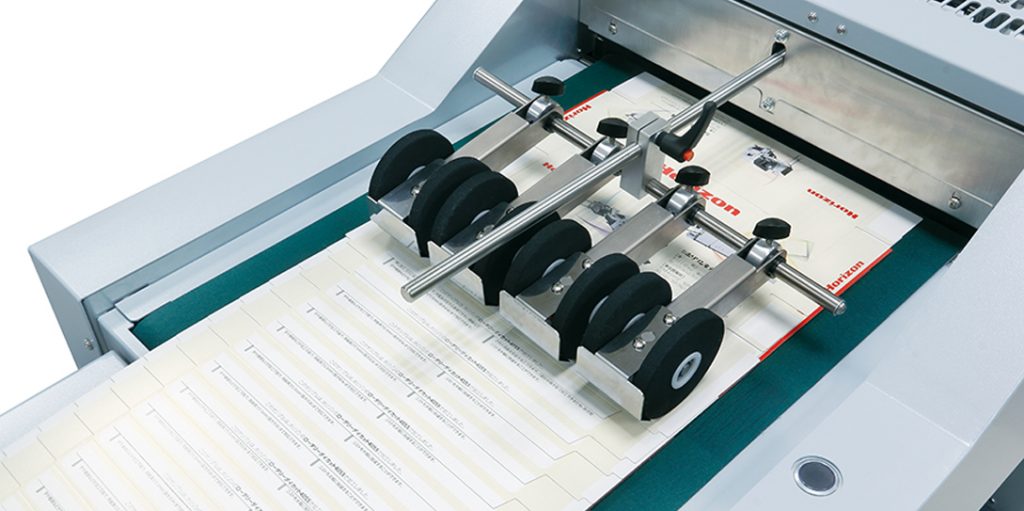

• Efficient production: At speeds up to 5,000 cycles per hour feeding, die-cutting and separating are achieved in one pass.

Sheet size, max: 13 x 21.65" (330.2 x 550mm)
Sheet size, min: 6.69 x 10.83" (170 x 275mm)
Cut size, max: 12.36 x 17.32" (314 x 440mm)
Cut size, min: Depending on die shape
Sheet thickness: 127.9 to 270 gsm
Die cutting thickness: 0.011" (0.3mm)
Creasing thickness: N/A
Die size, max: 12.99 x 18.11" (330 x 460mm)
Die size, min: 6.3 x 2.76" (160 x 70mm)
Upper cutting blade height: 0.0236" (0.6mm)

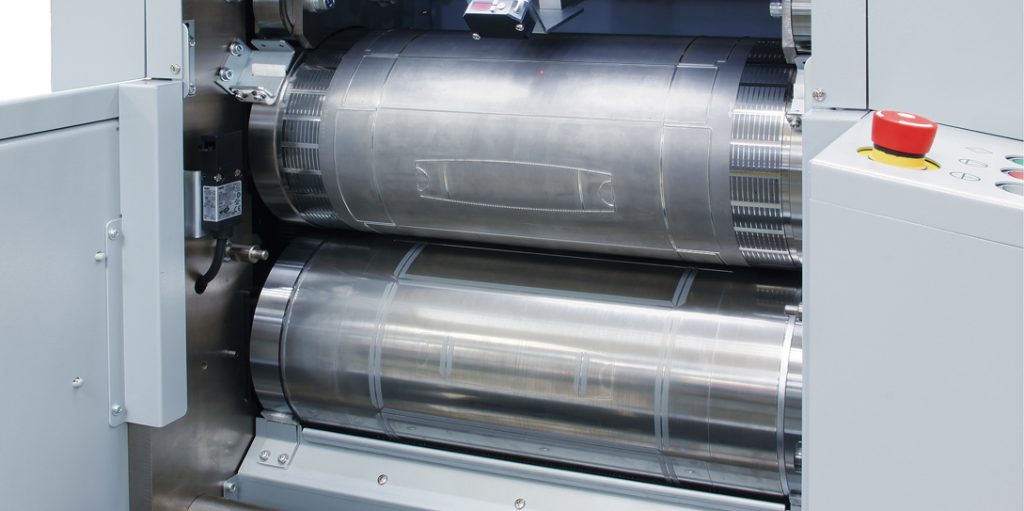

Lower / 2nd cylinder: Solid anvil
Feeder stack height: 5.9" (150mm)

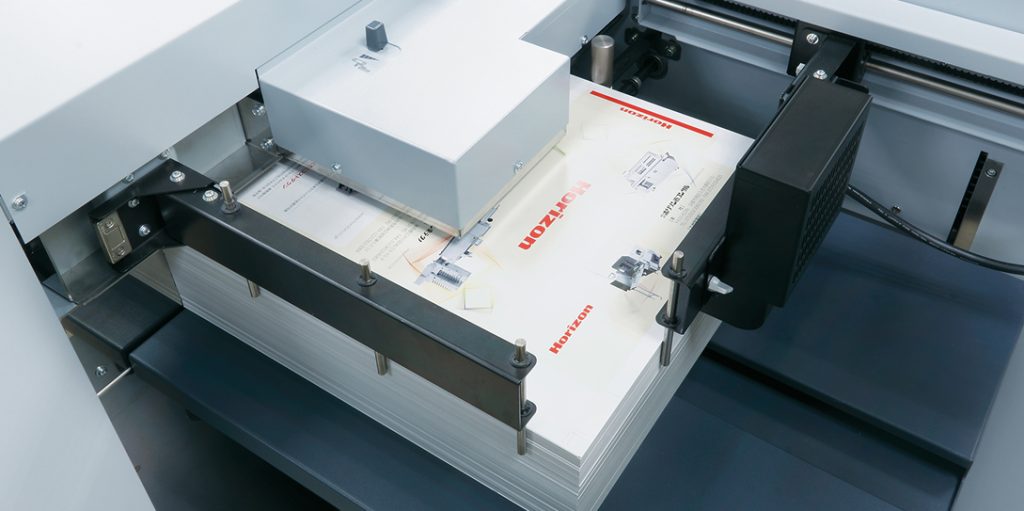

Feeder: Vacuum belt w/registration
Double sheet detection: Ultrasonic and mechanical
Production speed, max: 5,000 cycles per hour
Electrical: AC 200-240V, 1PH, (40A service)
Air source: Reference tech docs & literature
Dimensions (Wx Dx H): Reference tech docs & literature
