Horizon SB-09 Perfect Binder

GM-HOR-SB09

Ea. (1)

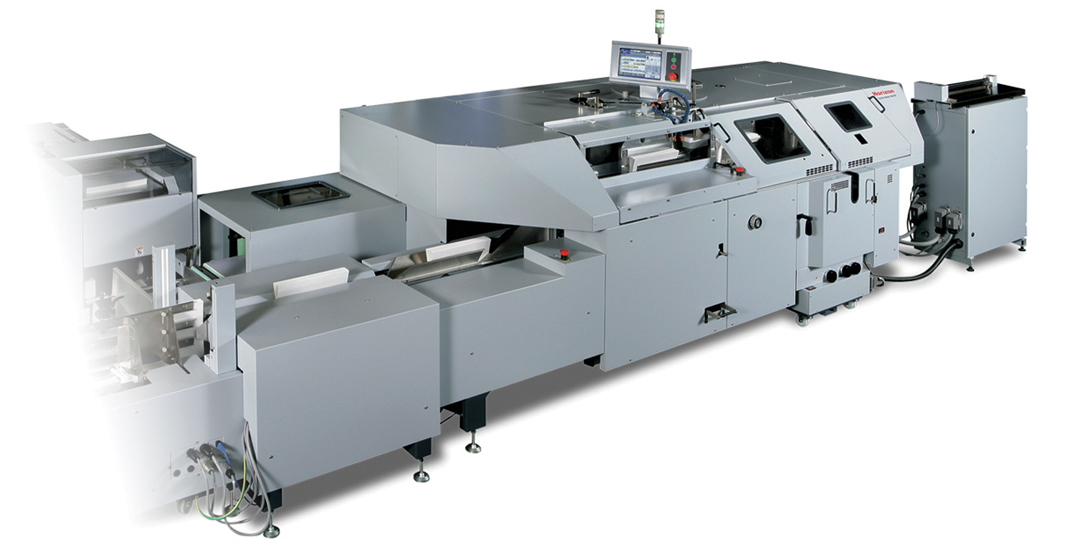

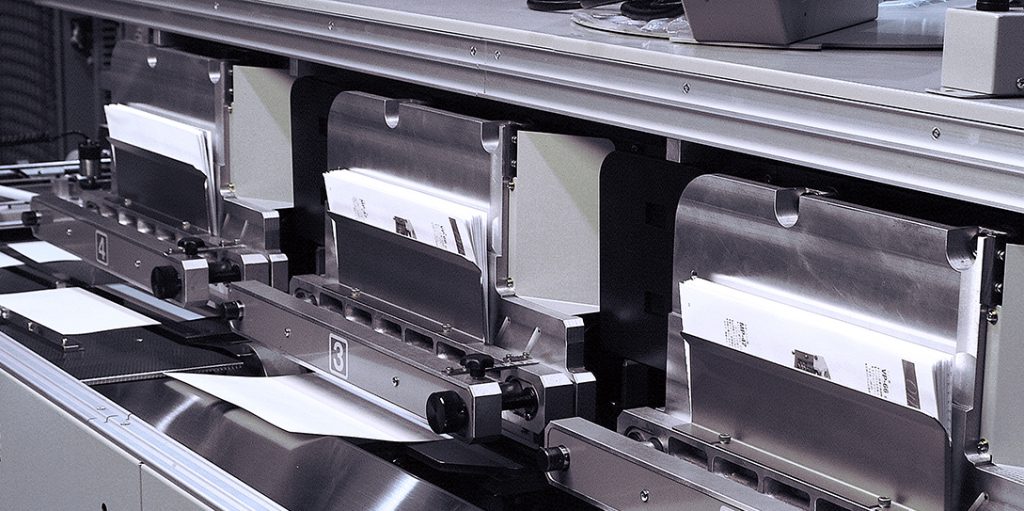

The Horizon SB-09 nine-clamp perfect binder features automated operation, push-button simplicity, and high-quality production perfect binding.

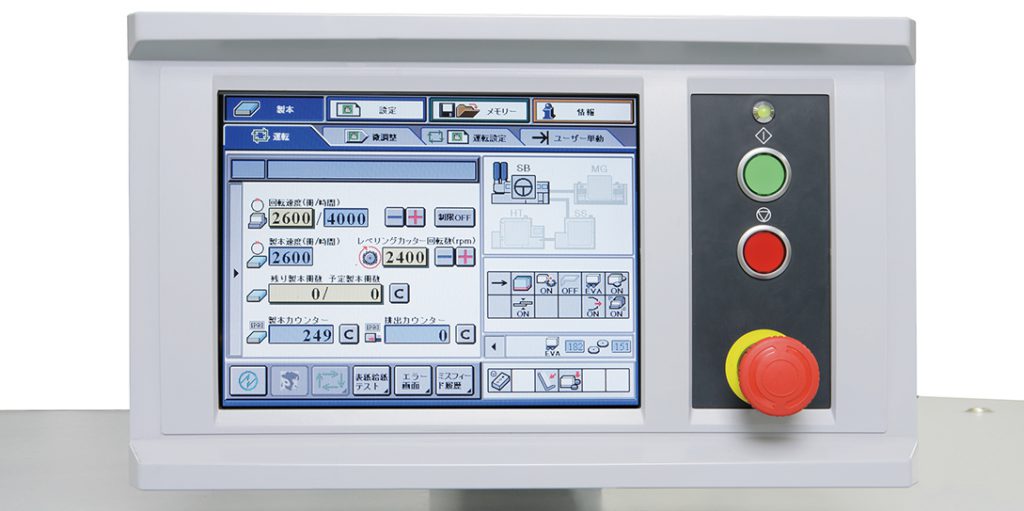

• 10.4" intelligent touch screen control
• Automatic air suction cover feeder
• Handles wide range of materials
• High efficiency
• Up to 4,000 books/hr
• In-line trimmer
POA

Description

Description

BENEFITS

  • Highly accurate automated set-up is performed with simple and easy operation.
  • Book production of up to 4,000 books per hour can be achieved.
  • Both EVA hotmelt and PUR hotmelt are supported by using the interchangeable melt tanks.

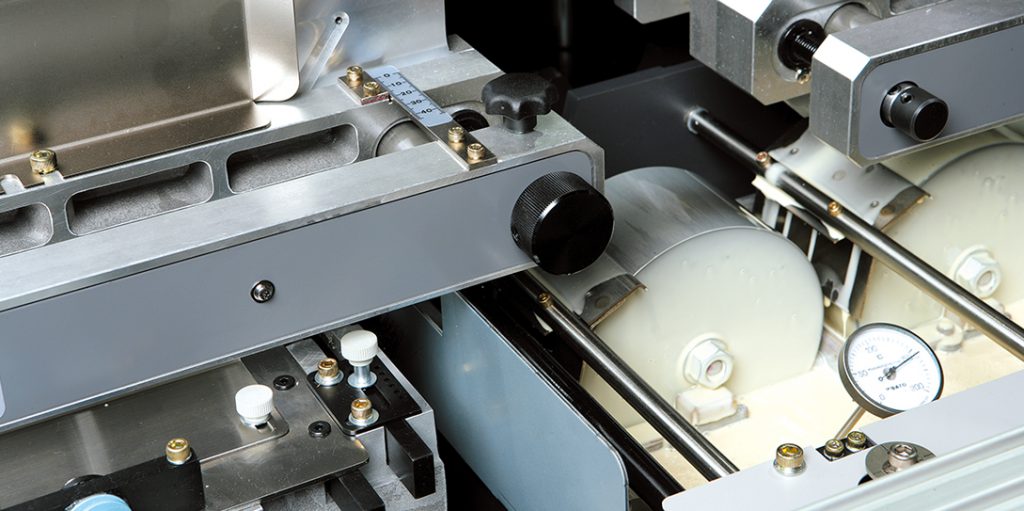

  • Two application rollers ensure superior penetration of hotmelt glue.

COVER FEEDING SECTION

  • Cover feeder is available in two styles. One is a roller grip style feeder and the other is an optional rotary grip style feeder. Rotary grip style is designed to feed fl ap covers. Any double-feeds are detected by a supersonic sensor. Both feeders are bottom feeding and the cover can be loaded while running for continuous operation.
  • Cover feeding / Scoring Section. The cover scoring wheels can create up to 4 score lines, and can be automatically set up according to the book thickness.
  • Cover registerting/ Nipping Section. A superior nipping system experts powerful nipping pressure to create strong,durable binds with sharp spine corners. Automatic nipper height adjustment is available on SB09V/VF fully automated model.
  • Delivery Section. The space effi cient vertical conveyor and the optional twisting conveyor LD-09T gently lay down and transport the fi nished book without damaging the spine especially for PUR bound books.

Specifications

Specifications

Book Size Max  400 x 280 mm (15.7″ x 11.0″)
Book Size Min 148 x 105 mm (5.9″ x 4.2″)
Book Thickness 1 to 45 mm (0.04″ to 1.77″)
Cover Size Max 400 x 660 mm (15.7″ x 25.9″)
Cover Size Min 135 x 220 mm (5.4″ x 8.7″)
Cover Weight Range Normal: 82 to 302 gsm / Coated: 105 to 348 gsm
Production Speed Max 4,000 books/hr
