Horizon SmartStacker

GM-HOR-SMARTSTACKER

Ea. (1)

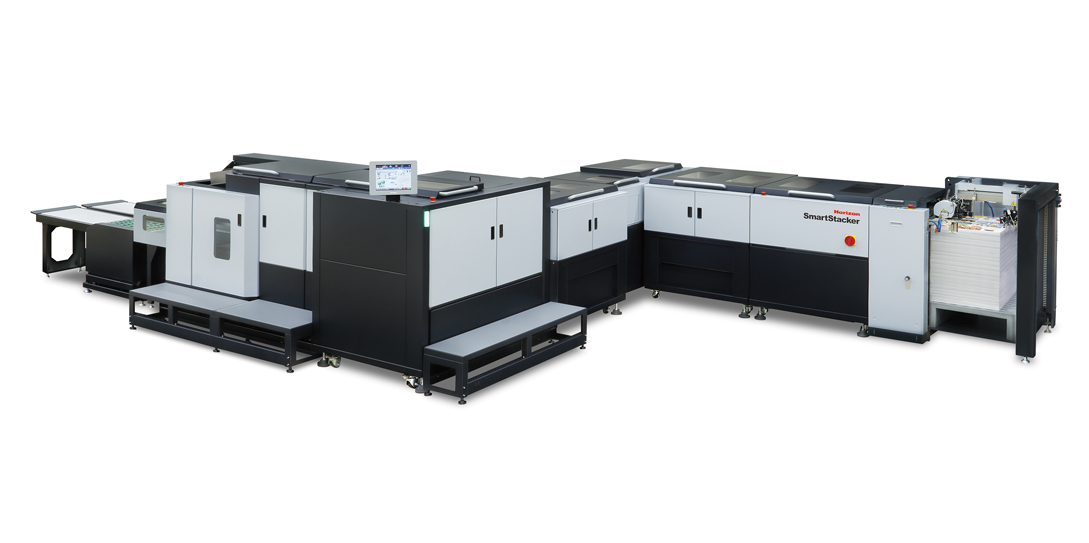

The Horizon SmartStacker converts a B2 size (20″ x 29″) sheet into up to 28 individual cut sheets with intelligent accumulation, stacking, and end-to-end JDF control.

• Designed to run in-line with HP Indigo 10000/12000 Press
• Can operate near-line to serve multiple print sources
• Sheet feeding capability: 4,500 sheets/hr
POA

Description

Description

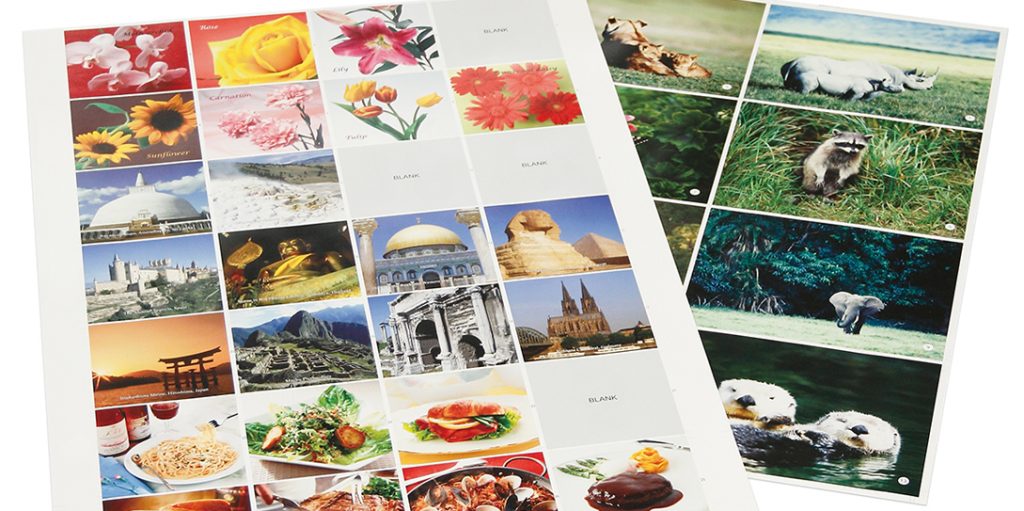

The SmartStacker offers a groundbreaking new way to process your digital B2 print. The new SmartStacker converts a B2 size / 20 x 29 sheets into up to 28 individual cut sheets, with intelligent accumulation and stacking, and end-to-end JDF control. Designed to run in-line with a B2 size Digital Press, the system can also be operated near-line to serve multiple print sources with sheet feeding capability up to 4,500 B2 sheets per hour. The SmartStacker edge trims and gutter cuts up to 7 sheets in one direction and four in the other for full-bleed trimming, and can deliver finished product such as posters or postcards, straight or offset stacks, individual sets or book blocks, or bypass to in-line finishing for saddlestitching, perfect binding, or folding.

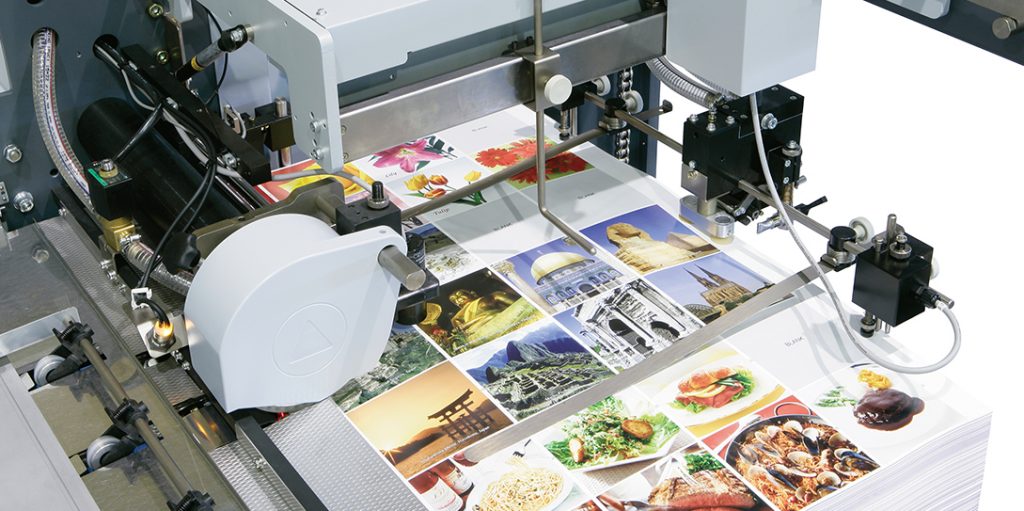

  • Full bleed trimmingWith variable gutter cuts and adjustable edge trimming, the SmartStacker can ensure accurate margins for full bleed images.

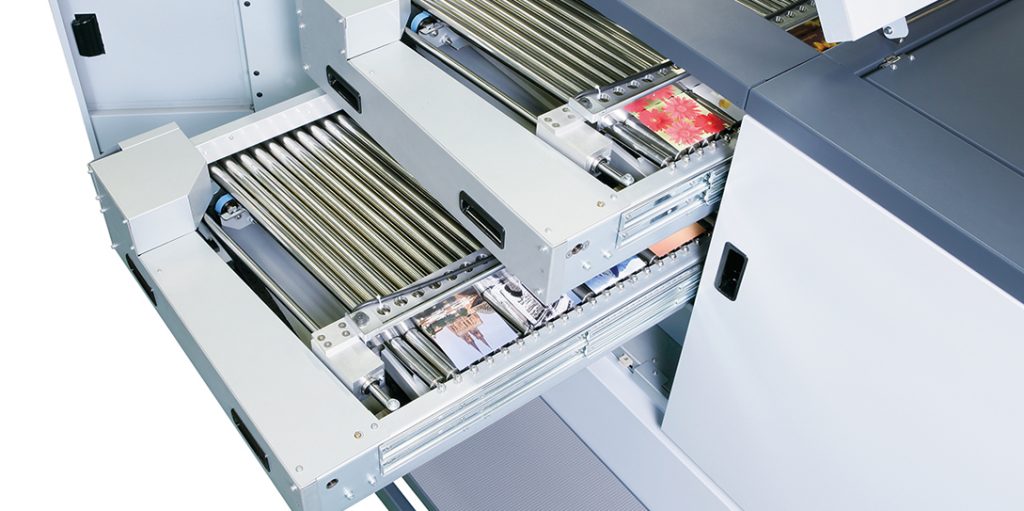

  • Highly adaptableThe system can deliver finished products such as posters or postcards, straight or offset stacks, individual sets or book blocks, or it can bypass to in-line finishing for saddlestitchingperfect binding, or folding.

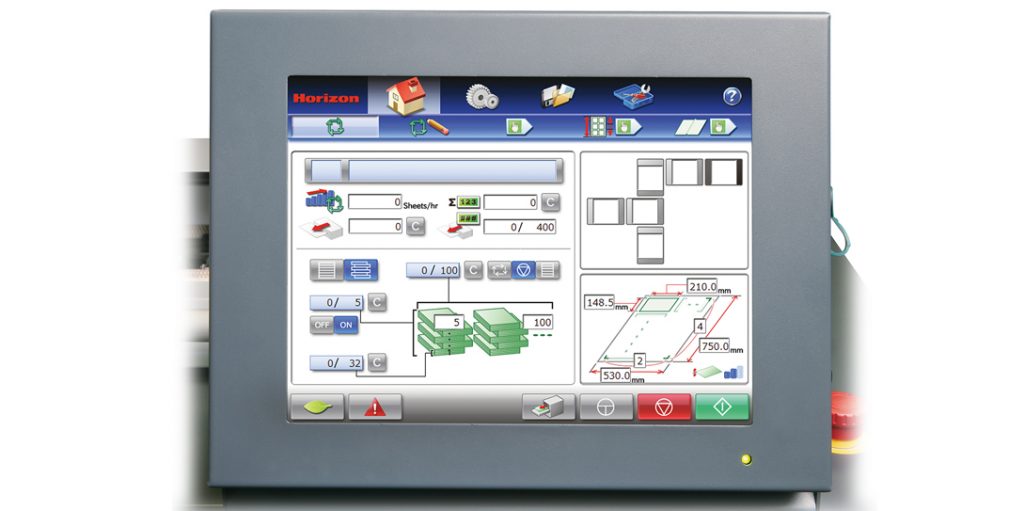

  • No manual interventionThe highly automated SmartStacker process ensures faster job turnaround with less waste and errors, resulting in higher productivity, quality, and profitability.

Specifications

Specifications

Sheet Size Merge Stacker: Min 279.4 x 330 mm / 11.000” x 12.995”
Max 762 x 530 mm / 30.000” x 20.865”
Sheet Size B2 Stacker: Min 380 x 330 mm / 14.965” x 12.995”
Max 762 x 530 mm / 30.000” x 20.865”
Sheet Weight Range: Normal Paper - 81.4 to 370 gsm
Coated Paper (for Merge Stacker) - 90 to 360 gsm
Coated Paper (for B2 Stacker) – 104.7 to 360 gsm
Paper Thickness – 4 to 15 pt
Sheet Feeder Capacity – Max 920 mm / 36.2”
Sheet Stacking – Merge Stacker: Max Height 254 mm / 10.00”
B2 Satcker: Max 850 mm / 33.46”
Number Cuts: 1st Process Unit: 1-7 columns (14 cutters) 2nd
Process Unit: 1-4 rows (8 cutters)
Scoring – Finished Size: Max 177.8 x 254 mm / 7” x 10”
Min 127 x 177.8 mm / 5” x 7”
Production Speed: Up to 46,000 sheets per hour
Electrical: 3 Phase 200 to 220 V, 50 / 60 Hz
