Horizon SMSL-100 SmartSlitter

GM-HOR-SMSL100

Ea. (1)

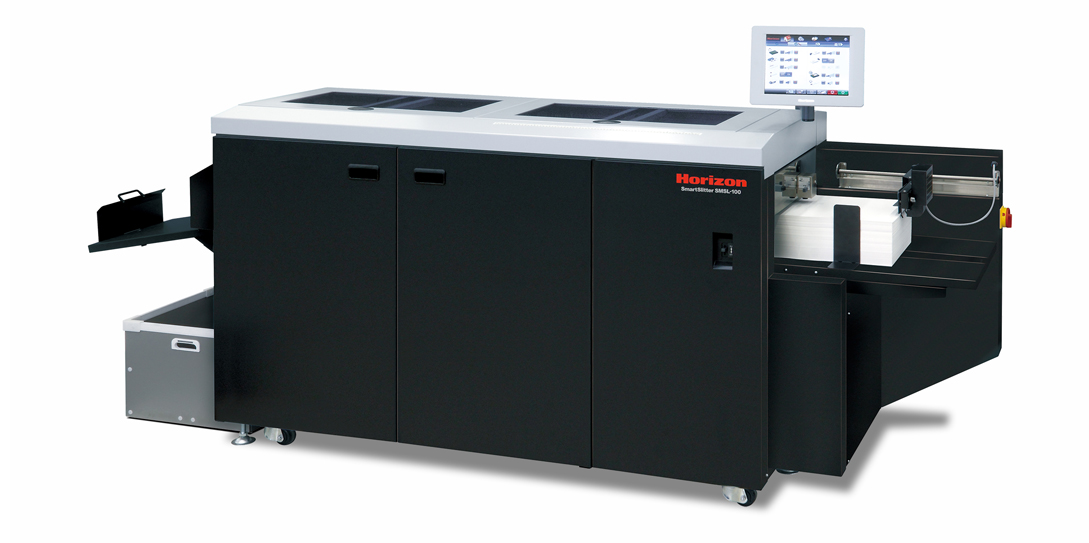

The Horizon SmartSlitter is an all-in-one smart sheet processing system that can slit, gutter cut, edge trim, cross-cut, perforate, and crease all in one pass.

• Paper sizes: 5.5” x 7.6” – 14” x 20”
• 20 creasing lines
• Positive and negative in one pass
• Production: 54 sheets/min.
• Standard business cards: 21-up
Call for Quote

Description

Description

The SmartSlitter is an all-in-one smart sheet processing system that can slit, gutter cut, edge trim, cross-cut, perforate, and crease all in one pass. Perforation and creasing can be performed in both horizontal and vertical directions in the same pass. The skip perforation feature can produce T- and L-perfs, that is ideal for coupons, tickets, and business reply cards. The system can deliver multiple-up greeting cards with or without creasing, table tents, invitations, and much more with both matrix and rotary creasing. For accordion-fold applications or perfect-bound books, up and down creasing can also be performed in one pass.

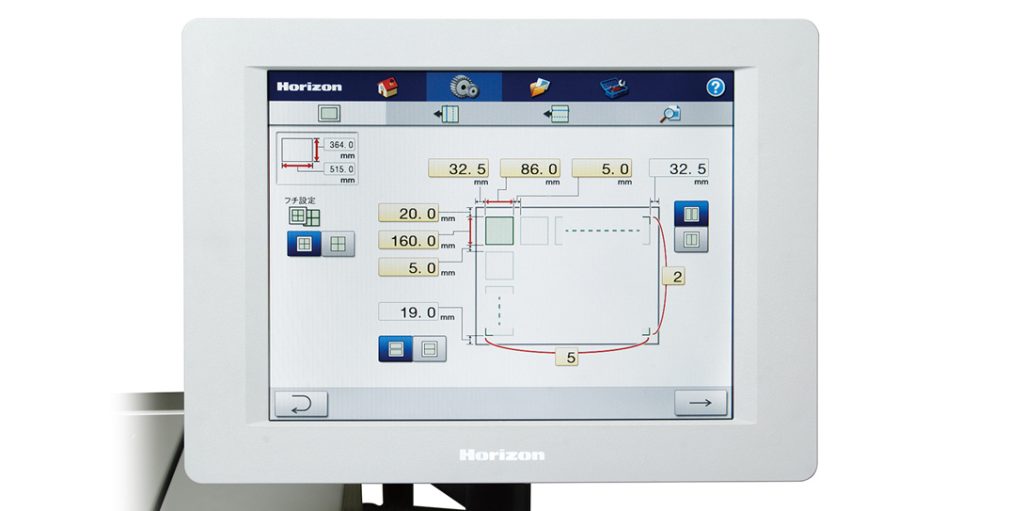

  • Easy-to-use touchscreenThe color touch screen features a simple user interface for easy operation including job set-up via barcode.
  • Mark registrationPrint mark registration adjusts for digital print image shift from sheet to sheet.

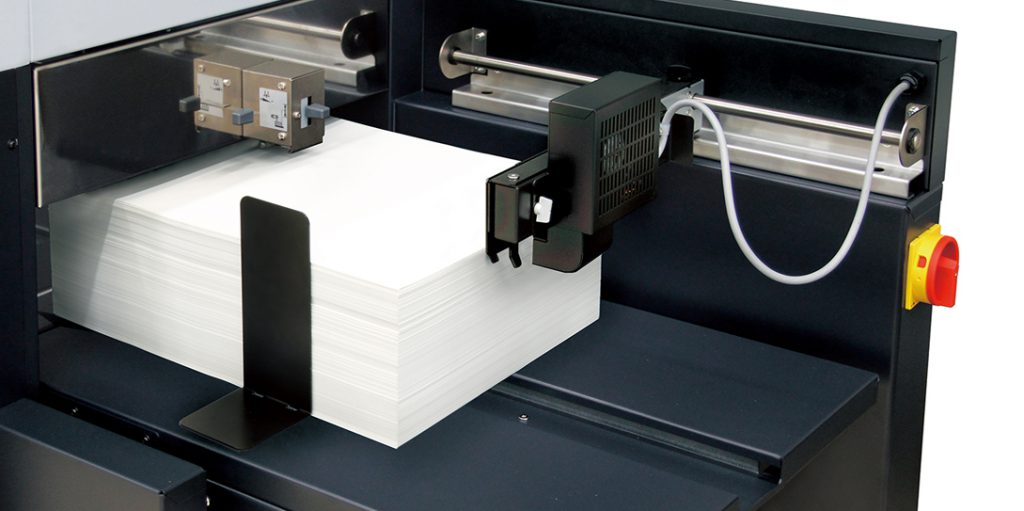

  • Sheet rangeThe system accepts sheets up to 14.33″ x 26.37″ and can deliver finished sheets just under 2″ x 2″.
  • Business card processingStandard size business cards can be printed 21-up on a sheet and processed to a receding stacker for easy handling.

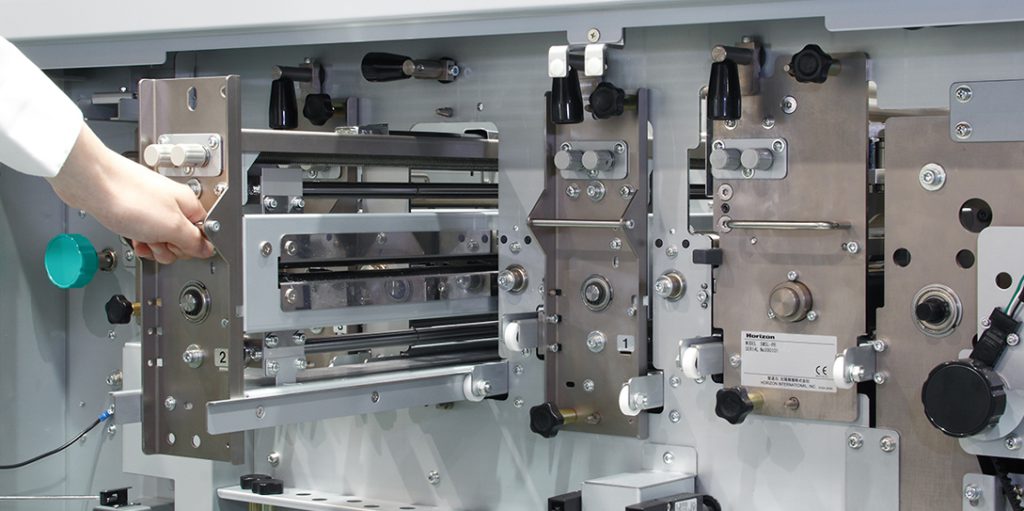

  • Perforation optionsPerforation and creasing can be performed in both horizontal and vertical directions in the same pass. The skip perforation feature can produce T- and L-perfs –  ideal for coupons, tickets, and business reply cards.
  • Creasing optionsThe system can deliver multiple up greeting cards with or without creasing, table tents, invitations, and more with both matrix and rotary creasing. For accordion fold applications or perfect bound books, up and down creasing can also be performed in one pass.
