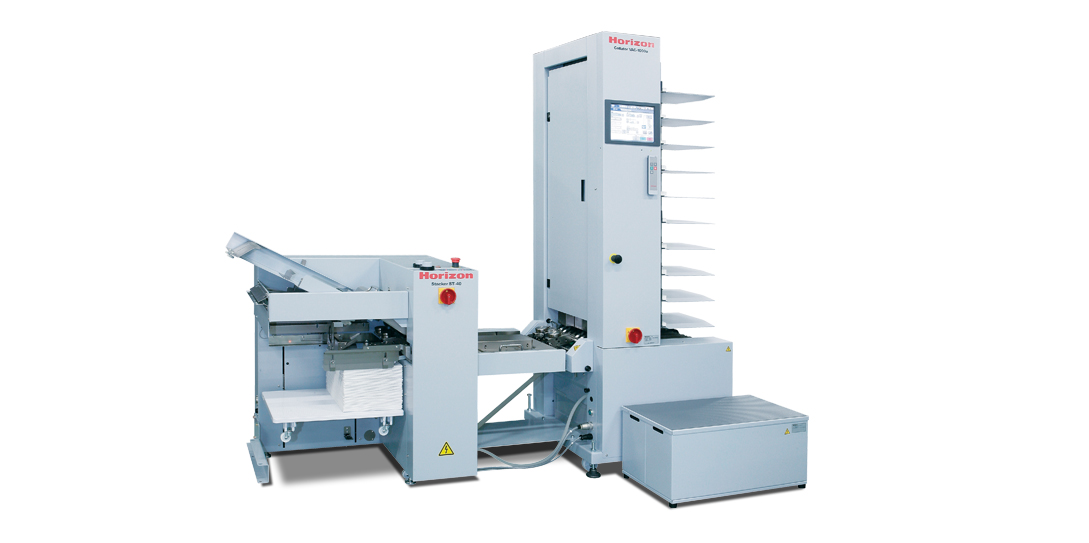

Horizon VAC-1000 Tower Collator

GM-HOR-VAC1000C

Ea. (1)

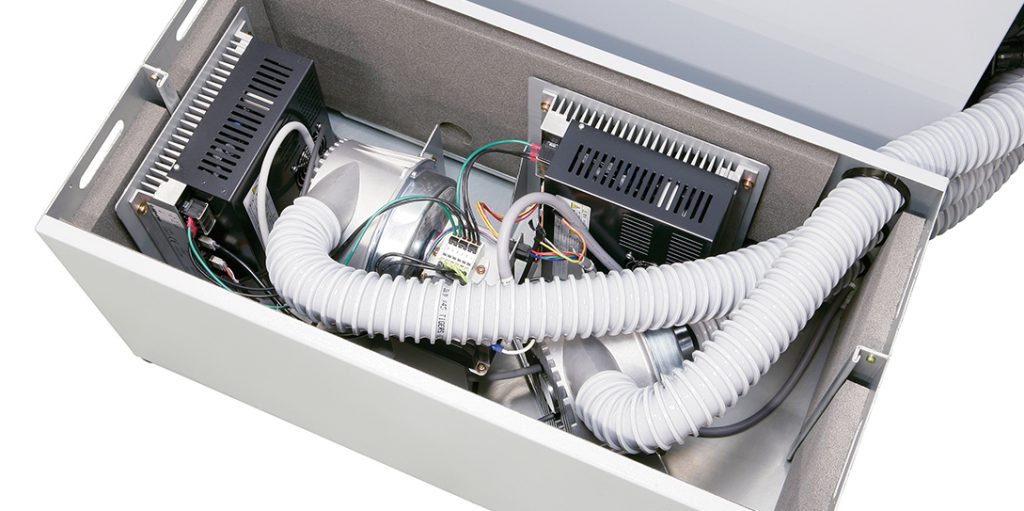

Horizon's unique rotary suction feeding system operates effectively on a wide range of paper stocks. The VAC-1000 towers can also be placed in-line with Horizon bookletmaking systems.

• Patented rotary-pulse vacuum feed system
• Flawless feeding on virtually any stock
• Speeds up to 9,900 sets per hour.
POA

Description

Description

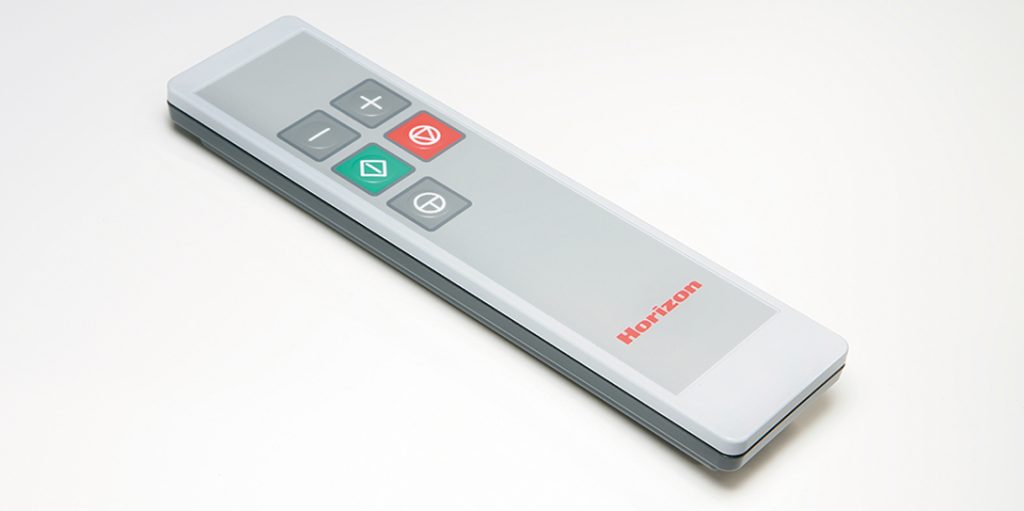

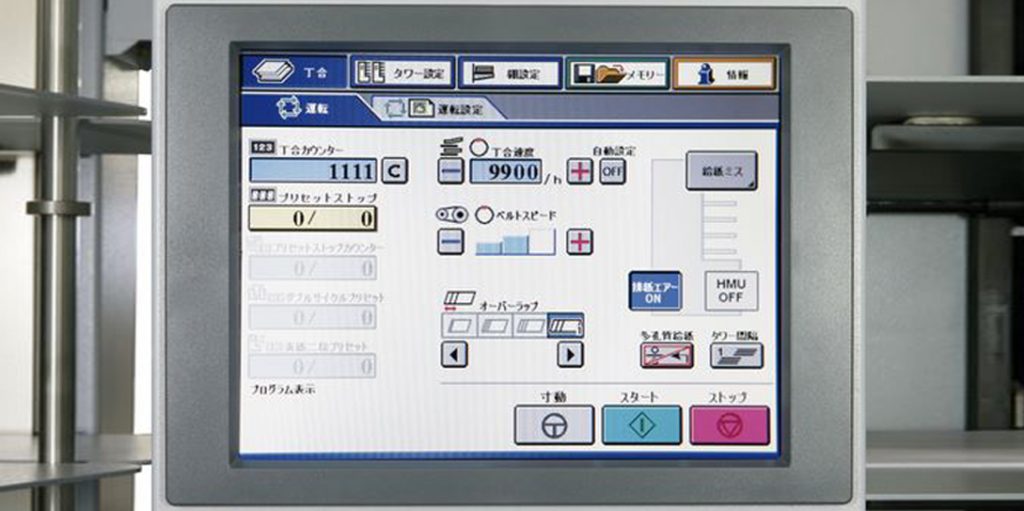

User-friendly operation by color touchscreen and wireless remote control –A large color touchscreen is icon-based for user-friendly operation. The graphical screen guides the user through all set-up procedures with ease. Frequently operated buttons are arranged on a wireless remote control, which is included as standard. The remote provides for collating speed adjustment and start/stop/jog operation, and lets you monitor the feeding or delivering condition.



Reliable sensing capability – Double feed detect sensor.  High-intensity infrared LED’s are employed at each bin for double feed detection. These long-lasting LED’s save the time and cost of replacing individual lamps.

Specifications

Specifications

# of Bins per Tower 10 (Suction-feed)
Maximum Number of Towers 6 (10, 20, 30, 40, 50, 60 Stations)

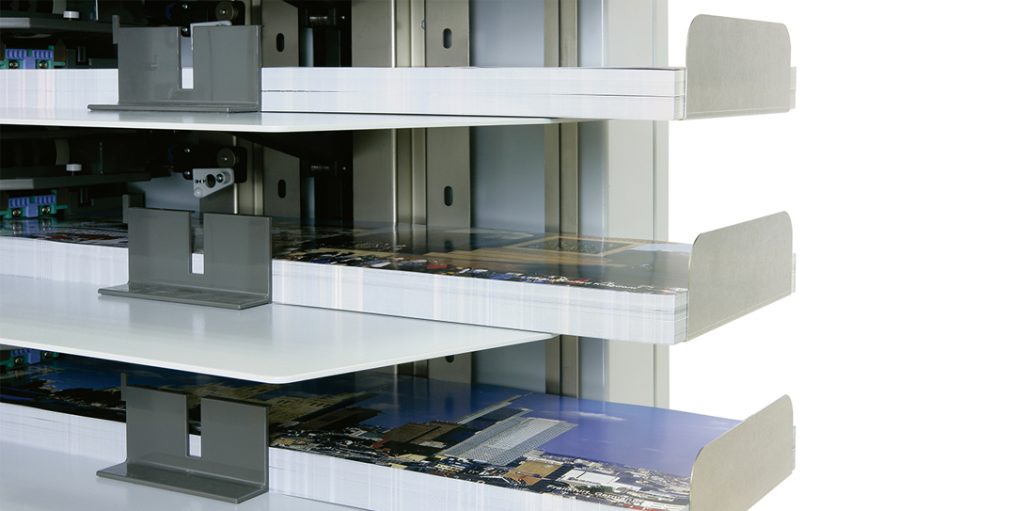

Bin capacity 2.6″
Sheet Size Maximum 13.77″ x 19.68″
Minimum 5.83″ x 5.83″
Paper Weight Coated: 20 lbs. to 55 lbs.
Normal: 14 lbs. to 55 lbs.
8-page fold signature: Up to 27 lbs.
Production Speed(s) 10 bins: Max. 9,900 sets/hr.
20 bins: Max. 6,900 sets/hr.
30 bins: Max. 6,400 sets/hr.
40 bins: Max. 5,000 sets/hr.
50 bins: Max. 4,500 sets/hr.
60 bins: Max. 4,000 sets/hr.
