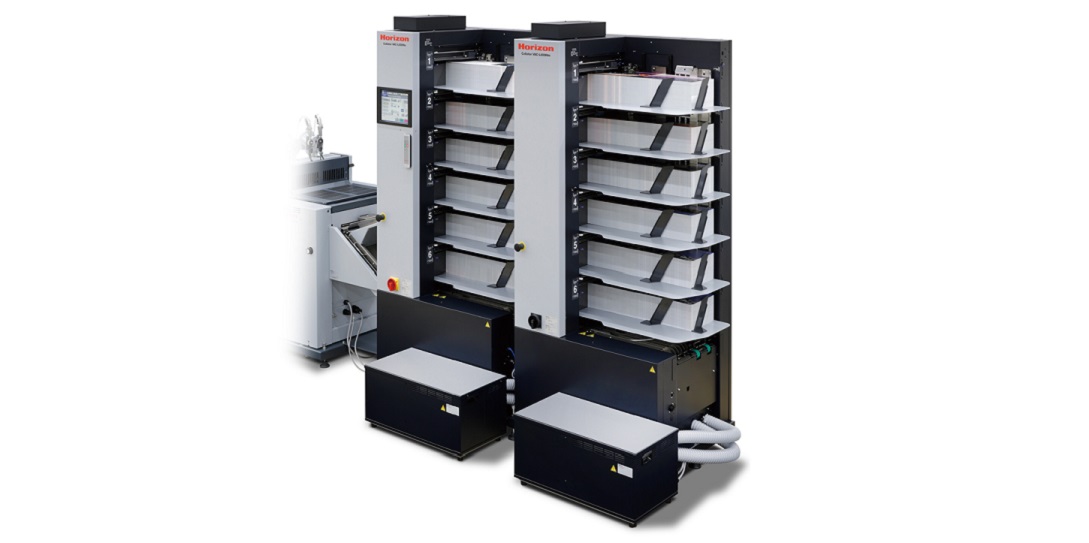

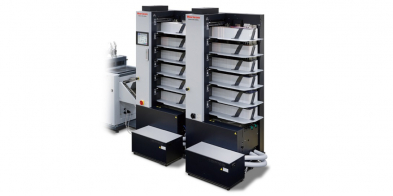

Horizon VAC-L600 Collating Tower

GM-HOR-VACL600HM

Ea. (1)

The Horizon VAC-L600H Air-Suction Collator features an expanded paper size capacity and improved feeding performance. With a suction rotor feed system, the VAC-L600H can reliably and efficiently feed a wide range of paper weights and textures with minimal effort.
POA

Description

Description

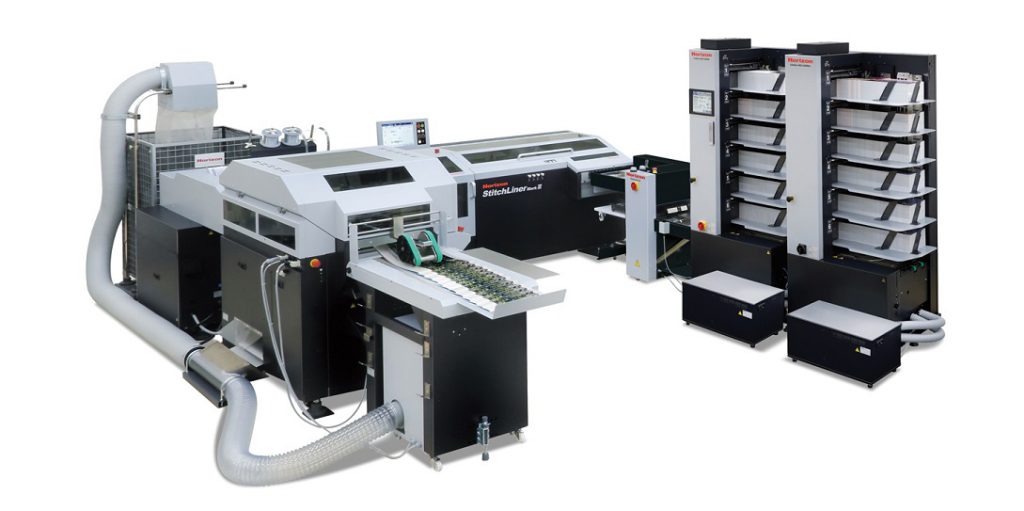

Combined with the StitchLiner Mark III Saddlestitcher or the SPF 200L Bookletmaker, the system is capable of producing A4 landscape booklets, large format calendars, and more with ease and efficiency.

  • Energy savingsPower consumption is reduced by nearly 35% with the VAC-L600H as compared to previous models.

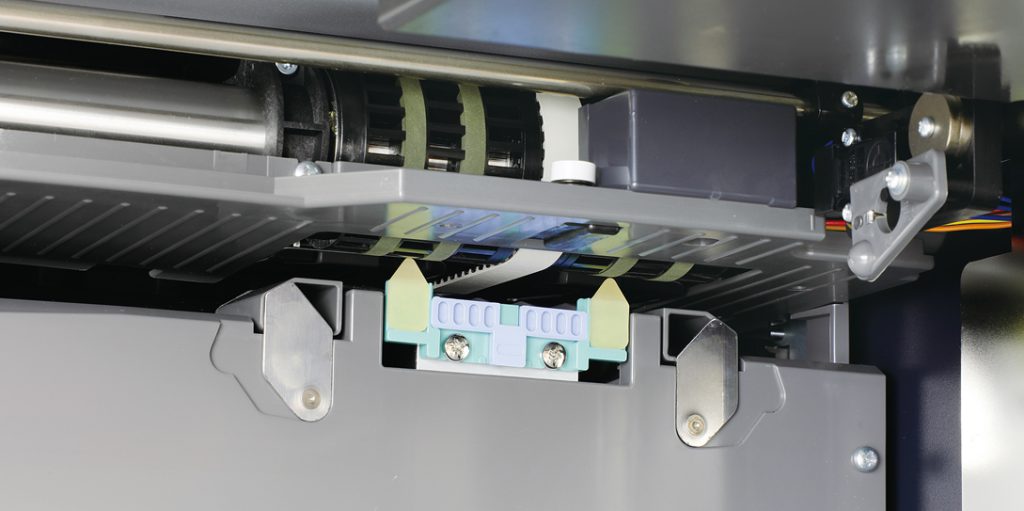

  • Improved feedingIndividual air supply at each bin provides independent adjustment at each bin regardless of paper stock and quality for stable and efficient feeding.

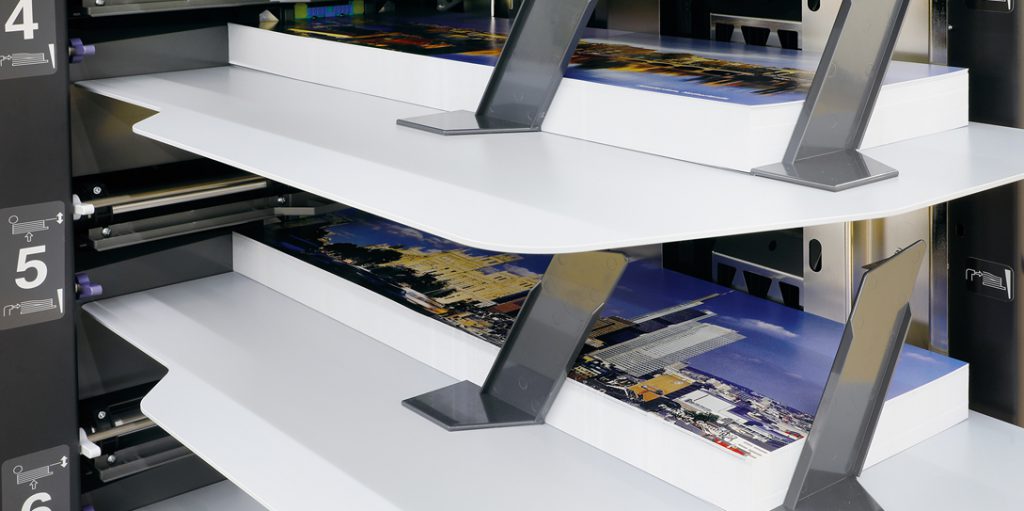

  • Paper size capacitySheets up to 24” in length can be loaded in each bin, and an optional extra side blower can be equipped for stable feeding of large size or heavier weight substrates.
  • Paper flexibilityThe VAC-L600H features optional back-side, air sufficient sheet separation for heavy large format sheets and stable sheet handling of light weight and difficult paper stocks

Specifications

Specifications

Number of Bins per Tower 6 bins
Maximum Number of Towers 6 towers
Max Bin Stack Height 5.11″
Max Bin Stack Weight 57.3 lbs
Sheet Size Max: 14″ x 24.01″
Min: 5.83″ x 5.83″
Sheet Weight Coated: 73.3 to 207 gsm
Normal: 52.3 to 207 gsm
8-page sig: Up to 104.7 gsm
Production Speed(s) Up to 9,900 sets per hour
