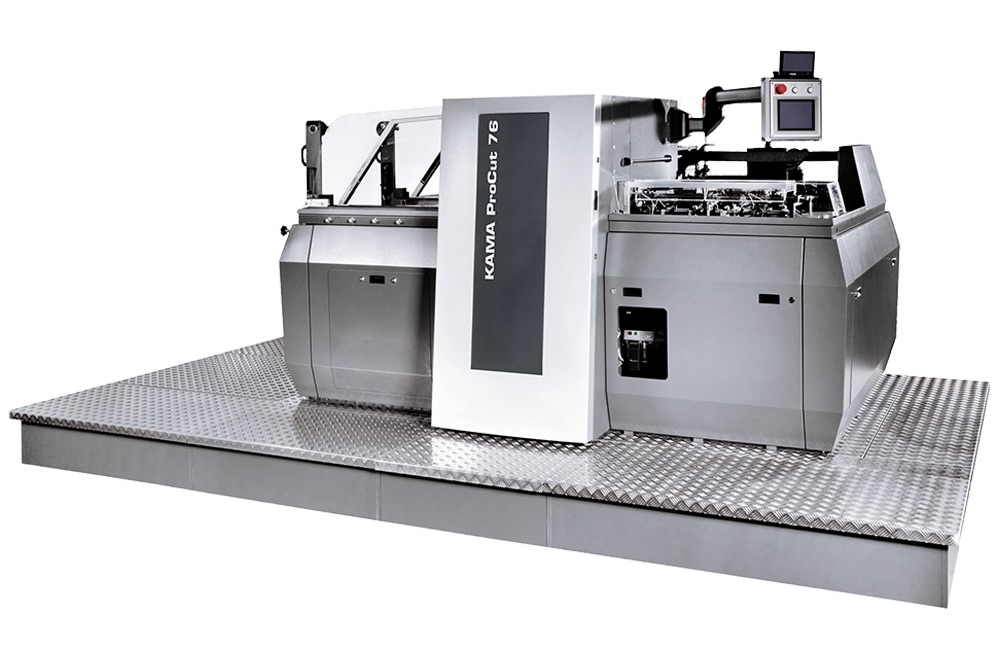

KAMA ProCut 76

GM-PER-KAMAPRO_CUT76

Ea. (1)
The versatile ProCut 76 is suitable for many different applications and is a perfect, state-of-the-art successor for worn-out cylinders and platen presses that are past their use-by date.

• 10 Application in 1 machine
• Electronic double sheet detection
• Hot foil stamping 50% faster
• AutoRegister for finishing with highest accuracy
• Fast changeover
POA

Description

Description

Versatile applications

Flexible & efficient – for small to medium runs.

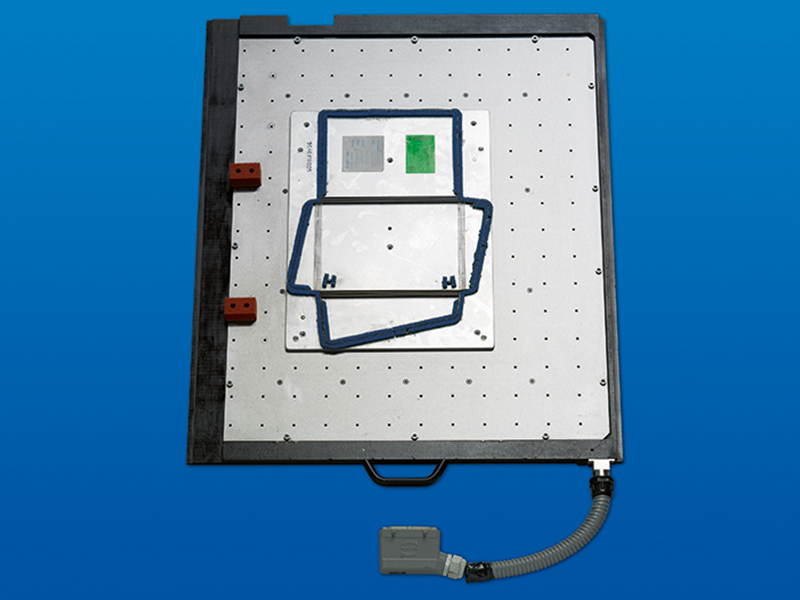

Gentle sheet transport on a single level, clean creasing lines, embossing and cutting with highest registration accuracy and no nicks: the ProCut 76 is a flexible solution for post-press finishing of paper, paperboard and plastics in the sheet size B2. The machine can be retrofitted for hot cutting of plastics or for hot foil enhancements.

Fast conversion

Relevant for short runs and digital printing.

Fast order changes are absolutely essential for smaller runs and digitally printed jobs. On the ProCut 76 it takes just around 5 minutes to convert the setup, which means that the next order can start up quickly – thereby making post-press finishing profitable. The 4+1 system with prepared 1 mm plates also ensures that uptime is maximised. With the type of repeat orders involving intensive creasing, which are common in packaging jobs, this can shorten set-up times by up to 90%.

Highest registration accuracy… including for digitally printed and cut sheets.

With the linear KAMA gripper, ProCut die cutting and stamping machines achieve the highest registration accuracy on the market. The AutoRegister guarantees the highest precision for digitally printed sheets and for sheets that are cut after printing. At aligns every sheet based on the print image, and cutting and creasing lines are accurately positioned to within an accuracy of a tenth of a millimetre.

Smooth transition to the new solution.

Compact machine. Lots of applications in a small space.

With a footprint of around 12m2 including the platform, the ProCut 76 makes do with very little space. Sheets are transported at a right angle in the system, so the compact machine can also be positioned in a corner.



Specifications

Specifications

Paper from 100 g/m²
Paperboard, micro-corrugated board max. 1,500 g/m² (bzw. 1.8 mm)
Plastics (PET, PP, PVC) max. 1,500 g/m²
Maximum sheet size 760 x 600 mm (29 15/16 x 23 5/8 in)
Minimum sheet size 279 x 210 mm (11 x 8 1/4 in)
Speed* 5,500 sheets/h
Cutting force 165 t (1.65 MN)
Maximum cutting size 743 x 585 mm (29 3/8 x 23 1/16 in)
Gripper margin 10 mm
Dimensions (length x width) 4.87 x 2.69 m

Video

Video

Resources

Resources

KAMA ProCut Foil Flat-Bed Die Cutting Machine
