KODAK ACHIEVE T400/T800 Platesetters

EXCEPTIONAL QUALITY AND VALUE
KODAK ACHIEVE T400/T800 Platesetters are robust and reliable CTP devices that deliver the stability of Kodak’s thermal light-valve imaging technology at a surprisingly low cost. They're based on the successful KODAK TRENDSETTER Platesetter platform and available with a variety of automation and speed options.

AUTOMATE YOUR PLATE LOADING
The ACHIEVE T400/T800 Platesetter now has another automation option to help you grow your business. The new Multi-Cassette Unit (MCU) offers automated plate loading and unloading of up to 480 plates. With the MCU, you can have up to four different plate sizes online for improved efficiency and productivity. Five automation options are available, so you can choose the level that matches your business requirements.

CONTROL ON THE GO
Attend to your CTP devices from wherever you are, using only a mobile phone, with Kodak’s Mobile CTP Control App. With the help of its timely alerts and notifications, you'll soon be monitoring devices, managing job queues and running multiple CTPs – from anywhere.

Available now for newer models of KODAK MAGNUS, ACHIEVE, and TRENDSETTER Platesetters, with support for older models coming soon.

KODAK MOBILE CTP CONTROL APP DATASHEET

THERMAL IMAGING TECHNOLOGY THAT'S PROVEN
ACHIEVE Platesetters use Kodak’s TH5 Imaging Technology, which is based on our proven thermal light-valve technology, delivering incredible accuracy and stability. Thermal technology enables true process free plate making, helping you reduce your environmental impact with KODAK SONORA Process Free Plates.

LESS POWER. LESS WASTE.
ACHIEVE Platesetters can be an important part of your company's sustainability strategy. Our latest models let you save power in prepress--over both our previous CTP devices and the competition--without sacrificing productivity or uptime. ACHIEVE T400/T800 Platesetters use only 400 watts of power while imaging, up to 93% less than some competitive devices. Pair an ACHIEVE Platesetter with SONORA Process Free Plates and you're saving energy, water, and chemistry, in prepress, plus reducing waste in the pressroom with accurate and stable plates.

Technology

830 nm platesetter with KODAK SQUARESPOT Imaging Technology, external drum

Automation options

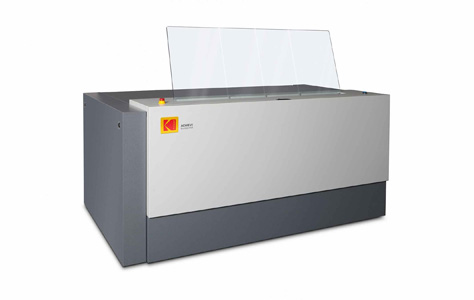

Standard: Semi-automatic plate loading and unloading.

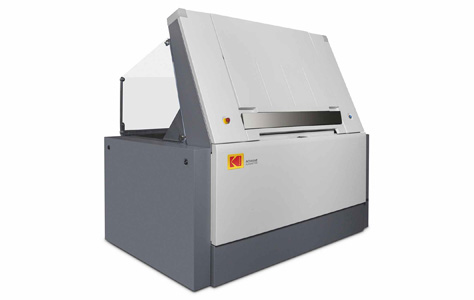

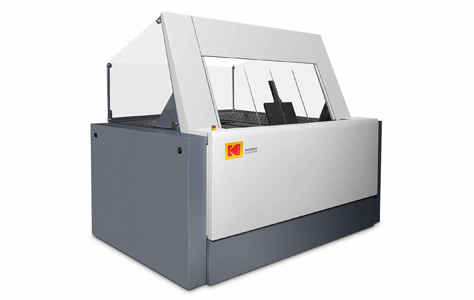

Auto Unload (optional): Semi-automatic plate loading and automatic unloading to plate processor or stacker; optional automatic plate rotation.¹

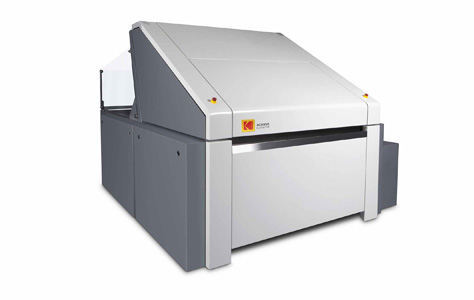

Autoloader (optional): Automated plate loading and unloading of up to 80 plates without slip sheets (0.3 mm); optional automatic plate rotation.¹

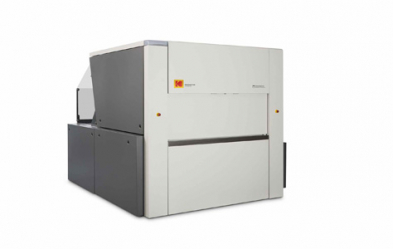

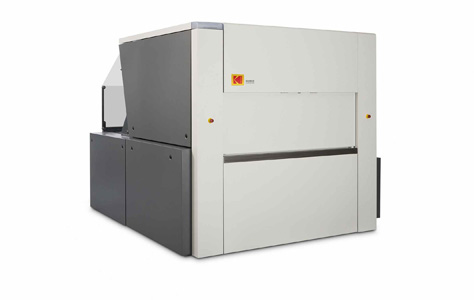

Single Cassette Unit (optional): Automated plate loading and unloading of up to 120 plates (0.3 mm) with automated slip sheet removal, optional automatic plate rotation.¹

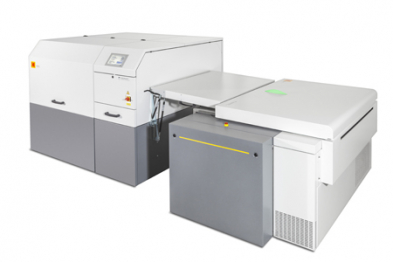

Multi Cassette Unit (optional): Automated plate loading and unloading of up to 480 plates in 4 cassettes, each containing up to 120 plates of the same size and thickness with slip sheets, enabling up to 4 plate sizes online. The required cassette is automatically selected according to job definition. Standard: 2 cassettes. Optional: 4 cassettes total. Optional automatic plate rotation.¹

In-line punch option

Up to 10 customized punch heads. Select from a list of punches qualified for ACHIEVE T400/T800 Platesetters
Optional automatic punching is operated according to press profile selected from the KODAK Workflow
Punch is available on the front edge of the plate only
Automatic punch system adjustment for centering of plate

Media support

Support for a wide variety of KODAK Plates and third-party plates.

Performance Specifications

Throughput at 2400 dpi²³ plates per hour (pph)

T400 Platesetter

For plate size 724 x 838 mm

F speed = 22 pph
X speed = 28 pph

T800 Platesetter

For plate size 1,030 x 838 mm

F speed = 16 pph
X speed = 22 pph

Repeatability

± 5 microns between two consecutive exposures on the same plate left on the drum

Accuracy

± 20 microns between two plates imaged on the same device

Registration

± 25 microns between image and plate edge

Workflow connectivity

Standard KODAK Print Console with TIFF Downloader Software included; connects to KODAK PRINERGY Workflow and most third-party workflow systems. JDF/JMF Connectivity Option enables functionality in the Print Console software to provide job and device status.

Imaging specifications

Resolution

2400 or 1200 dpi

Screening

200 lpi max line screen
Optional: 36-micron KODAK STACCATO Screening

T400 Platesetter

Maximum plate size:
around drum x along drum⁴

838 x 990 mm
Minimum plate size:
around drum x along drum⁴

Standard: 267 x 215 mm
Auto Unload/Autoloader/SCU/MCU: 330 x 270 mm⁵

Maximum image area:
around drum x along drum

827.9 x 990 mm

T800 Platesetter

Maximum plate size:
around drum x along drum⁴

Standard: 838 x 1,143 mm
Auto Unload/Autoloader/SCU/MCU: 838 x 1,118 mm

Minimum plate size:
around drum x along drum⁴

Standard: 267 x 215 mm
Auto Unload/Autoloader/SCU/MCU: 330 x 270 mm⁵

Maximum image area:
around drum x along drum

Standard: 827.9 x 1,143 mm
Auto Unload/Autoloader/SCU/MCU: 827.9 x 1,118 mm

Physical characteristics

Size (H x W x D) / Weight

Standard: 160 x 200 x 120 cm / 650 kg
Auto Unload: 170 x 200 x 128 cm / 762 kg
Autoloader: 184 x 200 128 cm / 796 kg
SCU: 186 x 233 x 231 cm / 1,158 kg
MCU: 191 x 233 x 254 cm / 1,837 kg
In-Line punch system option: 102 x 151 x 120 cm / 177 kg
For long unload table with plate rotation option: height becomes 210 cm,and 53 cm is added to the depth. Add 10 kg to weight.

¹Cannot be combined with in-line punch system.

²Imaging speed and throughput is dependent on media sensitivity. All values are for media sensitivity of 120mJ/cm2

³Tested with KODAK Workflow Solutions. For additional information about the test conditions, please consult your Kodak representative.

⁴Standard plate gauge is 0.15 to 0.3 mm (0.006 to 0.012 in). Option available for plate gauge of 0.15 to 0.4 mm (0.006 to 0.016 in). The 0.40 mm plate size is only supported for the “SA” manual device, or in manual bypass for the AU, AL, SCU and MCU. For plate gauges 0.15 to 0.2 mm (0.006 to 0.08 in) there may be some differences in min and max. plate sizes. For more information, please consult your Kodak representative.

⁵Minimum plate size around drum is 383 mm with the plate rotation option, and minimum plate size for manual bypass is 305 x 215 mm.

The platesetter is a Class 1 Laser Product and fully complies with EN60825-1 and US Federal Regulations 21 CFR 1040.10 - CDRH.
