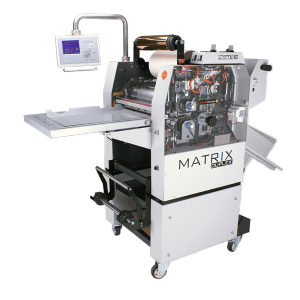

Matrix 370 Pneumatic Laminator

GM-VLT-MX370P

Ea. (1)


The Matrix MX-370P SRA3 Pneumatic single-sided laminating, digital foiling and special effects system. Create eye-catching finishes using foil and special effects with the pneumatic option, achievable with adjustable pressure rollers.

• Semi-automatic feed
• Pneumatic pressure
• Anti-curl technology
• Automatic separator
• Multifunctional - laminate, foil & create spot UV-style effects
POA

Description

Description

The Matrix MX-370DP SRA3 pneumatic duplex laminating, digital foiling and special effects system. Cost and time-efficient laminating with the duplex option, enabling you to laminate both sides at the same time. A pneumatic burst roller allows for seamless sheet separation on all OPP films including double-sided soft touch. Also, create eye-catching finishes using foil and special effects. We’ve used the highest quality components within this system, including Omron switches and Schneider electrics.

Add a Matrix Omni-Flow 370 (SRA3) Deep Pile Feeder for fully automated laminating or foiling.

Specifications

Specifications



Max. Laminating Speed (m/min / feet/min) 10m / 33ft
Max. Sheet Width (mm/inches) 420 / 17"
Max. Laminating Film Width (mm / inches) 340 / 13"
Paper Thickness (gsm) 135gsm
Warm-up Time (mins) 10
Laminating Temperature Range (°C/°F) 0-140 / 32-284
Control Panel Multilingual LCD
Pressure Adjustment Pneumatic
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 240
Power Supply Required (Amps) 32
Power Consumption (W) 2200




Overall Dimmension (mm) 800x1800x1400

Gross Machine Weight (Kg) 248
Warranty 1 Year*
