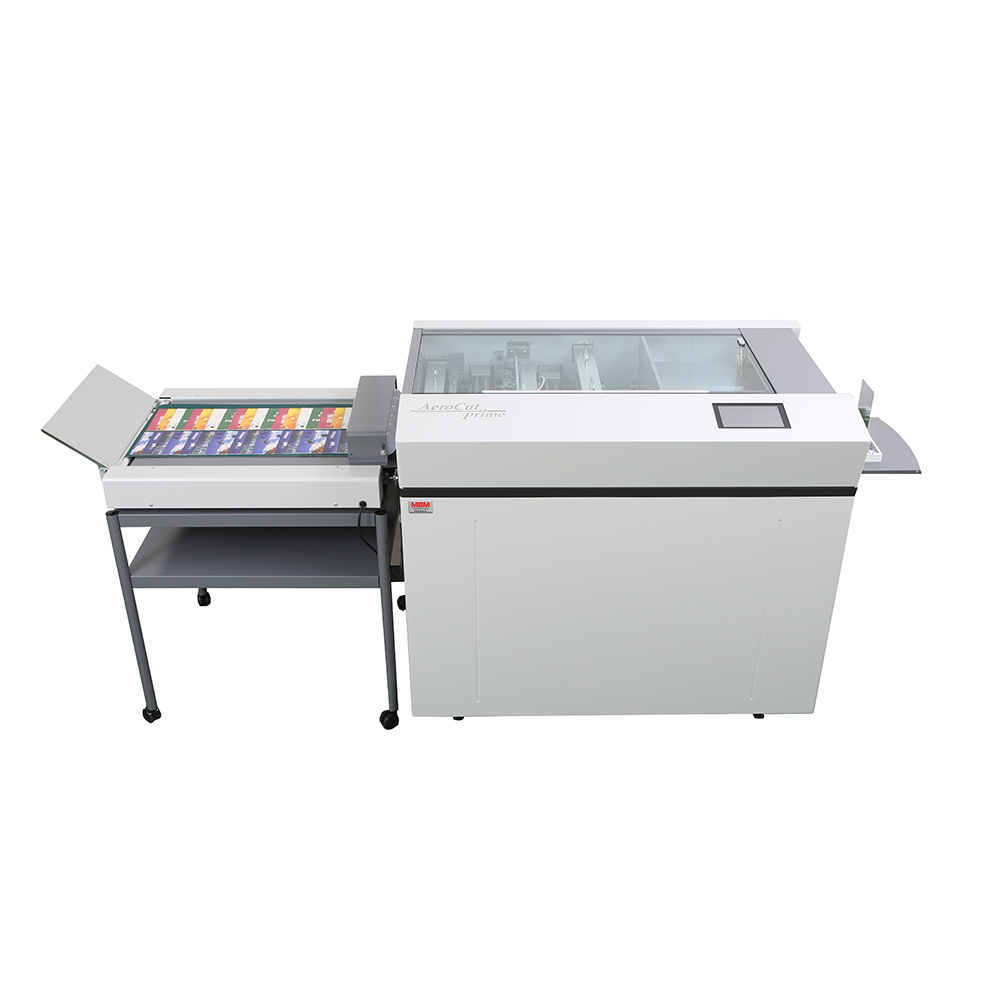

MBM Aerocut Prime Complete

GM-MBM-AEROCUTPRIME

Ea. (1)

The Aerocut Prime is an ideal solution for finishing, especially for short-run digitally printed applications, such as business cards, post cards, invitations, greeting cards, leaflets, tickets and more. It features 2 single blade slitters to trim top & bottom margins, and 2 double blade slitters for center gutters and precise accuracy. The durable blades cut stocks up to 400 gsm.

• Sheet Capacity: 4”
• Paper Size: 8.27” x 8.27” – 14.5” x 47”+
• Speed: 24 sheets/min
• New Lytrod Intellicut software included
• 15,120 business cards/hr / 6,720 post cards/hr / 1,260 folding leaflet/hr
POA

Description

Description

The Prime has the capability to perforate stocks both across and along feeding direction by adding on an optional perforating unit. Flex mode allows operators to cut multiple size cards from a page and add the desired number of crease. Creasing pressure can be adjusted in 5 levels. It features 2 single blade slitters to trim top & bottom margins, and 2 double blade slitters for center gutters and precise accuracy. The durable blades cut stocks up to 400 gsm.

Specifications

Specifications

Sheet Size: 8.27" x 8.27" to 14.5" x 63"
Stock Weights: up to 400gsm
Slitter: 4 units (6 blades: 2 margin blades & 4 gutter blades)
Creaser: Matrix creasing with adjustable depth
Perforation: Strike / Jump Y-perforation (option)
Cross Perforator: X-perforation (Option)
Scoring: (Option)
Feeder: Air-Feed / top feed - “Tri-Suction Feeding Mechanism”
Production Speed: 21 sheets/min (2 cuts & 1 crease)
Barcode Reader: (Option)
Template Imposition Software: Lytrod VisionDirect
Preset Jobs: 263 preset + 150 customerized jobs in memory
Electrical: Single phase 200- 240VAC, 50/60Hz (Standard 110V)
Machine Dimensions: 30.3 x 57.6 x 41.13
Shipping Weight: 573 lbs.


Specifications
8.5 x 11 Template
11 x 8.5 Template
11 x 17 Template
12 x 18 Template
13 x 19 Template
Operator's Manual

Video

Resources

Literature
