MBM AeroDieCut

GM-MBM-AEROCUTDIE

Ea. (1)

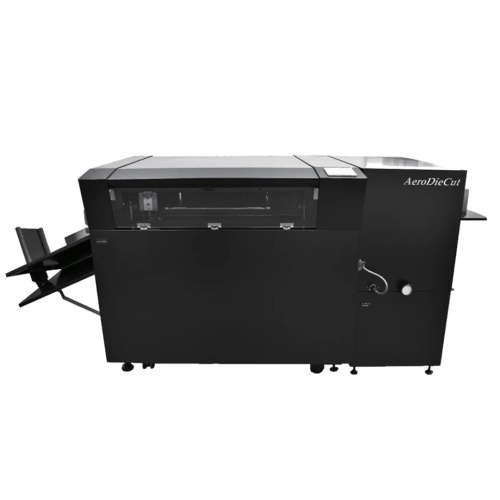

The MBM AeroDieCut is a die cutter with a twist. The fun twist is the fact that it’s the first Die Cutter that can safely use existing traditional platen dies so there is no need to have new expensive steel dies made - plus it can cut, crease, perforate, and emboss in a single pass.

• Small die adapter chase included
• Patented Tri-suction feeding
• Multi-up ability: up to 5 times per sheet

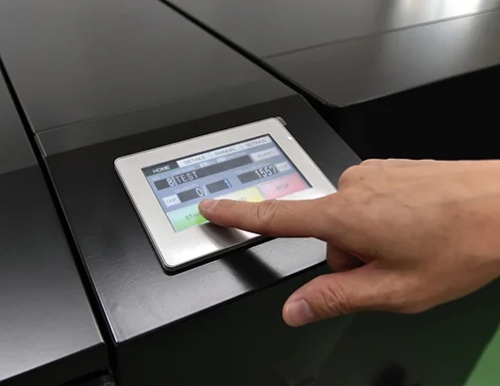

• 4.3” colored touch screen
POA

Description

Description

The all-new AeroDieCut utilizes traditional platen dies that are advanced in technology, easy to obtain, cost effective, and produces a quality finish. It’s safe, intuitive, and compact.

Customers want finished printed materials faster, personalized, and in the quantity they need, whether it’s for unique shaped cards or boxes. The AeroDieCut gives printers and marketing service providers a new way to do this.

The AeroDieCut is easier to operate than traditional large format die cutters and more productive than cutting plotters and laser cutters. The AeroDieCut can process complex cuts, creases, and perforations in a single pass.

In the past, die cutters were large, heavy duty, and could be used for decades, but they required skilled operators and were, above all, dangerous. The AeroDieCut is designed to be used by anyone, anywhere, with a focus on operator safety and minimal mechanical adjustments.

Print engines are getting better every year, but even the best printed material is no good without finishing. The AeroDieCut can turn your printed materials into a variety of applications such as cards, boxes, swing tags, shelf talkers, etc. The AeroDieCut will help turn your creativity into reality and help your business grow.

A chase adaptor and die board rack to hold die boards and cutting plates comes included with the AeroDieCut.

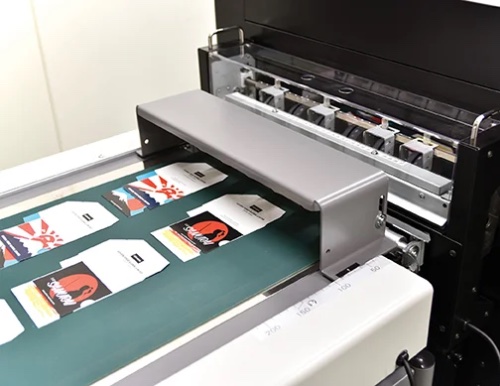

Optional accessories: The optional separator deflects wastes into a waste bin as the die-cut paper is delivered. The optional conveyor delivery table makes collecting process more efficient. A 3 piece stainless steel cutting plate set and a 3 piece aluminum cutting plate set are also available as options.

Specifications

Specifications

Max speed: 1,000 sheets per hour
Max. paper size: 14.3” x 20.25”
Max. finishing size: 12.2 x 19”
Paper weight: 120 - 400 gsm
Die board size: 13.75” x 21.65”
Die board thickness: .7”
Cutting rule height: .91” - .93”
Power supply: 100 - 120 V, 50/60 Hz
Dimensions (W x D x H): 106” x 42” x 43”
Weight: 903 lbs.
