MBM Triumph 4315 16.8" Semi-Automatic Paper Cutter

GM-MBM-4315

Ea. (1)
Dependable semi-automatic tabletop cutter with electric blade drive, manual fast-action clamp, and EASY CUT blade activation.

• Front table digital display (cm or inches) for precise back gauge positioning
• Patented lever-activated, fast-action clamp
• Precision side guide
POA

Description

Description

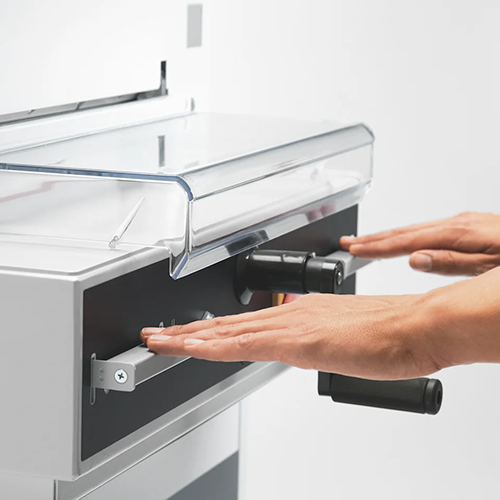

Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; transparent safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.

Electric blade drive. Spindle-guided back gauge with calibrated crank. Front table digital display (cm or inches) for precise back gauge positioning. Bright, LED optical cutting line. Patented lever-activated, fast-action clamp. Precision side guide. High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. All-metal construction. Optional stand, or cabinet with storage shelves.

• Dependable semi-automatic tabletop cutter with electric blade drive, manual fast-action clamp, and EASY CUT blade activation
• Electric blade drive

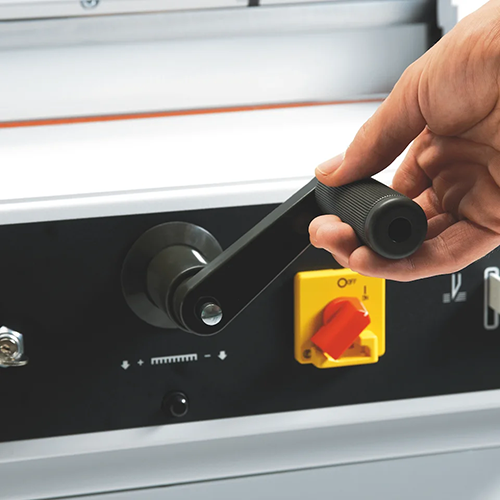

• Spindle-guided back gauge with calibrated crank

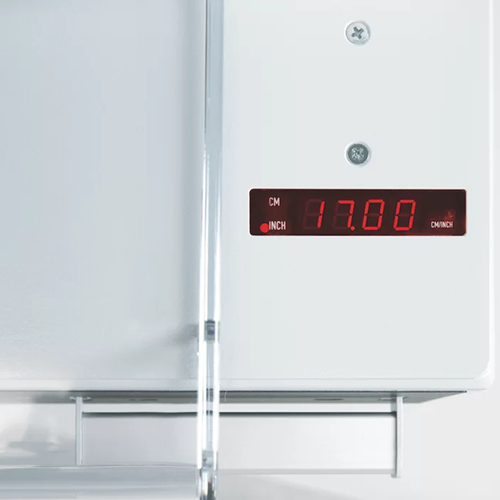

• Front table digital display (cm or inches) for precise back gauge positioning
• Bright, LED optical cutting line
• Patented lever-activated, fast-action clamp
• Precision side guide
• High quality, German steel blade
• Solid steel blade carrier and adjustable blade guides
• All-metal construction

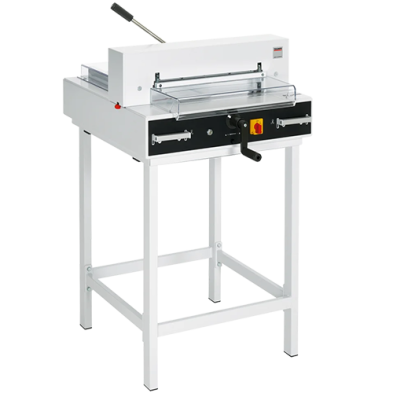

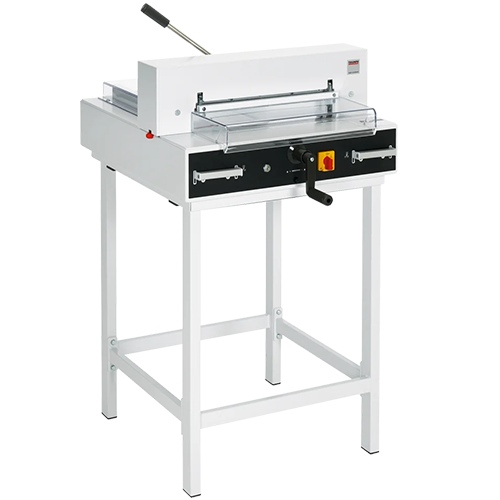

• Optional stand (shown above), or cabinet with storage shelves
• UL and C UL approved



Specifications

Specifications

Cutting width, inches: 16 7/8
Cutting height, inches: 1 1/2
Narrow cut, inches: 1 3/8
Length behind blade, inches: 17
Electrical requirements: 115 V, 60 Hz
Motor output, horsepower: 3/5
Dimensions (D x W x H), inches: 34 1/4 x 25 x 14 1
Shipping weight, pounds: 191
