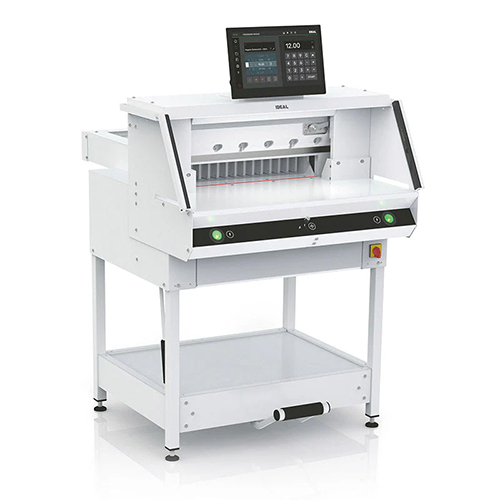

Features
- Display and operation via 15.6“ multi-touch display.
- PRECISION DRIVE: Electro-mechanical precision blade drive and hydraulic clamp drive (patent pending).
- Programmable and manual backgauge positioning with optimum operator ergonomics and logic.
- Adjustable backgauge with narrow separations and plastic gliders.
- Spindle guided precision backgauge.
- Clamp bar with infinitely programmable adjustment of the required clamping pressure via the touchscreen.
- Electronically controlled false clamp plate, ideal for delicate work - optimizes the distribution of the clamping force where required.
- Independent mechanical foot clamp (patent pending).
- EASYTOUCH: Simple and safe two-hand cut release - via push buttons with illuminated colored status display.
- Infinitely dimmable front table illumination (LEDs).
Product Details
Powerful software of the latest generation
• Functional, clear graphical user interface with intelligently divided display
• Cut Control: Main functions directly accessible via self-explanatory icons
• Intuitive creation of cutting programs with user guidance and programmable clamp pressure
• User guidance for handling the material to be cut during programme run
• Data Manager: Freely selectable folder structure and individually nameable file names for the saved cutting programs/print jobs
• Favorites function; most recently used files
• Convenient search function
• Extensive, individual, programmable operator/default settings: different customers, projects, print jobs; presettings for clamp pressure, backgauge speed, etc.
• Adjustable energy-saving mode
• Error log
• Cutting programmes stored via 4GB USB stick (USB stick included in the scope of delivery
Touch display with intuitive operation, and many customized setting options
• Illumination of the working area
• Cutting line indicator
• Touch screen brightness
• Backgauge feed speed
• Clamping pressure
• Dimmable cut activating buttons
• Volume of touchscreen speaker
• Measurement readout switchable at any time (mm, cm, inches)
• Everything in view on the display - all screen views show centrally: time; clamping pressure; cutting table illumination; cutting line indicator; display loudspeaker
• Status of IR safety light beam
• Left: Menu bar with main functions; saved favorites in the standard view. Right: numeric keypad
Backgauge program control
• Electrically operated backgauge control, individually programmable via touchscreen
• Program view: current program steps are displayed in the wheeler
• Multilingual operator guidance
• Units of measurement can be changed at any time, selectable in mm / cm / inch (display accuracy to 1/10 mm or 1/100 inch)
• Thousands of programs with any number of program steps storable (up to 99 repeat cut sequences can be integrated into a program as one single program step)
• Program runs automatically
• Direct input of measurements via numeric keypad for manual work
• Integrated calculator (four basic arithmetic operations)
• Automatic SET function for reference measurement
• EJECT function – for pushing out the paper – can be integrated into cutting programs
