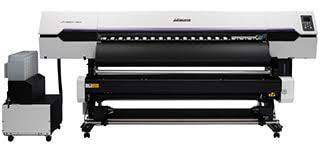

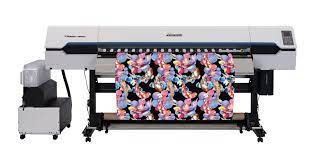

Mimaki JV330-130 63.8" Wide Format Printer

Mimaki JV330-130 63.8" Wide Format Printer

PM-MIM-JV330_130

Item Availability (unit) Ea. (1)

Compatible with Mimaki Original Eco-Solvent inks, this print & cut device offers commercial level workflows and quality for high demand print businesses.

• Multiple media roll handling unit
• Integrated XY Slitter
• 2 staggered heads (6400 nozzles)

POA

Qty:

Description

Compatible with Mimaki Original Eco-Solvent inks, this print device offers commercial level workflows and quality for high demand print businesses. Capable of producing a wide range of sign & graphic applications including durable banners, signs, decals, posters, and more for internal and external use.

The 330 Series is a flagship model that combines Mimaki Engineering's technological expertise accumulated over more than 20 years to deliver beautiful image quality, high productivity, and high value added functions that assist in saving work.

JV330 Series is a mid- to high-end eco-solvent inkjet printer that has been added to the line-up to meet customer needs in addition to the entry-level 150 Series and standard 300 Series, 300 Plus Series.

Next level image quality: Higher image sharpness and more uniform density, while reducing banding even at low pass printing.
Next generation ink: 2L inks without the weight. Customize printer to fit your workspace.
Media changer: Space saving system that can hold three rolls of media and fast media change by a single operator.
XY Slitter: Inline sheet-fed cutting system that reduces post-processing.
Improved Operation: Throughput is increased while operator mistakes are reduced.

Specifications

Printhead	On-demand piezo head (2 staggered printheads)
Print Resolutions	600dpi, 800 dpi, 900dpi, 1200dpi
Print Speed (4 Color Mode)	up to 1076.4 SqFt/Hr (100.00 m2/h)
Maximum Print Area	53.5″ (1360 mm) \| 63.4″ (1610 mm)
Maximum media width	53.9″ (1370 mm) \| 63.8″ (1620 mm)
Maximum Media Thickness	up to 0.04″ (1.0 mm)
Maximum Media Weight	One roll：Max. 45 kg (99.2 lb) or less Three rolls：Total 90 kg (198.4 lb) or less
Ink Type	Eco-solvent ink SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W) BS4 (C, M, Y, K)
Interface	Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
Power Supply	Main unit：(Single phase AC100-120/200-240V±10％, 50/60Hz±1Hz) ×2
Power Consumption	Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode)
Operational Environment	Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level
Dimensions (W × D × H)	2,920 × 1,215 × 1,305 mm (115.0 x 47.8 x 51.4″) \| 3,170 × 1,215 × 1,305 mm (124.8 x 47.8 x 51.4″)
Weight	789.2 lbs. (358 kg)
Certifications	VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA, GREENGUARD Gold Certificate No. 67174-420
