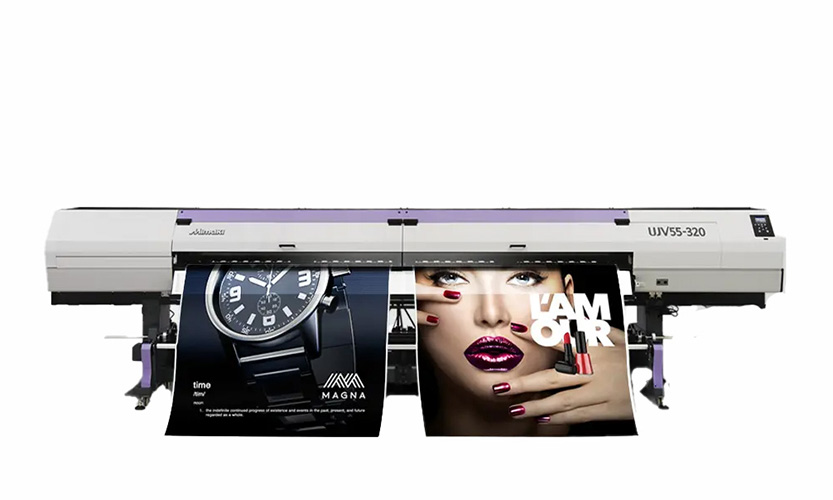

Mimaki UJV55-320 UV Inkjet Printer

PM-MIM-UJV55_320

Ea. (1)
With its seven ink colors, including white, this superwide UV-LED printer can print oversized graphics and panels, or two rolls simultaneously. It can produce banners, retail displays, wallpaper, and more.

• Maximum print speed of 1,184 SqFt/Hr
• Layered and dual roll printing with up to six colors and white
• Mimaki Proofing Panel for instant print quality check
POA

Description

Description

The UJV55-320 UV-LED printer features seven ink colors including white for printing on transparent or colored media. It can print oversized graphics and panels, or can print simultaneously onto two rolls. This new model produces vibrant colors with high opacity and consistent color for optimal viewing in day/night applications, and features an LED light for checking backlit signage during printing.

– Roll size flexibility

>one 129.7-inch (3250 mm) wide roll

>or two rolls up to 60 inches (1524 mm) each

– Mimaki Proofi ng Panel (MPP) for instant print quality checks

– High productivity of up to 1184 SqFt/hr (110 SqM/hr)

– Gigabit Ethernet connectivity

– Outdoor durability with Mimaki original LUS-120 inks

– C, M, Y, K, Lc, Lm and W ink available, with bulk ink reservoir

– Variable dot printing and Mimaki Advanced Pass System (MAPS) for exceptional image quality

– Nozzle Check Unit and Recovery System for maximum productivity

Specifications

Specifications

Printhead: Four on-demand piezo heads in a staggered array
Print resolution: 300dpi, 600dpi, 900dpi, 1,200dpi
Print speed (4 color mode): up to 1184.03 SqFt/Hr (110 m2/h)
Maximum Print Area: 126″ (3200 mm)
Maximum media width: 128″ (3250 mm)
Maximum Media Thickness: up to 0.04″ (1 mm)
Large driver shaft: 220.5 lb (100 kg) or less
Roll holder: 39.7 lb (18kg)
Ink Type: U.S. & Canada- LUS-120 | Mexico, Central & South America- LUS-120
Interface: Ethernet 1000BASE-T, USB2.0 Hi-speed
Power Supply: Single-phase (AC200 – 240V±10%) 50/60Hz ±1Hz 18A or less
Power Consumption: AC200V-4.3kW or less
Operational Environment: Temp 68° – 86° F (20-30° C), Humidity 35–65 % RH (Non condensing)
Dimensions (W × D × H): 223.6″ x 48″ x 56.7″ w/ink supply unit
Weight: 2006 lbs. (910 kg)
