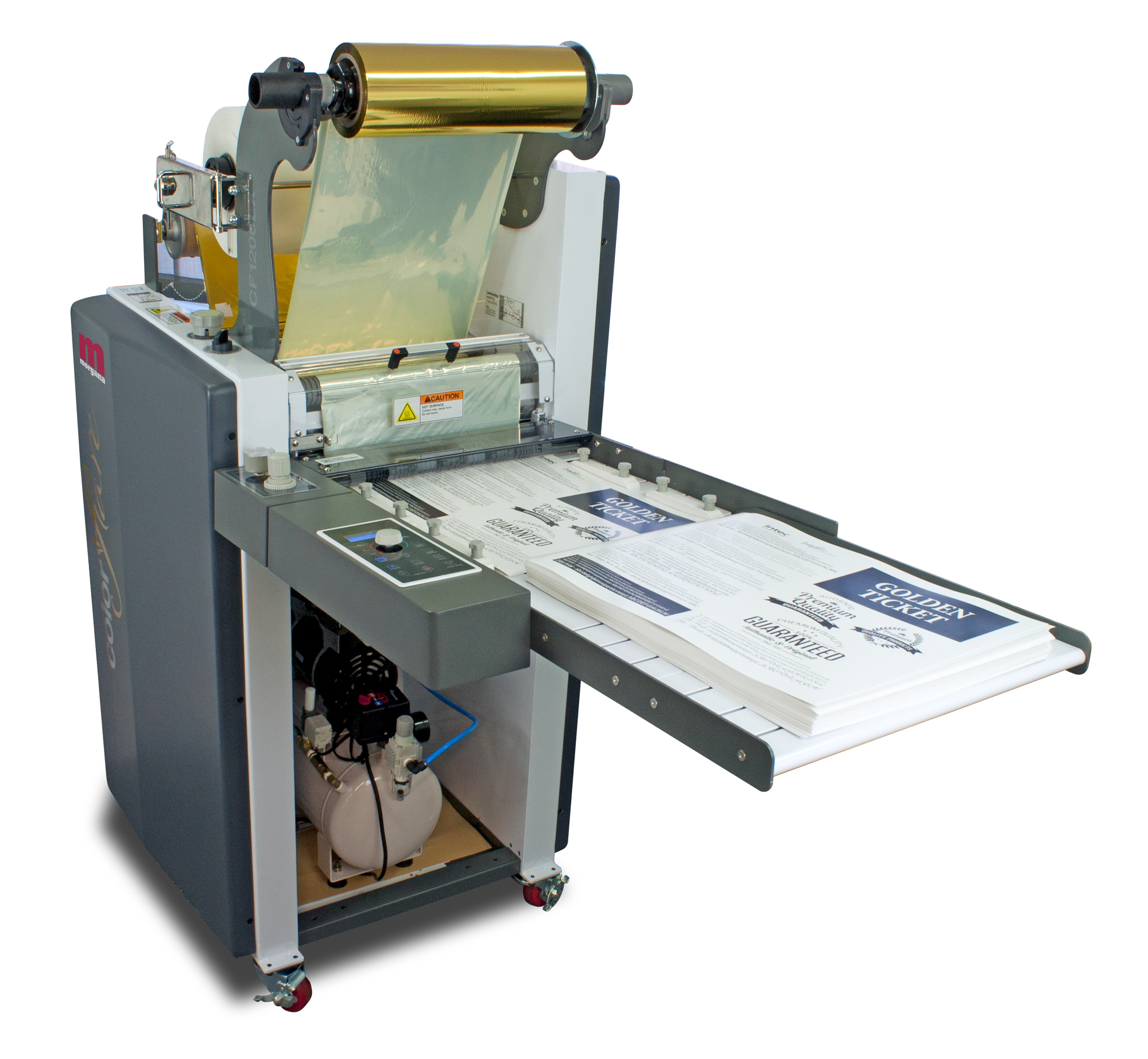

Morgana 1200LX ColorFlare Foiling and Laminating System

GM-MSY-CF1200LX

Ea. (1)
The Morgana CF1200 ColorFlare series delivers superb foiling, lamination and holographics. Featuring the easy-to-use touch control panel, and the innovative ‘burst separation’ system ensuring clean perpendicular trims between sheets. Current models now also ship with the up-rated air compressor and new ‘pull roll control’ function for improved foiling results.

• Lamination pull roll control
• Advanced dual process for lamination and foil flaring technologies for digital applications
• Multiple jobs and flaring effects possible with just 1 machine
POA

Description

Description

CF1200LX is the flagship model and features the new ‘extended inclined delivery table’, perfect for enhancing semi automatic feeding and also long media. This model comes with the ‘premium finish flaring assembly’, which helps achieve a superior mirror finish when foiling large areas – as well as all the standard features of the CF1200 base model it also comes with the advanced ‘2nd flaring roller assembly’, which allows a laminate and a foil roll to be resident on the machine at the same time – reducing set up times and enabling a much faster switch between media.

Typical applications include

  • Packaging
  • Presentation folders
  • Business cards
  • Certificates
  • Menus
  • Book covers
  • Wedding stationery
  • Labels
  • Swing tickets
  • Point-of-sale
  • Photo albums
  • Gift vouchers
  • Posters
  • Gift boxes

Key Features
Even more pneumatic pressure

  • Ships with premium finish flaring assembly*
  • Level, +5° or +10° inclined delivery table
  • Lamination pull roll control
  • Advanced dual process for lamination and foil flaring technologies for digital applications
  • Multiple jobs and flaring effects possible with just 1 machine
  • Up to 32.8′ (10 metres) per minute
  • 2,500 Letter (SRA4) sheets per hour
  • Burst separation wheel
  • 28lb 140lb – (100 – 400gsm / micron)
  • No need to have traditional UV coating for diverse effects

Specifications

Specifications

Laminating speed: 4.26'/min - 32.8'/min
Base substrate thickness:(100gsm to 400gsm)
Front roller diameter (Top): high glossy chrome 4"
Front roller diameter (Bottom): silicon 3.15"
Power consumption: (1.5kw)
Warm-up time: 5 minutes
Heating System: Infrared heater
Laminating temperature: Maximum 302°F
Temperature control: Capacitive touch screen
Speed Control: Capacitive touch screen
Display system: LCD display
Roller pressure: Pneumatic cylinder
Film core size: 3" / Dual - 2.28", 2"
Air compressor: 100 psi maximum pressure, 3.2 CFM open flow (50 Hz)
Temperature sensing method: Internal thermo-couple inserted in the roller shell
Maximum sheet size: 15" x 48"
Power requirement:(AC 220~240V, 50/60Hz, 7A)
