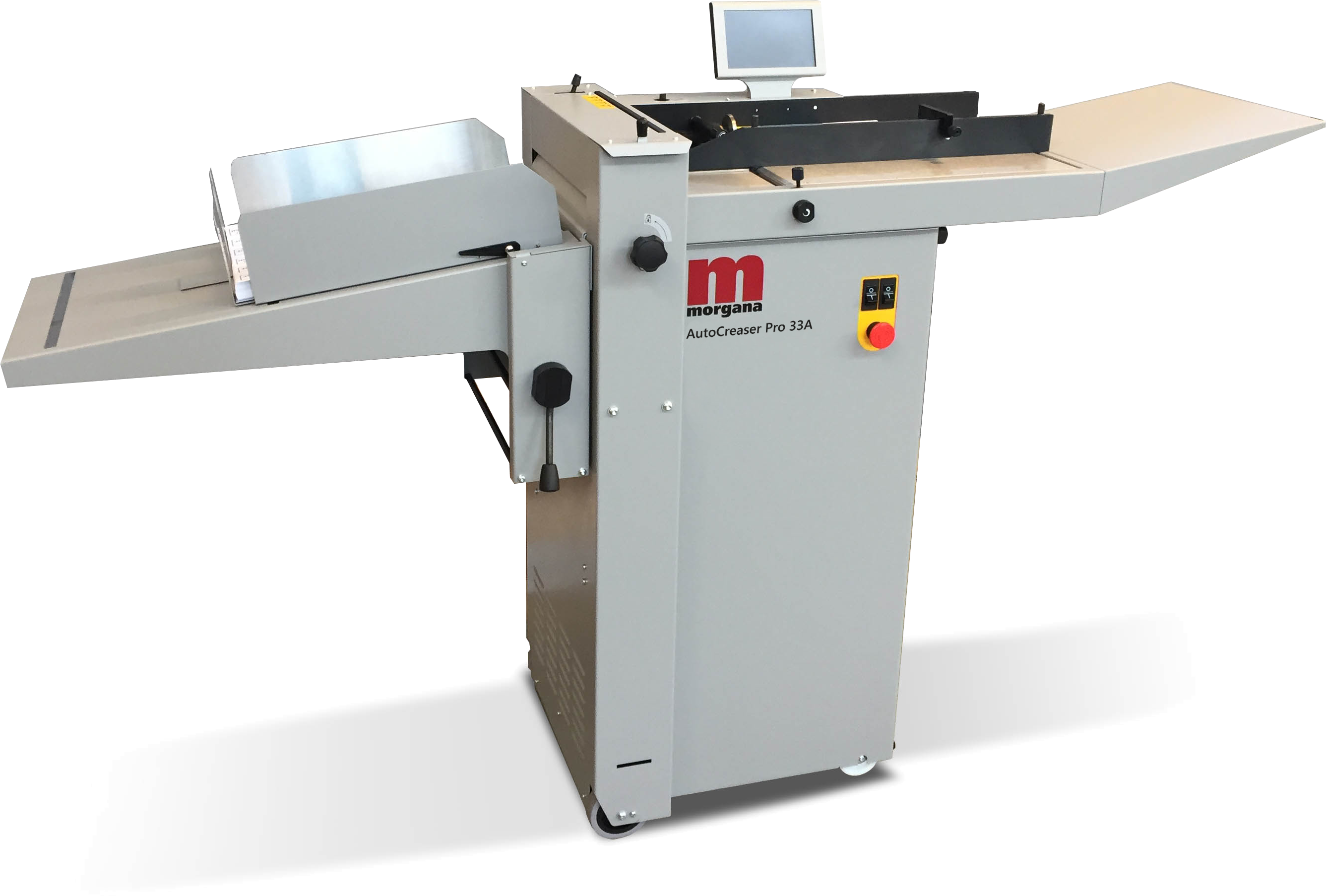

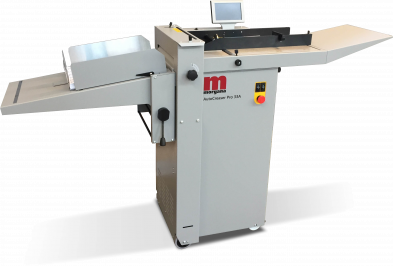

Morgana AutoCreaser Pro 33A

GM-MSY-ACPRO33

Ea. (1)

The AutoCreaser Pro 33A provides the complete solution to the problem of cracking that occurs when folding digitally printed output.

• 7” SmartScreen touch screen
• New ‘QuickBlade’ creasing blade
• Fully automatic
• Up to 16 creases per sheet
• Up to 0.4mm (approx 400 gsm)*
POA

Description

Description

The AutoCreaser Pro 33A provides the complete solution to the problem of cracking that occurs when folding digitally printed output. It is equally effective in dealing with conventionally printed card, laminates or cross-grained stock.

Using the SmartScreen touch screen is simplicity itself. Key in the sheet length (popular sizes are pre-set), touch the fold type for the finished product (letter, gate etc) and press the green button. The AutoCreaser Pro 33A will automatically calculate where the creases need to be and set them accordingly. Any minor changes to the crease position can be made by touching an arrow in the relevant direction.

The AutoCreaser Pro 33 runs at 8,500 A4 sheets per hour, and 11,000 A5 sheets per hour. Now fitted with a NEW ‘QuickBlade’ creasing blade that can easily changed in a few seconds without needing any tools, making it our most productive creaser to date.

The optional perforation kit gives the ability to perforate along the direction of sheet travel, cross perforate and part cross perforate, widening the range of applications the AutoCreaser can produce, this includes vouchers and tear off tickets.

Key Features:

• New ‘QuickBlade’ creasing blade

• 7”  SmartScreen touch screen

• Intuitive and easy to use

• Fully automatic

• Up to 16 creases per sheet

• Takes stock up to 0.4mm (approx 400 gsm)*

• Rule and matrix guaranteed for life

• 8500 sheets per hour

• 50 alpha numeric memory

• Adjustable crease depth & square

• Long length and cross perforation

 Optional cross and part perforation kit



Specifications

Specifications



Maximum sheet size  27.5” x 12.6”
Minimum sheet size

8.5” x 5.5” or 8.2” x 4” with optional narrow sheet guide

 Maximum paper thickness 0.015” (approx 150lb cover)* including laminated material
Minimum paper thickness 0.004” (approx 20lb bond)*
Maximum number of creases per sheet 16
Maximum number programmed applications 50 alpha numeric memory
Minimum repeat crease distance 0.03” (depending on paper weight)
Minimum crease distance from lead edge 0.09”
Minimum crease distance from tail edge 1.37”
Speed per hour 8500 sph (8.5” x 11”), 11,000 sph (5.5” x 8.5”)
 Dimensions L 57” x W 20.5” x H 48.2”
Weight 266lb (+110lb for packing)
Power requirement 240v 50/60hz
Options

Narrow creasing blade/Narrow sheet guide/AutoFold Pro folding unit/Cross and part perforation kit
