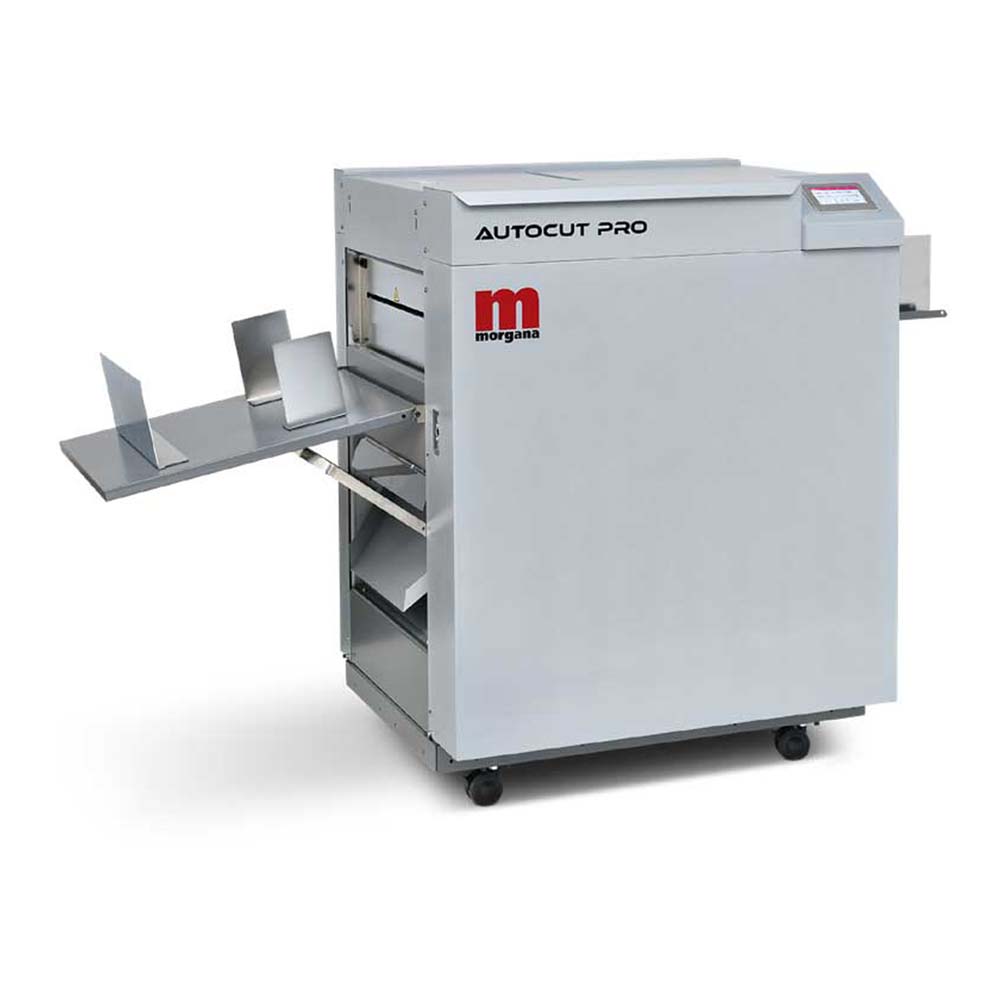

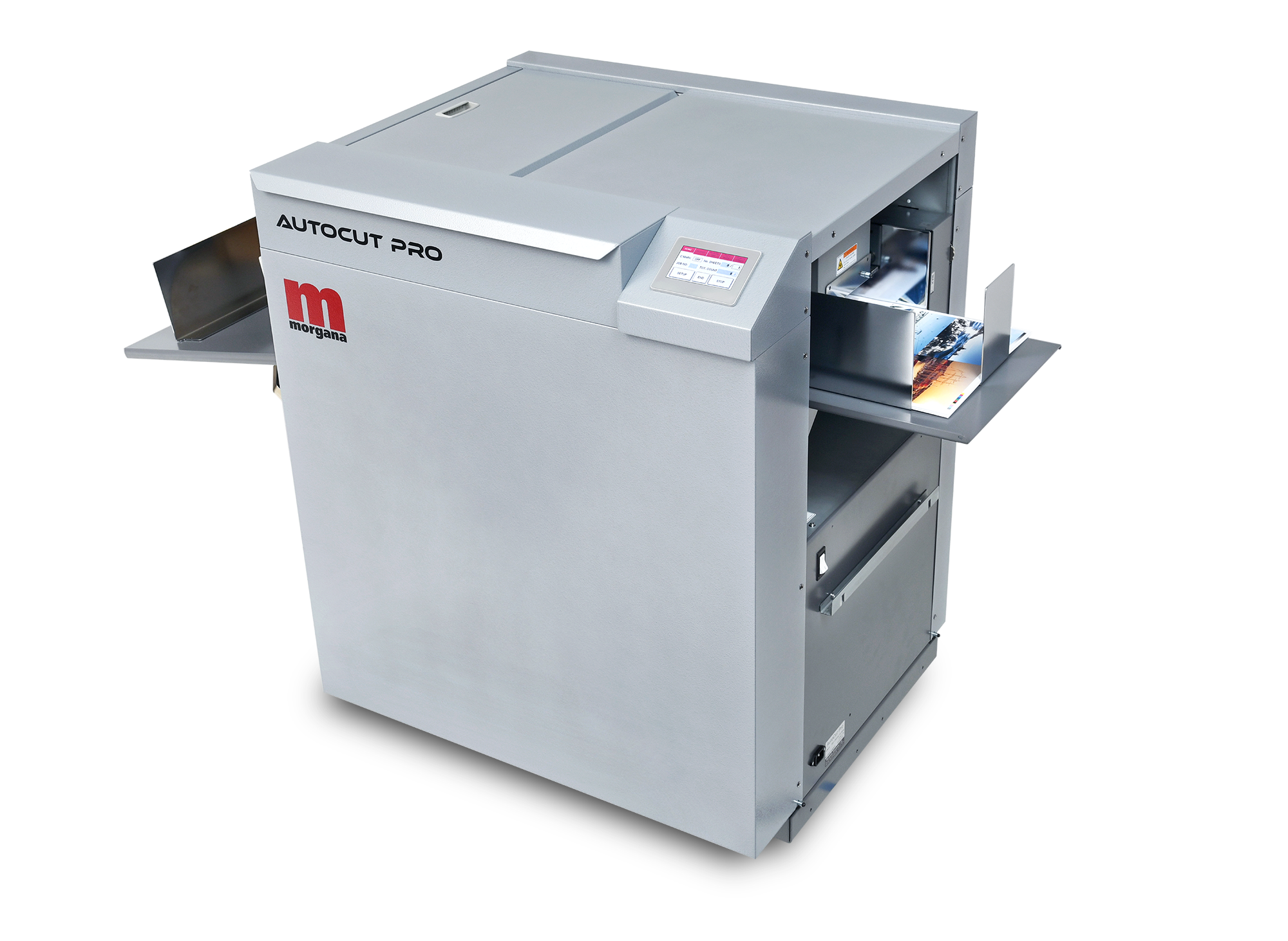

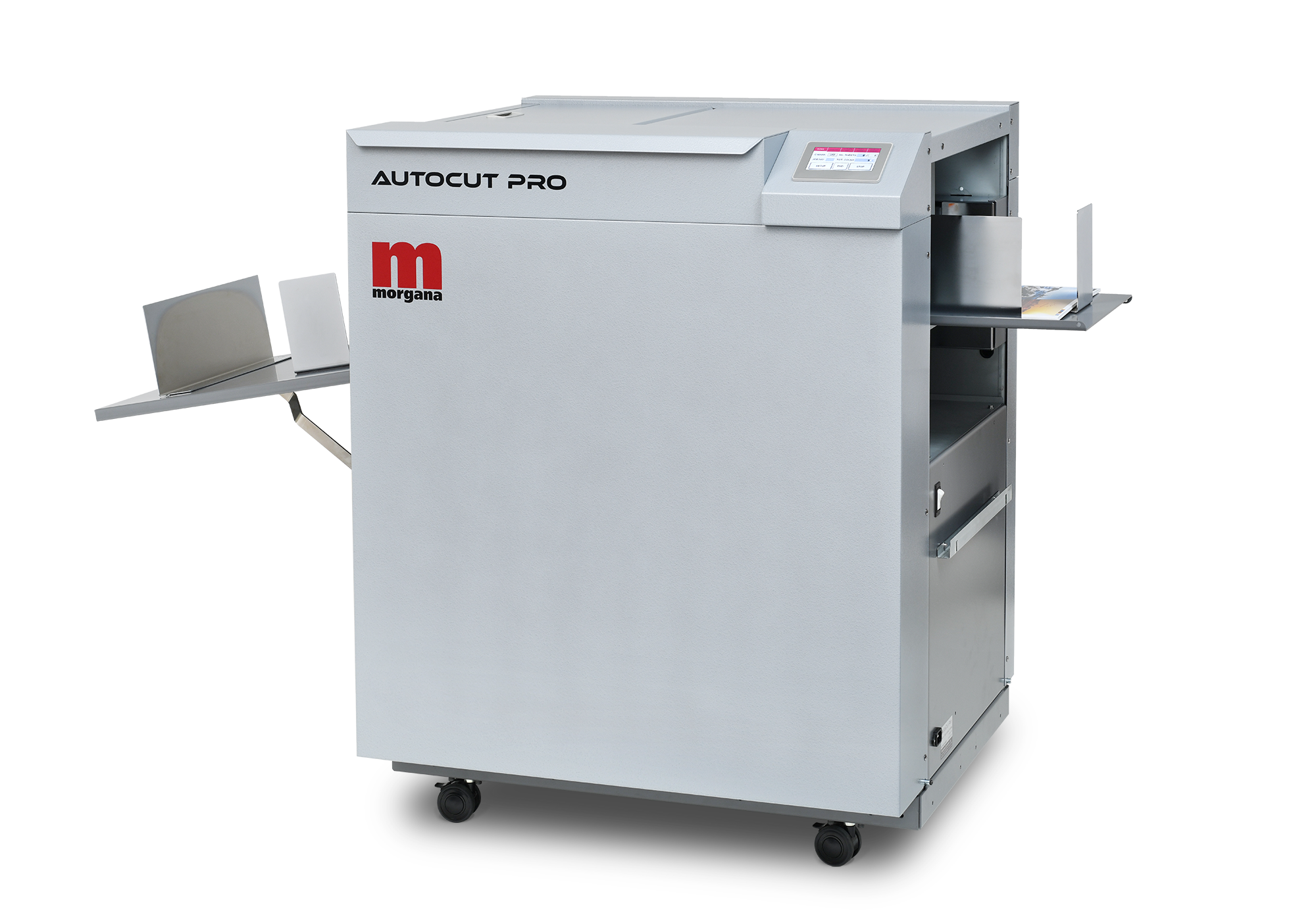

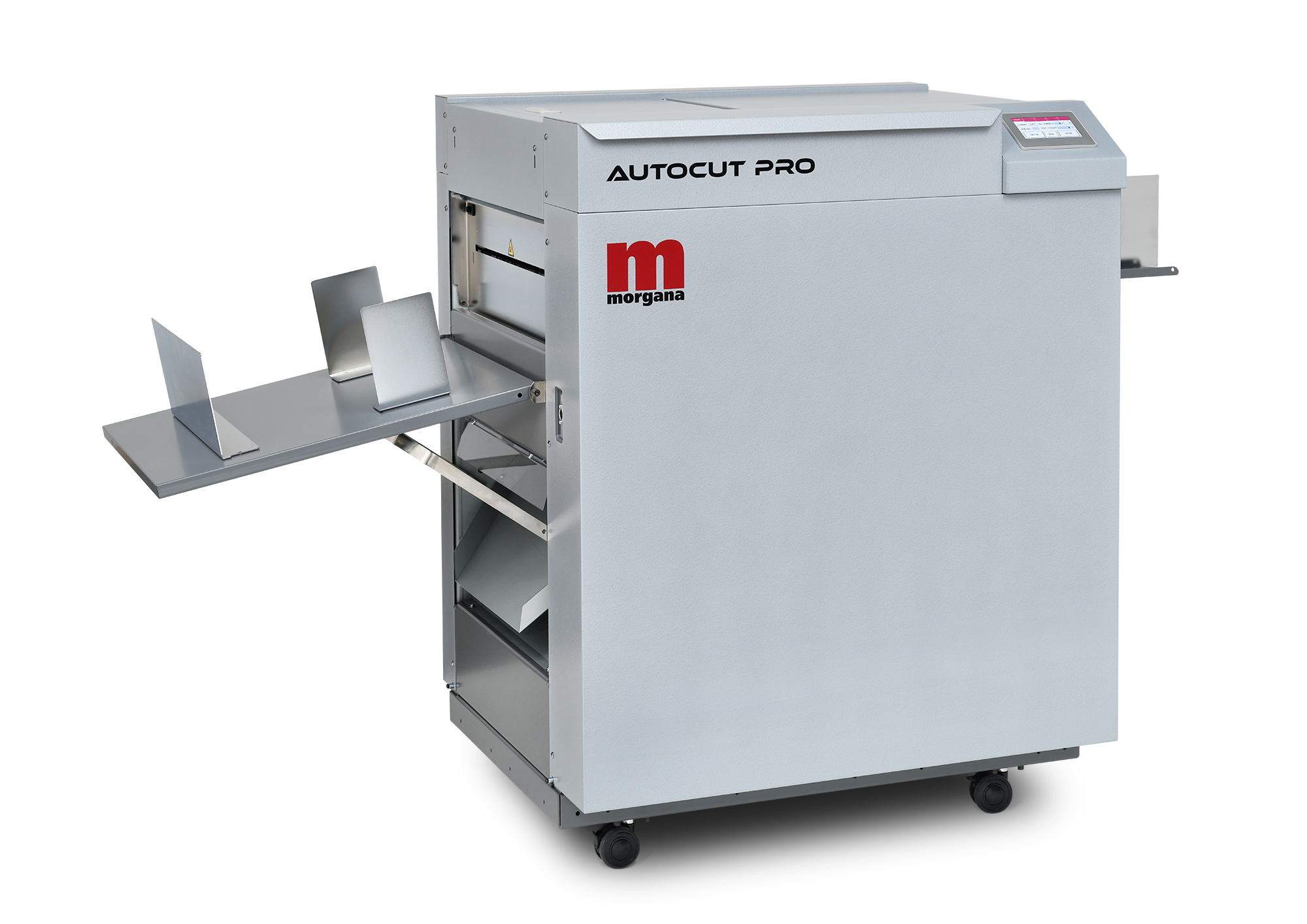

Morgana AutoCut Pro

The AutoCut Pro is the latest in the range of Morgana card cutting and creasing devices. Designed for those busy digital print shops and CRD’s who have the need for high speed creasing and for the production of a wide range of finished applications including business cards and promotional products. If you are looking to make the printed page stand out in new ways and if you’re using a wider range of media and working with new, larger formats then the AutoCut Pro combined with Morgana’s AutoFold Pro module easily turns long sheets into beautifully finished six panel brochures. The AutoCut Pro’s unique capabilities enables you to cut the lead and trail edges, bleed trimming the top and bottom, creasing and when linked to the AutoFold, the ability to fold the finished documents.

The Plockmatic MPS (Multi Purpose Stacker), the Morgana AutoCut Pro and the AutoFold work together to create today’s on-demand applications, such as trifold and gatefold brochures as well as more traditional applications like postcards and business cards printed multi-up on larger sheets.

• Max sheet size: 13” x 19” or 13” x 27.5” with optional long sheet kit
• 8 x 13” x 19” sheets per minute (24 up business cards)
• 32lb bond - 130lb cover • 150 job recall
• Up to 5000 letter sheets per hour when creasing
• 4” Touchscreen operation
• Skew Adjustment
• Slide Aligner
• Double feed detection

AUTOCUT PRO

• Basic function: Slit, Cross Cut, Crease
• High Speed: Crease only mode
• Maximum paper size: 13”(W) x 19”(L) or 13”(W) x 27.5”(L) with optional long sheet kit
• Minimum paper size: 8.2”(W) x 8.2”(L)
• Minimum finished work size: 3.3”(W) x 1.9”(L) Paper weight 32lb bond - 130lb cover
• Operation: 4” touch screen
• Job memories: Preset job / customized job
• Feeding mechanism: Upper belt tri-suction feed system
• Skew adjustment: Standard
• Side Aligner: Standard
• Double feed detection: Standard
• Cut mark registration: Standard
• Max pile height: 4”
• Speed: 24 up business cards (13”x19”) 8 sheets / min.
• Cutting tolerance: +/- 0.007 - 0.011”
• Dimensions (approx):  W33” x D31”x H43” Footprint (approx) W63” x D31” x H43”
• NET Weight (approx): 440lbs
• Power supply: 100-220 VAC

AUTOFOLD PRO

• Maximum sheet size: 35.4” x 19.6”
• Minimum sheet size: 8.2” x 5.5”
• Maximum paper thickness: 0.015” (approx 150lb cover)* including laminated material
• Minimum paper thickness: 0.004” (approx 20lb bond)*
• Maximum number of folds per sheet: 2
• Maximum number programmed applications: Unlimited alpha numeric
• Minimum repeat fold distance: 2.75” (depending on paper weight)
• Minimum fold distance from lead edge: 1.96”
• Minimum fold distance from tail edge: 1.96”
• Speed per hour (A4 in half): 6240 sph
• Dimensions: L 66.9” x W 26.7” x H 48”
• Weight: 282lb
• Power requirement: 115v 50/60hz
• Options: Long Conveyor
