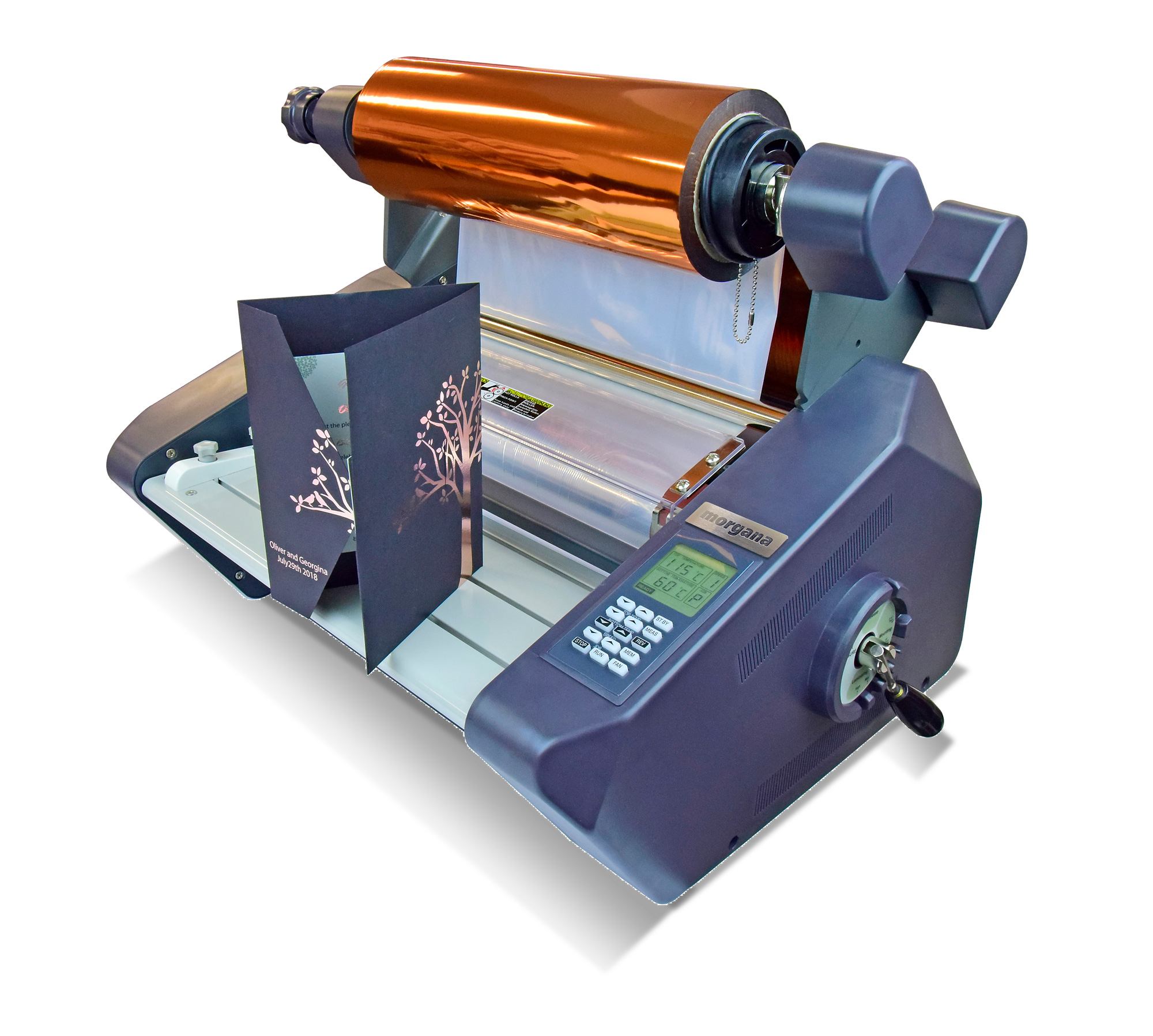

Morgana CF350 ColorFlare Foiling and Laminating System

GM-MSY-CF350

Ea. (1)
Foiling, lamination and flaring effects are possible with this single desktop solution. Offering class-leading affordability, CF350 uses 3″ (77mm) core rolls providing a more cost effective production solution. This simple in-house process requires no expensive blocks or dies.

• Handles media up to 13″ wide
• Easy continuous feed
• Adjustable pressures for different applications
POA

Description

Description

Easily add stunning metallic and colored foils, or lamination including matt, gloss and digitally over-printable soft-touch, as well as a wonderful range of holographic effects – Transforming ordinary printed sheets into ‘extra-ordinary’ premium print work.

Foiling, lamination and flaring effects are possible with this single desktop solution. Offering class-leading affordability, CF350 uses 3″ (77mm) core rolls providing a more cost effective production solution. This simple in-house process requires no expensive blocks or dies.

Typical applications include

  • Packaging
  • Presentation folders
  • Business cards
  • Certificates
  • Menus
  • Book covers
  • Wedding stationery
  • Labels
  • Swing tickets
  • Point-of-sale
  • Photo albums
  • Gift vouchers
  • Posters
  • Gift boxes

Key Features

  • Ideal entry level machine for: – gloss & matt lamination – over-printable soft touch lamination – metallic & coloured foiling – holographic effect films
  • Handles media up to 13″ wide
  • Easy continuous feed
  • Adjustable pressures for different applications
  • Tension control
  • De-curling bar for flatter sheets
  • Heated top and bottom rollers designed to apply overall heat to substrates – avoids silvering of laminates
  • Auto stop function to save foil waste
  • Cutting knife for end of job trimming
  • Air cooling offers a wider media range
  • Quiet operation
  • 220~240V power supply

Specifications

Specifications

Laminating speed: 4.26'/min
Base substrate thickness: Lamination: (80gsm to 350gsm)
Foiling: (120gsm to 350gsm)
Maximum sheet size: 13" x 19.7"
Minimum sheet size: 7" x 9"
Warm-up time: 5 minutes
Heating System: Infrared heater
Laminating temperature: Top roller: maximum 302°F
Bottom roller: maximum 212°F (100°C)
Temperature control: Control panel push button
Speed Control: Control panel push button
Display system: LCD display
Roller pressure: Adjustable manual handle
Film core size: 3"
Air cooling system: Dual fan system
Temperature sensing method: Internal thermo-couple
Rear trimming knife: Blade for end of job trimming
Power requirement: (AC 220~240V, 50/60Hz, 7A)
Power consumption: (1.5kw)
