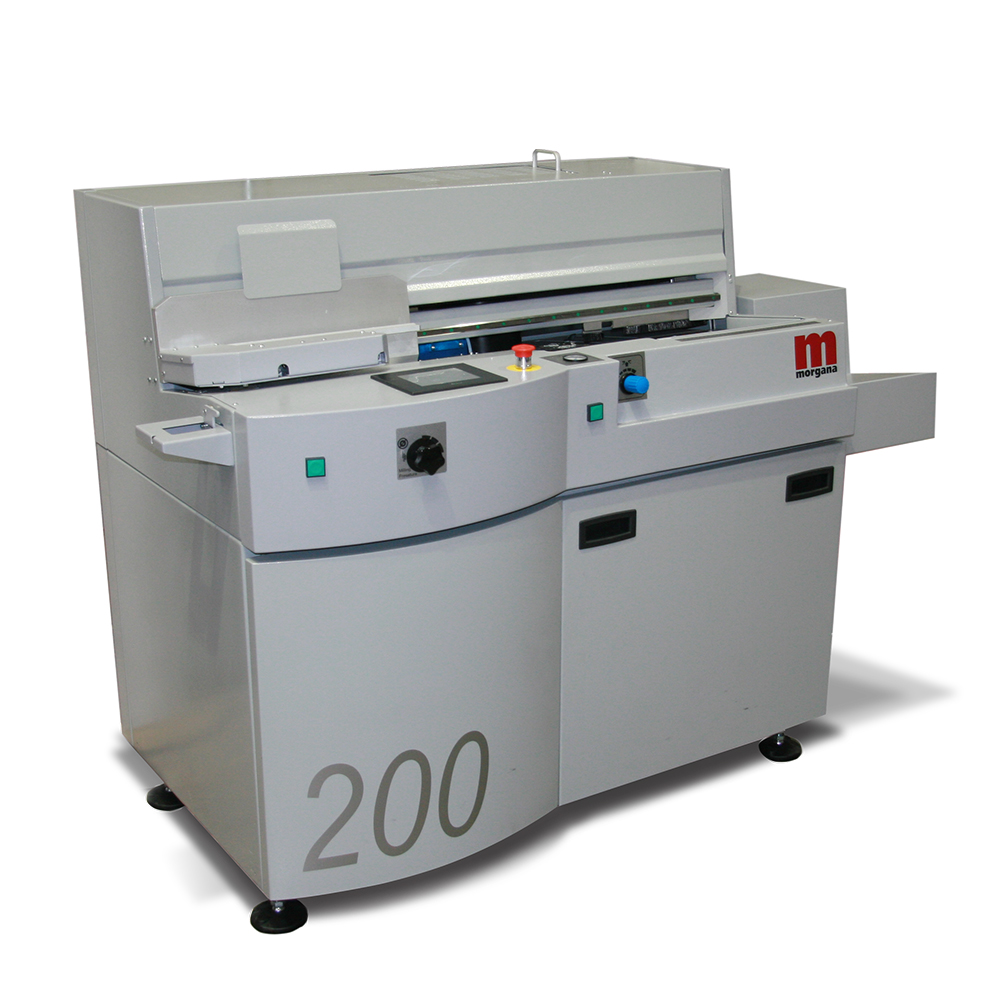

Morgana DigiBook 200 PUR Perfect Binder

GM-MSY-DIGIBOOK200

Ea. (1)

The DigiBook 200 perfect binder is suited for traditional and digital printers who require short to medium runs of PUR perfect bound books. DigiBook 200 is the perfect binding machine for the utmost binding quality and accuracy.

• Up to 200 books per hour
• Touch screen operation with automatic set up
• Binding length (spine) from 4.3” up to 14.9”
• Spine thickness from 0.07” to 1.96”
POA

Description

Description

The DigiBook 200 perfect binder is suited for traditional and digital printers who require short to medium runs of PUR perfect bound books. The DigiBook 200 perfect binding machine is equipped with a patented closed gluing system where spine and side gluing is automatically applied by a slot applicator for the utmost binding quality and accuracy.

  • Up to 200 books per hour
  • Touch screen operation with automatic set up
  • Sophisticated milling and notching device, designed for PUR
  • Automatic cleaning and sealing of the glue head
  • Binding length (spine) from 4.34” up to 15”
  • Spine thickness from 1.97”
  • Adjustable spine preparation by sophisticated milling and notching device
  • Paper chip extractor
  • Patented hermetically sealed PUR application system for a spine and side gluing with automatic glue cut-off
  • Automatic cleaning and sealing of the glue head
  • Electronic connection to Morgana Autocreaser Pro for cover creasing



Specifications

Specifications

Books per hour: Up to 200

Number of clamps: 1

Touch screen: Yes

Spine length: max/min 14.9”/12.6”

Book height: max/min 4.7”/4.3”

Block/spine: thickness 0.07” – 2.0”

Cover dimension: maximum 27.5” x 14.9”

Cover dimension: minimum 8.7” x 4.7”

Cover weight: max 400gsm

Dimensions: L 69.6” x W 35.4” x H 50”

PUR glue tank capacity: Up to 6lb

Machine weight: 552lb.3oz

Power requirement: 208 - 240V 50/60Hz 16amp
