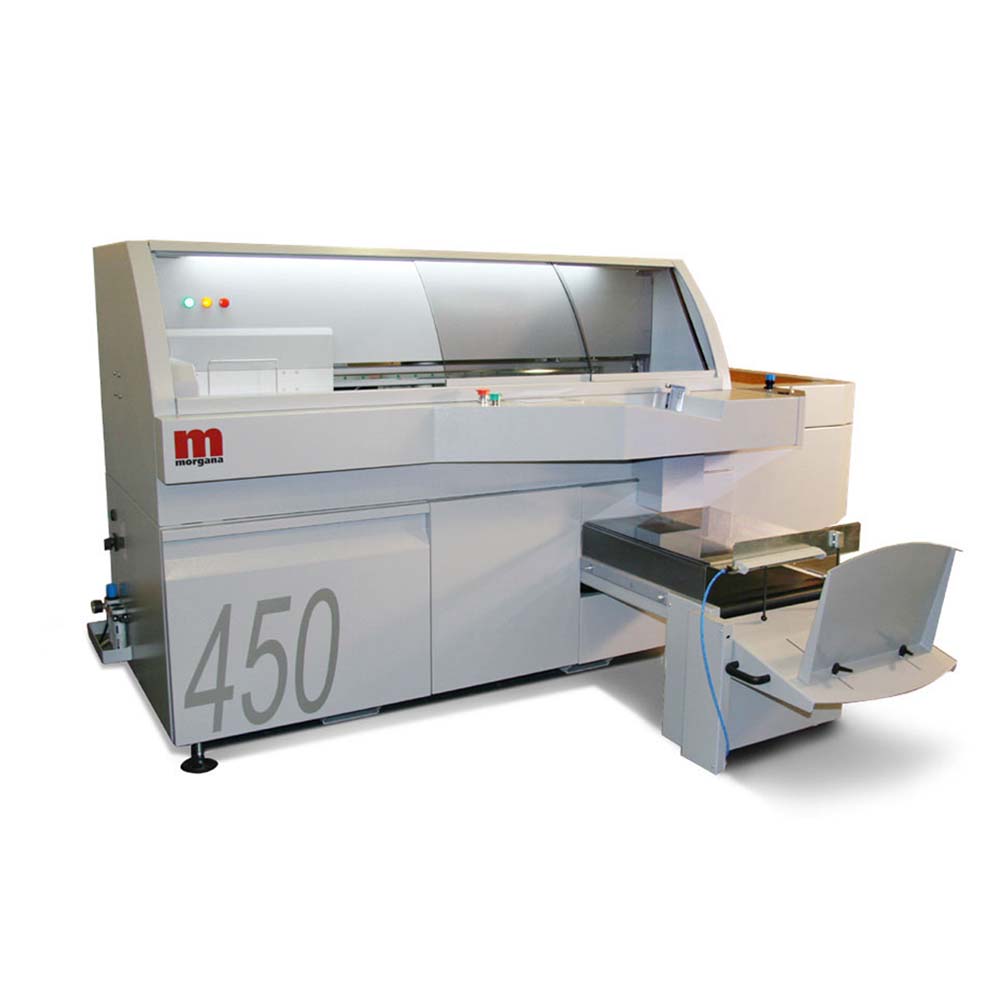

Morgana DigiBook 450 PUR Perfect Binder

The DigiBook 450 is our most fully automated PUR binder with automatic cover feeder and scoring of the covers, along with automated book delivery and stacking. Designed to maintain high output speeds and reduce operators handling of covers and bound finished books. Includes retractable milling systems allowing for the production of sewn book sections. This innovative machine is equipped with a patented closed gluing system where the spine and side gluing is applied by a slot applicator for the utmost bringing quality and accuracy.

The nipping press is a pneumatic system with adjustable lateral pressing force. Pressing time is also adjustable from the panel. The press height varies from 0 to 1.5 mm for optimal squaring of the spine and quality of glue application. In addition to the automatic cover feeder, the DigiBook 450 is also equipped with an automatic book delivery and stacking section to maintain output speeds and reduce handling of the bound books.

•  Equipped with an automatic book delivery and stacking section to maintain output speeds
•  450 books per hour
•  Touch screen operation complete with automatic format change
•  Pneumatic opening and closing of clamp
•  Binding length (spine) from 3.93” up to 17.71”•  Spine thickness from 0.07” to 1.96”
•  Spine preparation by sophisticated milling device
•  Automatic cleaning and sealing of the glue head
•  Retractable milling
•  Patented hermetically sealed PUR application system for spine and side gluing with automatic glue cut-off
•  Automatic cover feeder
•  Automatic delivery and stacking of finished books
•  Automatic book block measuring and set-up

Books per hour: 450

Number of clamps:1

Touch screen: Yes

Spine length: max/min 17.71”/3.93” B

Book height: max/min 12.59”/4.72”

Milling width: 0.118”

Book/spine thickness: 0.07” - 1.96”

Cover dimension max: 27.60” x 17.71”

Cover dimension min: 9.52” x 4.72”

Cover weight max: 400gsm

Dimensions: L 101.8” x W 82.3” x H 54”

PUR glue tank capacity: Up to 6lb

Machine weight: 1157lb.6oz

Power requirement: 16amp, 3 phase, + E + N, 400v
