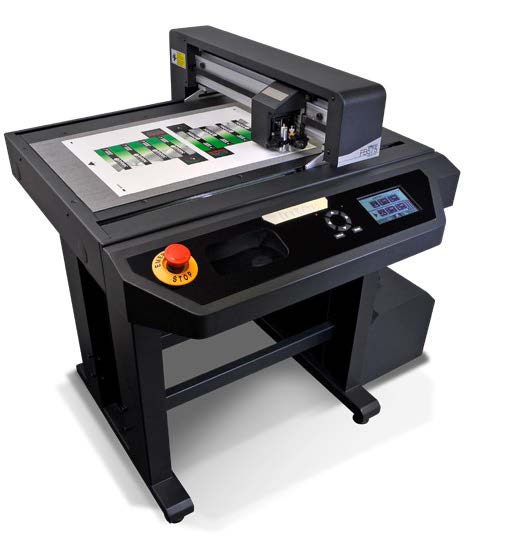

Morgana Intec ColorCut FB575 Digital Cutting System

GM-MSY-FB575_220

Ea. (1)
The Morgana ColorCut FB575 Digital Cutting System is an affordable SRA3 cutting & creasing table ideal for small commercial printers, graphic design, media and marketing companies. Also, a solution for in-plants seeking to cut and crease on SRA3 or up to 350 x 488mm sheets for on demand applications, produce one-offs or boxes for prototypes, packaging, greetings cards – also suitable for kiss-cut label sheets.

• No dies required – cut and crease any shape on demand
• Cuts card and films up to 450gsm / 600 micron
• Dual-tool head for same time cutting and creasing
US$4,999.00

Description

Description

The Morgana ColorCut FB575 Digital Cutting System is an affordable SRA3 cutting & creasing table ideal for small commercial printers, graphic design, media and marketing companies. Also, a solution for in-plants seeking to cut and crease on SRA3 or up to 350 x 488mm sheets for on demand applications, produce one-offs or boxes for prototypes, packaging, greetings cards – also suitable for kiss-cut label sheets.

The Morgana ColorCut FB575 Digital Cutting System’s dual tool head, includes an adjustable cutting tool which accepts a range of blades for different media types
The Morgana ColorCut FB575 Digital Cutting System has a flatbed cutter holding sheets in position using vacuum bed. The dual tool head includes an adjustable cutting tool which accepts a range of blades for different media types for clean, full cutting of any shape on card, or half cut on labels (kiss-cut). In addition to cutting, creasing is delivered with the included double-ended creasing tool. Add the optional silencer for a whisper quiet working environment.

The ColorCut software also enables the system to perforate too.  An IR optical sensor ensures accurate registration using 6th generation ARMS technology.

Job Bar-coding for cut file recognition, retrieval from job library and registration ensures that the right cutting path artwork is used for the individual printed sheet.

  • No dies required – cut and crease any shape on demand
  • Cuts card and films up to 450gsm / 600 micron
  • Dual-tool head for same time cutting and creasing
  • High productivity with cutting speeds up to 1 linear metre in 1.4 seconds!
  • Optical Sensor driven to accurately follow vector cut/crease lines drawn in Adobe® Illustrator® & CorelDRAW®
  • Vacuum suction media hold down table for even the smallest of items
  • Complete with dedicated ColorCut Pro cutting & creasing software

Specifications

Specifications

Working Area (max): 12.99" x 19.21"
Width: 35.43"
Depth: 24.25"
Height: 40.15"
Weight: 152"
Max Speed: 23.62" per second
Power Supply: AC 110-220V 50/60Hz, 0.5A
Connectivity: USB (1 connection to PC is required)
Data Buffer: External PC
Tooling: Twin head (1 x cutter 1 x creaser)
