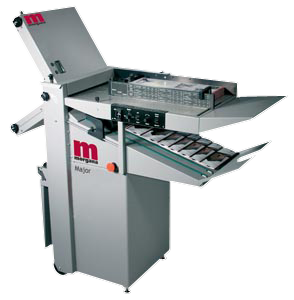

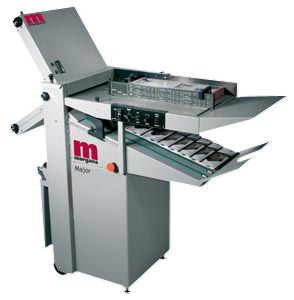

Morgana Major Paper Folder

GM-MSY-MAJOR

Ea. (1)


Presenting the Morgana Major—a compact and user-friendly machine that boasts a wide range of 'big machine' features. Switching between sizes or different fold types is a breeze and can be done within seconds.

• Powerful suction feeder handles a wide range of paper weights
• Low pressure suction chamber to control curled paper before it enters the fold rollers
• Double sheet, anti jam detector
POA

Description

Description

The Morgana Major is designed to offer a wide range of 'big machine' features within a compact and user-friendly design. Switching between sizes or different folds can be done in seconds. The Morgana Major includes counting and batching, with perforating and scoring as standard in the UK and optional elsewhere.

Several unique features ensure the Morgana Major can handle output from both digital processes and litho printing. Like all Morgana products, the Major delivers unmatched performance and value.

The fold rollers are extremely durable and can handle a wide variety of stock without adjustment. Unaffected by paper dust, their unique composite material grips high gloss papers or work from digital print engines effectively.

The Dial-a-Fold plate settings allow all adjustments to be made without removing the covers. An LED display, accurate to 0.1mm, shows the fold plate position and enables easy and accurate repeat job settings.

  • Powerful suction feeder handles a wide range of paper weights
  • Side lay alignment of the sheets, prior to folding
  • Low pressure suction chamber to control curled paper before it enters the fold rollers
  • Fully enclosed fold plates with ‘dial-a-fold’ and LED display, fitted with anti-static brushes, skew and micro adjustments
  • Plug in perforating and scoring attachment
  • Variable speed
  • Tray to catch work when perforating or scoring
  • Long delivery belt stacker
  • Counting & batching
  • Double sheet, anti jam detector



The diverse printing processes available today can impact paper characteristics, leading to curled or easily marked material. Additionally, run lengths can range from short to very long. The Morgana Major is equipped to handle both scenarios.

When purchasing any equipment, running costs, maintenance expenses, and residual values are crucial considerations. The Morgana Major is designed to meet these criteria.

For instance, the fold rollers are extremely durable and housed in a single patented pull-out cassette. When replacement is necessary, non-skilled personnel can complete it in less than five minutes.

The Major fold-plate features ‘dial-a-fold,’ allowing all adjustments to be made without removing the covers. An LED display, accurate to 0.1mm, shows the fold plate position, enabling easy and precise repeat job settings.

Specifications

Specifications

Max sheet size: 25.5" x 14.3"
Min sheet size: 5.8" x 5.5"
Max paper weight: 90lb cover
Min paper weight: 16lb bond
Load capacity: 22lb bond
Max programmed applications: 6
Speed per hour: 0 to 27,000
Dimensions: L45.9" x W19.4"
Power Requirement: 240v 50/60hz
