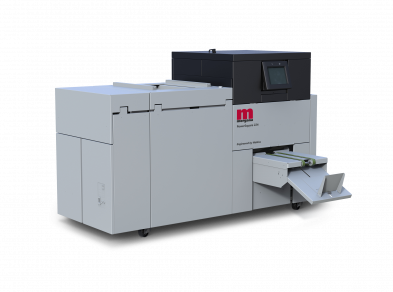

Morgana PowerSquare 224VF

The NEW PowerSquare™ 224VF with its high capacity dual bin feeder offers a flexible solution for a wide range of booklet types and sizes. The system is fed by the VF vacuum assisted feeder which has a loading capacity of up to 540mm, giving long uninterrupted production runs. Pre-collated sets can be placed into both bins for longer runs, or covers can be placed into one of the bins when they need to be merged with collated sets. The feeder can also be loaded on the run with automatic bin switching.

With an ever increasing demand for high quality booklets on a wider range of media the PowerSquareTM 224 and 224VF will deliver booklets produced with the unique SquareBackTM finish to the spine. The proven SquareBackTM process produces a superior quality finish. The automatic set thickness sensing ensures optimum book quality to deliver professionally finished booklets for you and your customer.

SquareBack books can carry print on the spine, just like a perfect bound book and are much easier to handle, stack and pack.

The Power SquareTM224 and 224VF can produce a wide range of formats including A6, A5 / 4.1” x 5.8”, 8.5”×5.5”,  and A4 / 8.5”×11”. Booklets of up to 224 pages of 70gsm 20lb bond, or up to a thickness of 10.4mm / 0.4” can easily be produced, replacing the need for perfect binding of many publications.

•  Makes books from 4 – 224 pagesFast and cost-effective alternative to perfect binding or tape binding
•  Produces high quality SquareBack™ Books
•  Inserts 1-6 stitches
•  Small footprint
•  Low power requirements
•  Can carry print on the spine
•  Static stitching head
•  Little to no operator intervention required
•  Optional P2T Full Bleed Trimming module

PowerSquare 224

• Paper Size: Minimum 4.7” x 7.8” to maximum 14.5” x 20.4”
• Stock Range: 16lb bond - 148lb bond dependent on paper type and quality
• Book thickness: Minimum set thickness - 1 sheet 16lb (when folded makes an 4 page leaflet)
• Book thickness: Maximum finished book thickness - 0.3” (approx 160 pages 21lb bond)
• Maximum set thickness: 0.15” (approx 40 sheets 21lb bond)
• Stitching: 2 low impact staple heads with moving clinchers
• Stitching: Auto-adjusting staple pitch according to sheet size, range 4”- 6”.
• Book Stacker: Stack up to 36.5’’

PowerSquare 224VF

• Paper Size: Minimum 7.8” x 8.2” to maximum 13.7” x 19.6”
• Stock Range: 16lb bond - 148lb bond dependent on paper type and quality
• Book thickness: Minimum set thickness - 1 sheet 21lb bond (when folded makes an 4 page leaflet)
• Book thickness: Maximum finished book thickness - 0.4” (approx 208 pages 21lb bond, 224 pages 70gsm)
• Maximum set thickness: 0.2” (approx 52 sheets 21lb bond, 56 sheets 70gsm)
• Stitching: Single heavy duty stitch head 1 - 6 stitches, evenly spaced on the spine of the book
• Stitching: Stitches/spool up to 291,500 Books*/spool approx 127,000
• No. of bins: 2
• Book Stacker: Stack up to 36.5’’
