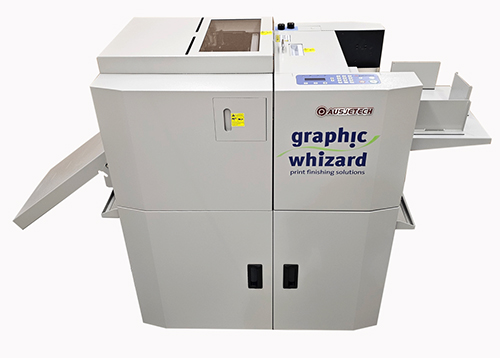

GW PT33LSC CR Automated Laminator w/Corner Round

GM-GWH-PT33LSCCR

Ea. (1)


Laminate, slit and cut with the GW PT 33LSC CR. The PT 33LSC CR not only cuts to bleed for a finished product, but also offers a variable size encapsulation mode with corner rounding.

• Slits and cuts to size
• Film choices of gloss, matte, soft touch and more
• Pouch mode with variable encapsulation size
• Inline corner rounding
POA

Description

Description

Introducing a revolutionary innovation for digital short-run printing: the PT 33LSC CR. This machine not only delivers precision cuts to bleed for a professional finish but also features a variable-size encapsulation mode with corner rounding. You can program it for 2-sided pouch lamination with customizable borders and corner rounding. Alternatively, you can opt for a flush cut to bleed with or without the inline automatic corner rounding.

The PT 33LSC CR stands out with the highest film yield, maintaining only a 1/8” gap between sheets. With automatic setup, high-speed productivity, and an efficient 2” vacuum pile feeder, it ensures a seamless 'set it and forget it' laminating experience.

• Slits and cuts to size
• Film choices of gloss, matte, soft touch and more
• Pouch mode with variable encapsulation size
• Inline corner rounding
• Automatic setup and program memory
• 2" vacuum pile feeder
• Variable speeds



Specifications

Specifications

Electrical 110v, 60Hz, 15A
Floor Model Yes
Minimum Sheet Size 7” x 7” (17.78 cm x 17.78 cm)
Maximum Sheet Size 13″ x 19.7″ (33.02 cm x 50.038 cm)
Paper Thickness 100-350 gsm
Lamination Thickness 1.5, 3 & 5 mil*
Laminating Width 4.4” – 12.9” (11.176 cm – 32.766 cm)* custom widths available
Laminating Modes Double-sided encapsulation or trim to bleed
Cutting Method 2 automatic set-up side slitters and 1 guillotine cutter assembly
Corner Rounding 5 mm radius
Speed Variable speeds up to 10 feet per minute
Feeding Method 2″ (5.08 cm) vacuum pile feeder
Machine Weight 595lbs (270kg)
Machine Dimensions 64.9” x 24.4” x 43.3” (165cm x 62cm x110cm)

*Film weight compatibility varies with laminating mode.
NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.
WARRANTY: 1 year warranty* (* excludes consumables)
