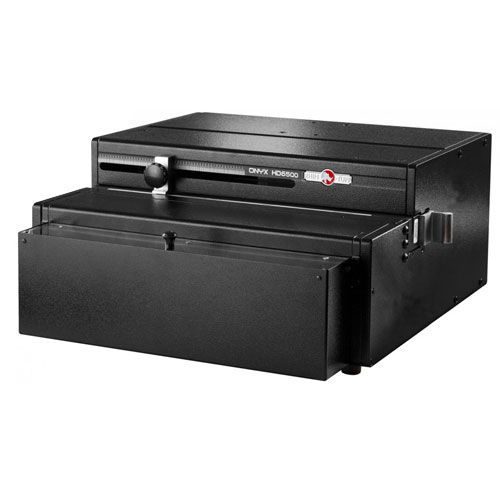

Rhin-O-Tuff ONYX HD 6500 Heavy Duty Punch

GM-PDI-HD6500ONYX

Ea. (1)

The HD6500 is designed for the customer who may change dies less often. It offers quick, easy set-up: easy pin pulls and pre set stop positions. This Rhin-O-Tuff HD6500 Onyx Heavy Duty Punch is ideal for mid to high volume commercial and corporate use.

• 14” (356 mm) open ended extra capacity die
• Punch capacity: 40 sheets or 80 pages, 20 lb. bond paper
• Disengageable dies
• 3 year manufacturer warranty
POA

Description

Description

The HD6500 is a 14 inch (356 mm) open-ended punch that features the 2-bolt EZ Change Slide out die system for changing punch patterns in 60 seconds. The HD6500 was designed with the operator in mind, offering quick, easy set-up including easy pin pulls and pre-set paper stop positions. With a three year limited warranty, this is truly the industry standard. Rated up to 40 sheets or up to 80 pages of 20 pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used. Designed for mid to high volume commercial and corporate use.

  • Patented Auto Reverse Feature. Our Overload Detection Feature triggers an auto-reversing function to reduce jamming in the punch.
  • 2-Bolt EZ Change Die System.
  • The HD6500 Has More Than 20 Interchangeable Dies Available.
  • 12 Hole Patterns are standard. (Each die is priced separately).
  • Combs Wire Loop Plastic Coils Velo Bind™ GBC 3 Hole Loose Leaf 25 Cycles Per Minute.
  • Pre-set Paper Stop Guide for easy setup.
  • 14 inch (356 mm) Open Ended Punching, allows for Wider Applications.
  • All Punch Pins easily disengaged.
  • Easy, “Paper to Pin,” sight alignment, for balanced hole to edge margins on odd-sized applications.
  • Standard Foot Pedal, optional Versa Switch, or Palm Switch.
  • 3 Year Warranty.
  • Smooth, Quiet, Power on Demand Operations.
  • Large EZ View Chip Tray.
  • All Metal Fabrication.
  • Large EZ View Chip Tray.
  • All Metal Fabrication
  • Light-to-medium production
  • Designed and manufactured in the USA
  • Perfect for office, digital, or commercial production.

Specifications

Specifications

Electrical Requirements

Volts AC: 115(230)

AMPS: 4 (2)

Hz: 60 (50)

Weight

Machine: 70 lbs.(32 Kg)

Shipping: 81 lbs.(37 Kg)

Assembled Dimensions

Height: 9" (229 mm)

Width: 17" (432 mm)

Depth: 20" (508 mm)

Actual Machine Dimensions

9" x17" x20"

Actual Machine Weight

70

Shipping Length

27

Shipping Width

25

Shipping Height

14

Shipping (Web) Weight

82 lbs

Punch length

14-inch open-end punch

Capacity

30-40 Sheets of 20lb copy paper

Interchangeable dies

Coil, wire, comb, 3-hole

Warranty

3 years, limited
