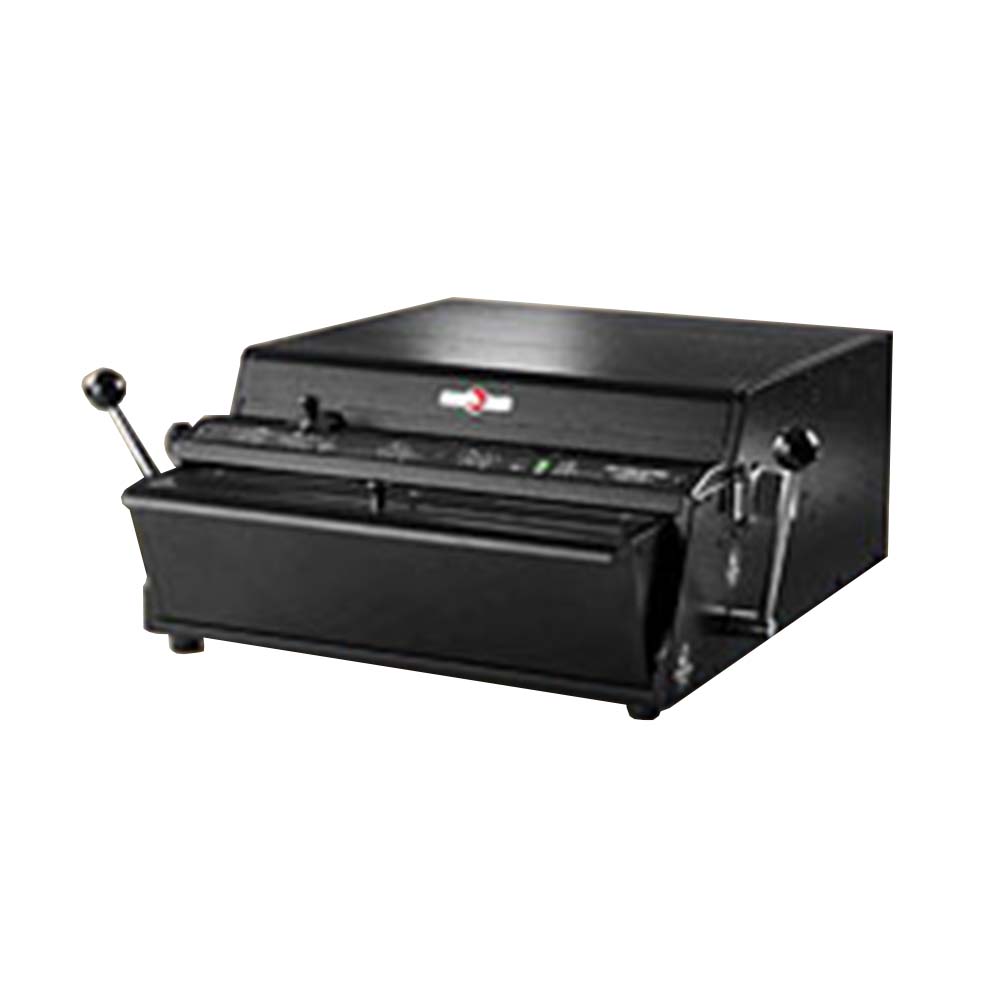

Rhin-O-Tuff ONYX HD 7725 Ultima Heavy Duty Punch

The Onyx HD7725 Ultima is the top of the line heavy duty durable Table Top Punch that has no equal. Combining the Rhin-O-Tuff patented Quick Change Die System with the following exciting features:

• 14” (356 mm) open ended extra capacity die: Punch up to 55 sheets or 110 pages of 11 inch, 20 pound (80gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used.
• U-View waste tray: Holds up to 150% more waste than any other table top punch & eliminates troublesome overfills.
• The Accu-Set Paper Stop: Set-up all hole placements easily & accurately, even on odd sized paper.

Vastly Upgraded Gearbox and drive train system make this punch virtually indestructible!

Built in Automatic and Manual Reverse: Providing extra insurance to reduce costly down time & expensive
service calls due to overload jams.

With these features plus a 6 year mechanical warranty along with all of the standard features below, the HD7725 Ultima
will handle any size project, large or small. Designed for high volume commercial and corporate use.

• Patented Auto Reverse Feature. Our new Overload Detection Feature triggers an auto reversing function to reduce jamming in the punch.
• Rated up to 55 sheets or 110 pages of 20 pound (80 gsm) paper. The number of sheets depends on the paper weight and punch pattern used.
• 65 punch cycles per minute.
• Punch up to 5 plastic Mylar sheets regardless of hole pattern (depending on Mylar mil thickness).
• Patented “QCDS”, Quick Change Die System. All punch pins easily disengage.
• “Accu-Set” paper adjustment knob for fine adjustments on odd paper sizes.
• Smooth, Quiet, Power on Demand Operation.
• Standard Foot Pedal & Palm Switch, optional Versa Switch.
• The HD7725 has more than 20 interchangeable dies available with 12 standard hole patterns. (Each die is priced separately).
  • Comb
  • Wire Loop
  • Plastic Coil
  • Velo Bind™ GBC
  • 3 Hole Loose Leaf
• Extremely durable all metal construction.
• Extra high capacity Waste Chip Tray with Clear View Access. No sensors needed.

Punching Method: Electric
Punching Format: Vertical
Max Punch Capacity: 55 Sheets of 20 lb. paper
Max Binding Edge: 14"
Disengageable Dies: Yes
Operation: Foot Pedal or Palm Switch
Dimensions: 21" W x 22.5" D x 8.5" H
Shipping Weight: 103 lbs.(46.3 kgs)
