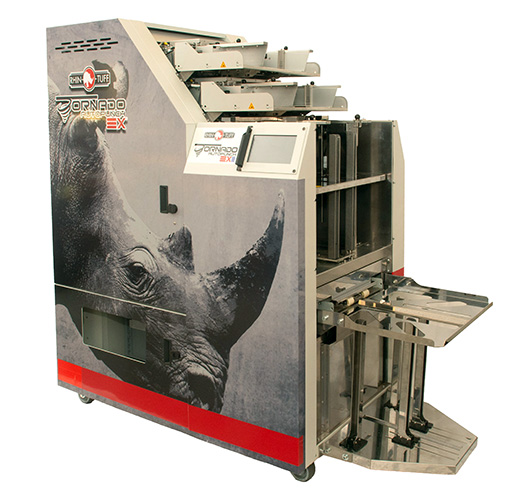

Rhin-O-Tuff Tornado Autopunch EX Machine

GM-PDI-TEX110

Ea. (1)

The system will save binding service providers an average of 40% in process efficiency, dramatically reducing overall costs. Handling the widest range of media, the system delivers unparalleled flexibility and enables concurrent binding operations.

Eliminate 4 manual steps:
• Collation of covers, index tabs and inserts
• Punching of covers, index tabs or inserts
• Paper lift punching
• Separation of book stacks after punching

Other:
• No color slip-sheets by book/section required
• 7” Screen Display
• Punching Speed: Up to 10,800 sph
• Perfect for short-run, on-demand jobs
• Easy programmable job set-up
POA

Description

Description

  • World’s First Automated Collating Punch: A single near-line automated collation and punching platform to meet the needs of your on-demand print environment with a quick return on investment.
  • Advanced Media Handling Technology: Powered by BDT’s patented Tornado Technology to separate, lift, and transport the widest range of media, including printed media and other book components like covers, tabs, and inserts reliably minimizing downtime.
  • Automated Interposing of Covers/Index Tabs/Inserts: Interposer Bins holds book media, auto-collating front/back covers, inserts and index tabs into the book stack during punching. No manual collation required. Machine can also be run in collate-only mode.
  • Paper Accumulation Technology: Designed to accumulate covers, tabs, and document sheets and auto-adjust the punch lifts depending on the type of media being run for maximum punching performance.

Specifications

Specifications

TORNADO AUTOPUNCH EX SPECIFICATIONS

7" TOUCHSCREEN DISPLAY

7" (178MM) TOUCH FUNCTION COLOR DISPLAY.
JOB SET-UP & MONITORING: QUICK START MODE, PRESET MEDIA TYPES, JOB STATUS.
DISPLAYS PUNCH/DIE CYCLE COUNT AND CHIP BIN STATUS.

SHEET SIZES

PUNCHED EDGE: 8.27" (210MM) TO 12" (305MM)
UNPUNCHED EDGE: 5.5" (139.7MM) TO 12.5" (317.5MM)
INDEX TABS: UP TO 1/2" (12.7MM) TAB EXTENSION

MEDIA

60 - 312 GSM INCLUDING:
UNCOATED BOND PAPER, TEXT/OFFSET
COATED PAPER
PAPER, PLASTIC (ACETATE/PVC) & VINYL COVERS/TABS
*PLASTIC MEDIA MUST BE RUN FROM AN INTERPOSER BIND ONLY

INTERPOSER CAPACITY

UP TO 1" (25MM) OF COVERS/INDEX TABS/INSERT SHEETS

MAIN BIN CAPACITY

UP TO 2500 SHEETS OF 75GSM (20LB.) BOND

PUNCHING SPEED

UP TO 10,800 SHEETS PER HOUR!

INTERCHANGEABLE DIE SETS

LETTER (US) AND A4 (INTL) FORMATS IN 9 BINDING STYLES

OFFSET STACKER

UP TO 2700 SHEETS OF 75GSM (20LB.) BOND

WEIGHT DIMENSIONS VOLTAGE

APPROX. 700LBS (317.5 KGS) 29.5" (750MM) WIDTH | 50.3" (1279MM) DEPTH | 57.7 (1466MM) HEIGHT 230 VOLT 50 HZ

WARRANTY

1-YEAR LIMITED WARRANTY

DIE SET SPECIFICATIONS

DIE SET STYLES

19/21 HOLE PLASTIC COMB
4:1 COLOR COIL - ROUND AND OVERSIZED OVAL HOLE (.2475" OR 6MM)
3:1 TWIN LOOP WIRE - SQUARE AND ROUND HOLE
2:1 TWIN LOOP WIRE - SQUARE AND ROUND HOLE
11/12 HOLE VELOBIND
LOOSE-LEAF - 3-5-7 HOLE AND 2-HOLE MEDICAL (8.5" SIDE)
LOOSE-LEAF - A4 2-4 HOLE

RFID CHIP

DISPLAYS DIE SET TYPE IN LCD SCREEN
TRACKS/DISPLAYS # OF PUNCH CYCLES/DIE SET

DISENGAGEABLE PUNCH PINS

PINS PULL OUT FOR VARYING PAPER SIZES

STORAGE

INTEGRATED STORAGE FOR UP TO 4 EXTRA DIE SETS
